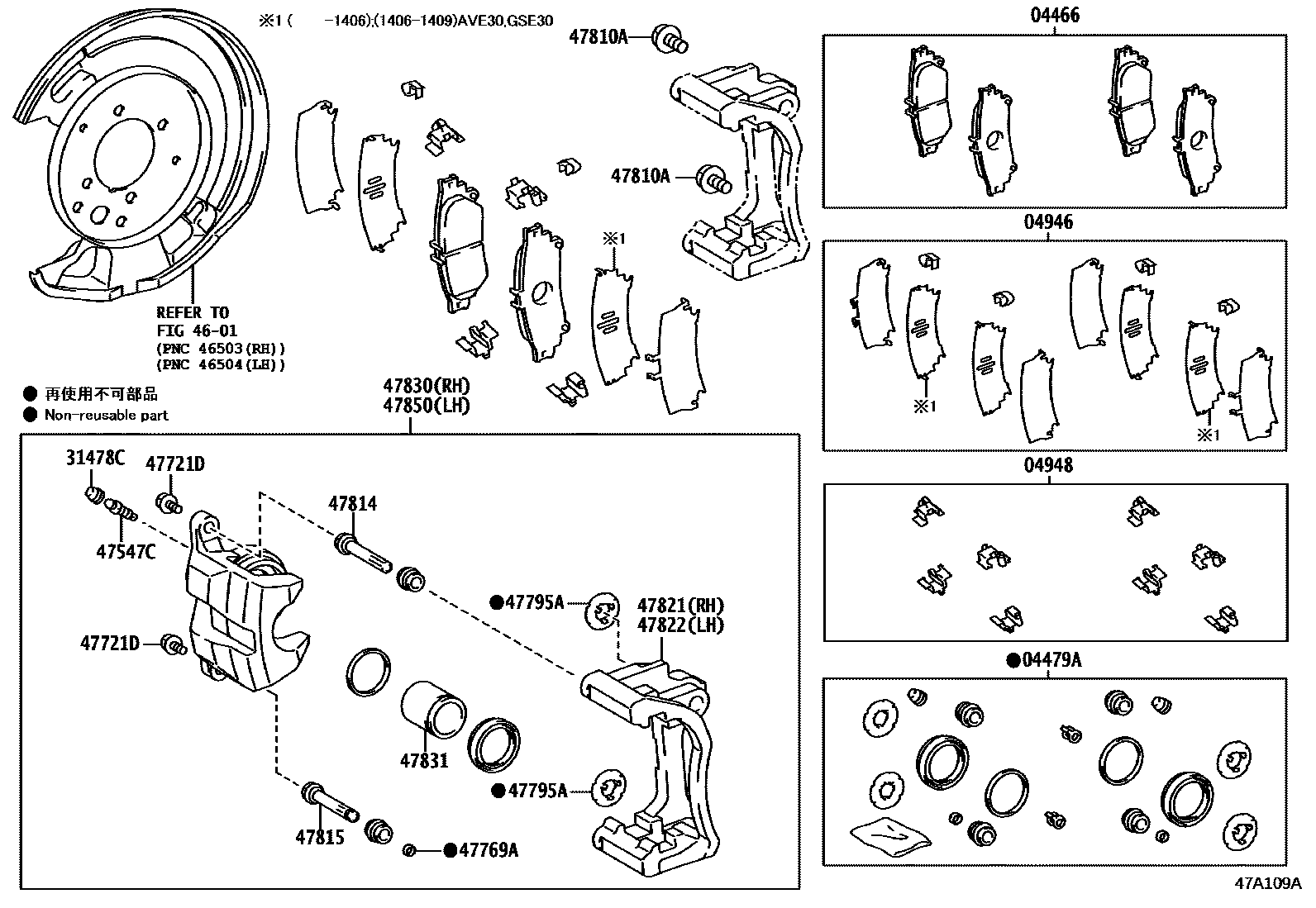

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-24030iASE30,GSE31..GCC202303

MARK NBK D6360

main04466-30280iAVE30,GSE30201304-201409

MARK AK NS542

sub04466-30281

main04466-30281iAVE30201409-201710

MARK AK NS542

sub04466-30282

main04466-30282iAVE30201710-202009

MARK AK NS542

main04466-30310iGSE31201304-201406

MARK AK NS542

sub04466-30311

main04466-30311iASE30,GSE31201406-201710

MARK AK NS542

sub04466-30312

main04466-30312iASE30,GSE31201710-202009

MARK AK NS542

main04466-30360iASE30,AVE30,GSE31..ARL,GEN202009-202206

MARK NBK D6361

sub04466-30400

main04466-30400iGSE31..GEN;ASE30,AVE30..ARL,GEN202206-202309

MARK NBK D6360

main04466-F4020iASE30,GSE31..GCC202009-202303

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30580iAVE30,GSE3#201304-202009

main04479-30610iASE30,AVE30,GSE31202009-202309

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30210iAVE30,GSE30201304-201409

main04946-30230iAVE30,GSE30201406-202009

main04946-30250iASE30,AVE30,GSE31..ARL,GEN202009-202206

sub04946-42060

main04946-30270iASE30,GSE31..GCC202009-202110

main04946-42060iGSE31..ARL202206-202309

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iASE30,AVE30,GSE31..ARL,GEN202009-202205

main04948-12071iASE30,GSE31..GCC202009-202110

main04948-30230iAVE30,GSE30201304-201405

main04948-30240iASE30,AVE30,GSE31201311-202009

main04948-52060iGSE31..ARL202206-202309

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGSE31..LHD;ASE30,AVE30202009-202309

main31478-50020iAVE30,GSE3#201304-202009

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGSE31..ARL201304-202309

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iASE30,AVE30,GSE31202009-202309

*8-1.00PX23-12.5

sub90016-AA614

main90105-08164iAVE30,GSE3#201304-202009

*8-1.00PX23-15

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iASE30,AVE30,GSE31202009-202206

main47879-33240iASE30,AVE30,GSE31201304-202009

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30350iAVE30,GSE3#201304-202206

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401iASE30,AVE30,GSE31201709-202309

main90119-12416iASE30,AVE30,GSE31201304-201708

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iAVE30,GSE3#201304-202009

main47814-78010iGSE31..ARL202009-202309

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iASE30,AVE30,GSE31201304-202009

main47815-78010iASE30,AVE30,GSE31202009-202309

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30350iASE30,GSE31201304-202009

main47821-30390iAVE30201304-202009

main47821-30460iASE30,AVE30,GSE31..ARL,GEN202009-202309

main47821-30470iASE30,GSE31..GCC202009-202110

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30350iASE30,GSE31201304-202009

main47822-30390iAVE30,GSE30201304-202009

main47822-30460iGSE31..GEN;ASE30,AVE30..ARL,GEN202009-202309

main47822-30470iASE30,GSE31..GCC202009-202110

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30350iGSE31201304-202009

main47830-30390iAVE30,GSE30201304-201409

sub47830-30391

main47830-30391iAVE30,GSE30201409-202009

main47830-30460iASE30,AVE30,GSE31..ARL,GEN202009-202309

main47830-30470iASE30,GSE31..GCC202009-202110

47831PISTON, REAR DISC BRAKE

main47831-30310iASE30,AVE30,GSE31201304-202009

main47831-30460iGSE31..ARL202111-202309

main47831-58030iASE30,AVE30,GSE31202009-202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30350iASE30,GSE31201304-202009

main47850-30390iAVE30,GSE30201304-201409

sub47850-30391

main47850-30391iAVE30201409-202009

main47850-30460iGSE31..ARL202009-202309

main47850-30470iASE30,GSE31..GCC202009-202110

18 parts on this diagram · 2 diagrams in section
