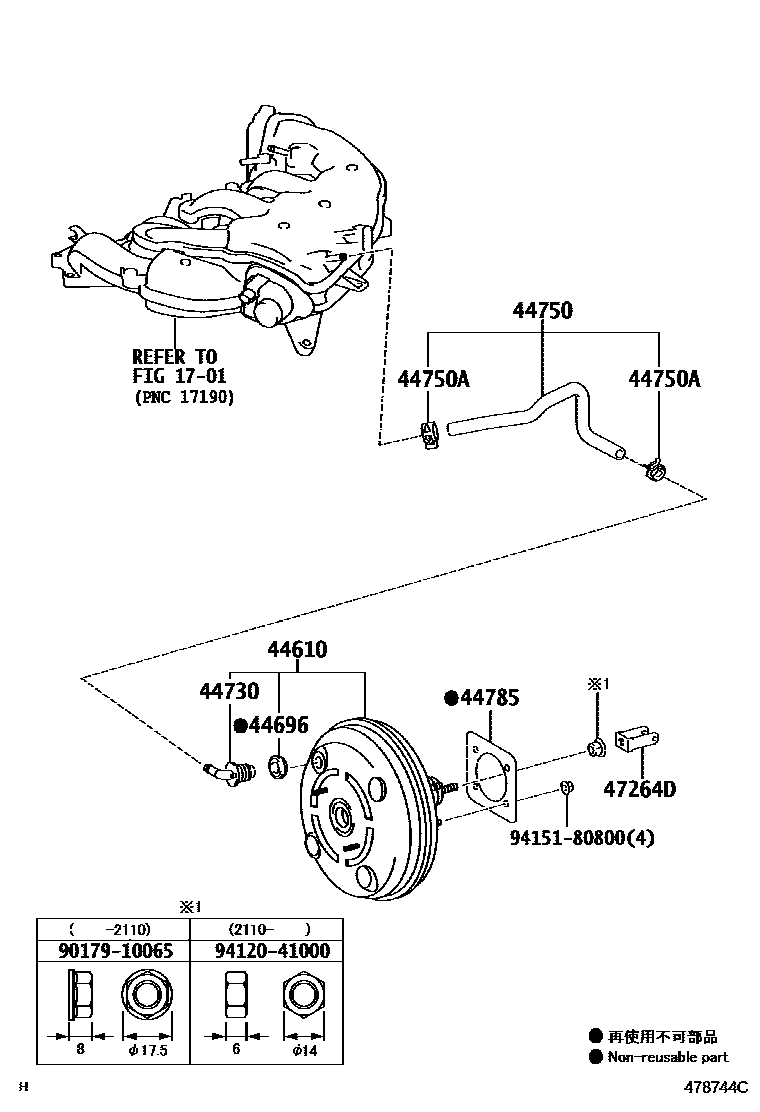

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24170iGSE31..ARL¥41,800201508-201710

main44610-24190iGSE31..GEN201508-201710

main44610-24210iGSE31..GCC201508-201710

PHILIPPINE SPEC&F SPORT

main44610-30C00iGSE30..ARL¥41,800201304-201508

main44610-53360iGSE30..GCC201304-201508

F SPORT

main44610-53360iGSE30..GCC201304-201508

TAIWAN SPEC&F SPORT

main44610-53370iGSE30..CHI,GEN201304-201508

main44610-53380iGSE31..GEN201304-201508

main44610-53400iGSE31..GEN201304-201508

PHILIPPINE SPEC&F SPORT

main44610-53410iGSE31..ARL¥50,300201304-201508

main44610-53440iASE30..CHI201705-202009

main44610-53440iASE30..GEN201508-201610

TAIWAN SPEC&WITH(STOP & START SYSTEM)

main44610-53450iGSE31..GEN201508-202009

main44610-53470iASE30..GCC201508-202009

PHILIPPINE SPEC&F SPORT

main44610-53470iASE30,GSE31..GCC202009-202110

main44610-53480iASE30..ARL¥45,500201508-202009

main44610-53490iGSE31..ARL¥43,800201710-202009

main44610-53520iASE30,GSE31..ARL¥36,500202009-202110

main44610-53580iASE30,GSE31..GEN202009-202110

main44610-53620iGSE31..ARL¥33,200202111-202309

main44610-53630iASE30,GSE31..LHD202111

44696GROMMET, CHECK VALVE

main90480-24439iASE30,GSE31¥390201304-202309

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGSE31..LHD¥1,720201508-202003

main44730-20170iGSE31..LHD¥1,310201304-201710

main44730-22150iASE30..ARL¥1,300201508-202003

main44730-30060iASE30..ARL¥1,300202004-202309

main44730-52010iASE30,GSE31..LHD¥1,300202004-202110

main44730-60070iGSE31..ARL¥1,300201304-201710

44750HOSE ASSY, VACUUM

main44750-30B20iGSE31..ARL¥1,140201710-202309

main44750-53120iGSE30..LHD¥1,350201304-201508

main44750-53140iGSE31..LHD201304-201710

main44750-53210iASE30..ARL¥1,690201508-202110

main44750-53220iASE30..LHD201508-202110

44750ACLIP(FOR VACUUM HOSE ASSY)

main44783-30010iASE30..LHD¥360201508-201610

NO.1:REFER ILLUST.

main90467-16014iASE30¥230201610-202309

main90467-16014iGSE31..LHD¥230201304-201710

NO.2:REFER ILLUST.

main96133-41500iGSE31..LHD¥140201304-201710

NO.1:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE3#¥250201304-202309

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iGSE31..ARL¥250202306-202309

main47264-22040iASE30,GSE31¥320201304-202110

main47264-63010iASE30,GSE31¥250202111-202305

9017910065

main90179-10065¥90

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

11 parts on this diagram · 7 diagrams in section
