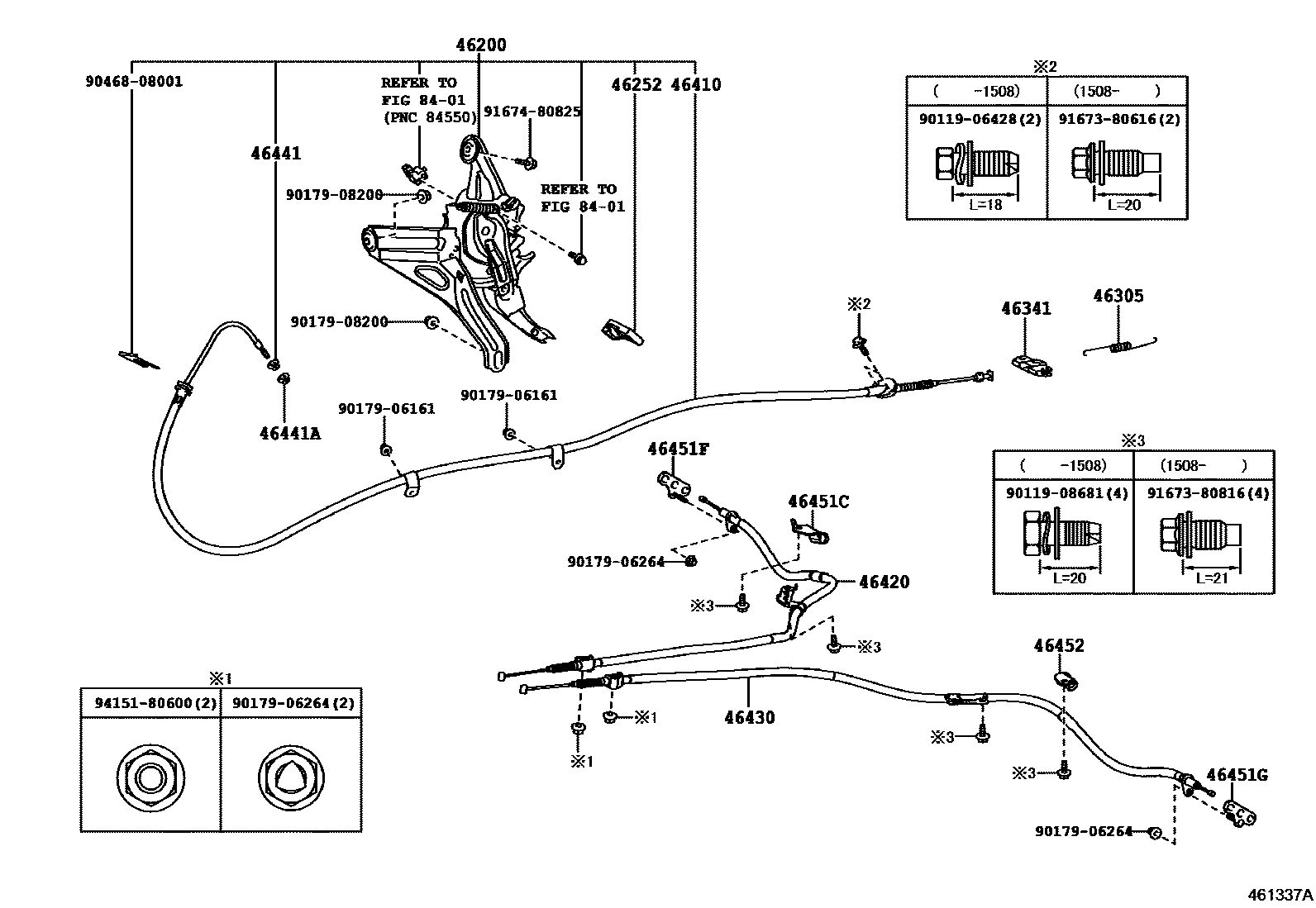

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iASE30,AVE30,GSE31..ARL¥15,700201304-202009

main46200-53060iASE30,AVE30,GSE31..LHD201304-202009

46252PAD, PARKING PEDAL

main46252-22010iAVE30,GSE3#¥260201304-201404

main46252-47010iAVE30,GSE3#¥530201405-202009

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53020iASE30,AVE30,GSE31¥270201304-202009

46341EQUALIZER, PARKING BRAKE

main46341-22060iASE30,AVE30,GSE31¥460201304-202009

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iAVE30,GSE3#..ARL¥3,200201304-202009

main46410-53040iAVE30,GSE3#..LHD201304-202009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-53040iASE30,AVE30,GSE31¥3,830201304-202009

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-53020iAVE30,GSE3#¥3,830201304-202009

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAVE30,GSE3#¥160201304-202009

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iAVE30,GSE3#¥70201304-202009

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30220iAVE30,GSE3#¥400201304-202009

46451FBRACKET, CABLE SUPPORT

main46451-30270iASE30,AVE30,GSE31¥280201610-202009

main46451-30280iAVE30,GSE3#¥280201304-201610

46451GBRACKET, CABLE SUPPORT

main46451-30270iAVE30,GSE3#¥280201304-201610

main46451-30280iASE30,AVE30,GSE31¥280201610-202009

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30230iAVE30,GSE3#¥400201304-202009

8401

9011906428

main90119-06428¥80

9011908681

main90119-08681¥160

9017906161

main90179-06161¥70

9017906264

main90179-06264¥100

9017908200

main90179-08200¥180

9046808001

main90468-08001¥210

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9167480825

main91674-80825¥110

9415180600

main94151-80600¥60

24 parts on this diagram · 4 diagrams in section
