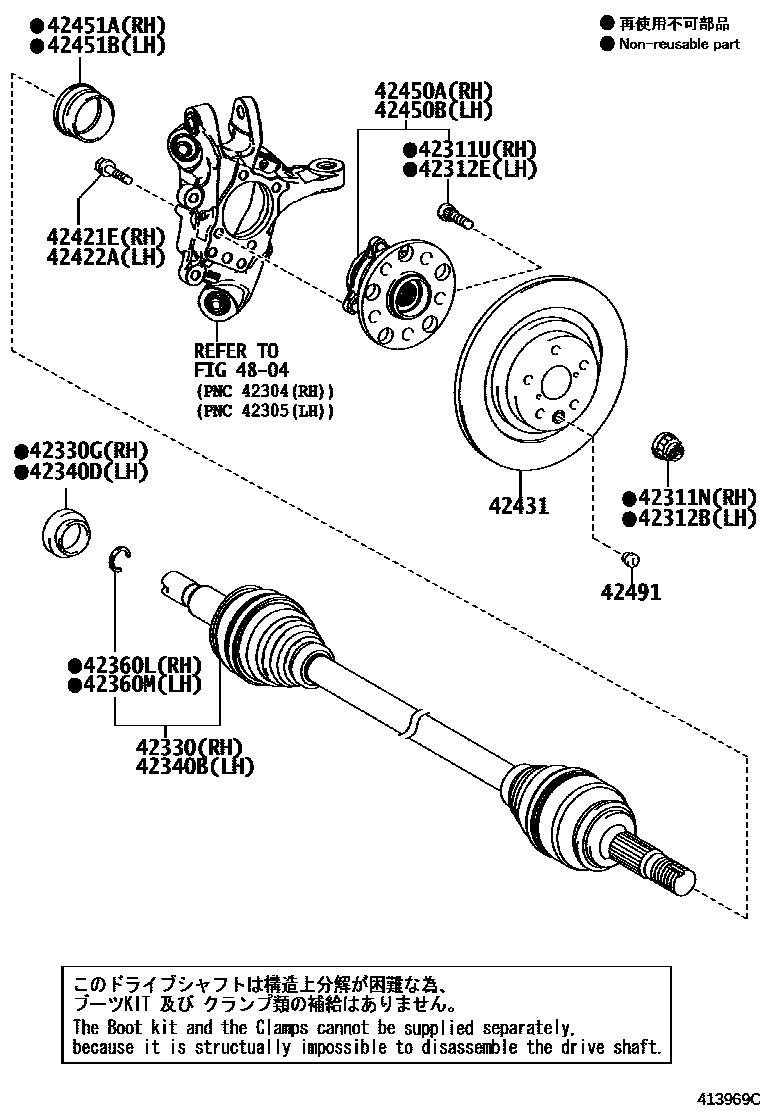

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iASE30,AVE30,GSE31201304-202309

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAVE30,GSE3#201505-202009

main90942-02070iAVE30,GSE3#201304-201504

sub90942-02049

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iASE30,AVE30,GSE31201304-202309

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAVE30,GSE3#201505-202009

main90942-02070iAVE30,GSE3#201304-201504

sub90942-02049

42330SHAFT ASSY, REAR DRIVE, RH

main42330-53030iGSE30201304-201508

main42330-53040iAVE30,GSE31201304-202009

main42330-53050iASE30,AVE30,GSE31202009-202309

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGSE30201304-201508

main90311-47018iAVE30,GSE31201304-202209

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-53030iGSE30201304-201508

main42340-53040iAVE30,GSE31201304-202009

main42340-53050iASE30,AVE30,GSE31202009-202309

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGSE30201304-201508

main90311-47019iAVE30,GSE31201304-202209

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iAVE30,GSE3#201304-202309

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iASE30,AVE30,GSE31201304-202309

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009iASE30,AVE30,GSE31201304-202309

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009iAVE30,GSE3#201304-202309

42431DISC, REAR

main42431-30300iAVE30,GSE30201304-202009

main42431-30310iGSE31201304-202009

main42431-53030iGSE31..GEN;ASE30,AVE30..ARL,GEN202009-202309

main42431-53040iASE30,GSE31..GCC202009-202110

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30040iAVE30,GSE3#201304-201504

sub42410-30041

main42410-30041iASE30,AVE30,GSE31201505-202009

main42410-53010iASE30,AVE30,GSE31202009-202309

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30040iAVE30,GSE3#201304-201504

sub42410-30041

main42410-30041iAVE30,GSE3#201505-202009

main42410-53010iASE30,AVE30,GSE31202009-202309

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040iAVE30,GSE3#201304-202309

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040iAVE30,GSE3#201304-202309

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iAVE30,GSE3#201304-202009

4804

19 parts on this diagram · 2 diagrams in section
