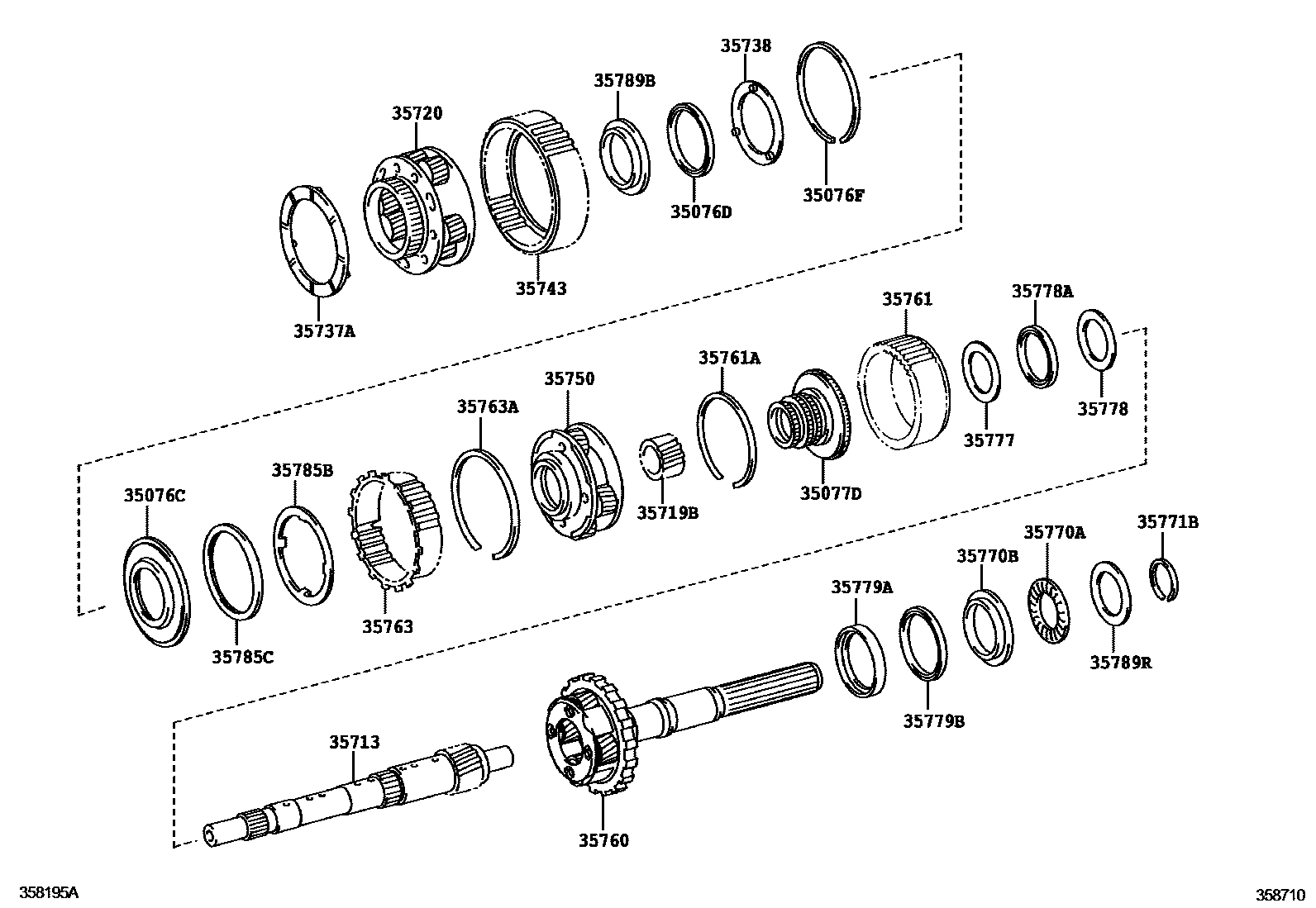

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)
35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35713SHAFT, INTERMEDIATE
35720GEAR ASSY, FRONT PLANETARY
35737WASHER, PLANETARY CARRIER THRUST
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35750GEAR ASSY, CENTER PLANETARY
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
FRONT
REAR
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
FRONT
REAR
35771BRING, HOLE SNAP (FOR OUTPUT SHAFT, NO.1)
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)
35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
T=3.80
T=3.90
T=4.00
T=4.10
T=4.20
T=3.85
T=3.95
T=4.05
T=4.15
T=4.25
T=4.30
T=4.35
29 parts on this diagram · 2 diagrams in section
