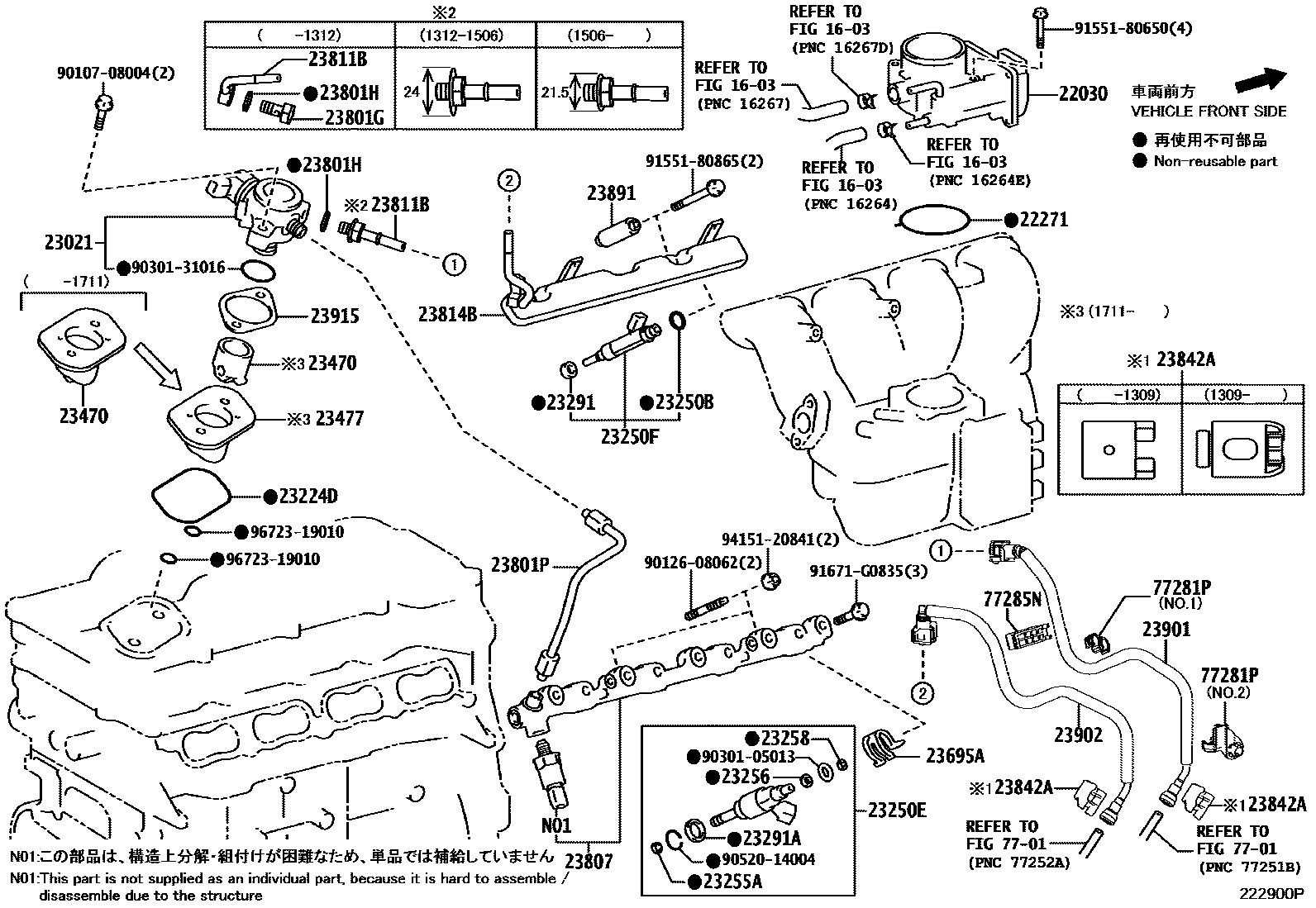

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
NO.2
MARK BLACK
MARK BROWN
MARK YELLOW,NO.1
MARK BLACK,NO.1
MARK BROWN,NO.1
MARK GREEN,NO.1
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
MARK=23250-31140
MARK=23250-31230
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.1
NO.2
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23811BPIPE, FUEL, NO.1
23814BPIPE, FUEL DELIVERY
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
NO.1
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
NO.2
23902TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701
77281PCLAMP, FUEL HOSE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
77285NCLAMP, FUEL TUBE, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
9010708004
main90107-08004
9012608062
main90126-08062
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
9155180650
main91551-80650
9155180865
main91551-80865
91671G0835
main91671-G0835
9415120841
main94151-20841
9672319010
main96723-19010
41 parts on this diagram · 8 diagrams in section
