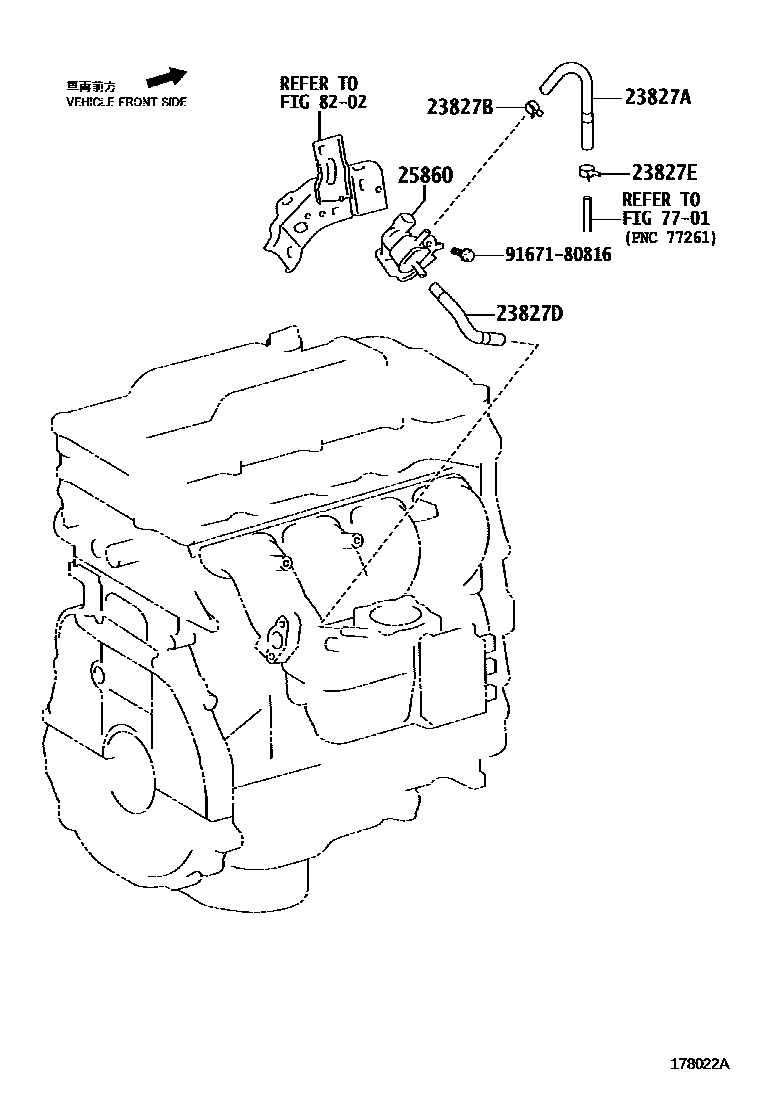

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31150i2GRF..GSE31201610-201710

main23827-36110i2ARFSE..AVE30202009-202110

main23827-36150i8ARFTS..ASE30201508-201610

main23827-36210i2ARFSE..AVE30..ARL202009-202110

TAIWAN SPEC

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i2ARFSE..AVE30201304-201508

main96133-41301i2GRFKS..GSE31..LHD202111

main96136-42201i8ARFTS..ASE30202009-202110

main96136-41901i2ARFSE..AVE30..ARL202009-202110

TAIWAN SPEC

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-36120i2ARFSE..AVE30202111

main23827-36220i2ARFSE..AVE30..ARL202111

MACAU SPEC

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2GRFKS..GSE31..LHD202111

main96137-41901i8ARFTS..ASE30201610-202009

main96136-41901i2ARFSE..AVE30..ARL202009-202110

MACAU SPEC

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRF..GSE31201508-201610

main25860-31090i2GRFKS..GSE31202009-202110

main25860-36080i2ARFSE..AVE30201304-201508

main25860-36150i2ARFSE..AVE30..ARL202009-202110

MACAU SPEC

7701

8202

9167180816

main91671-80816

8 parts on this diagram · 4 diagrams in section
