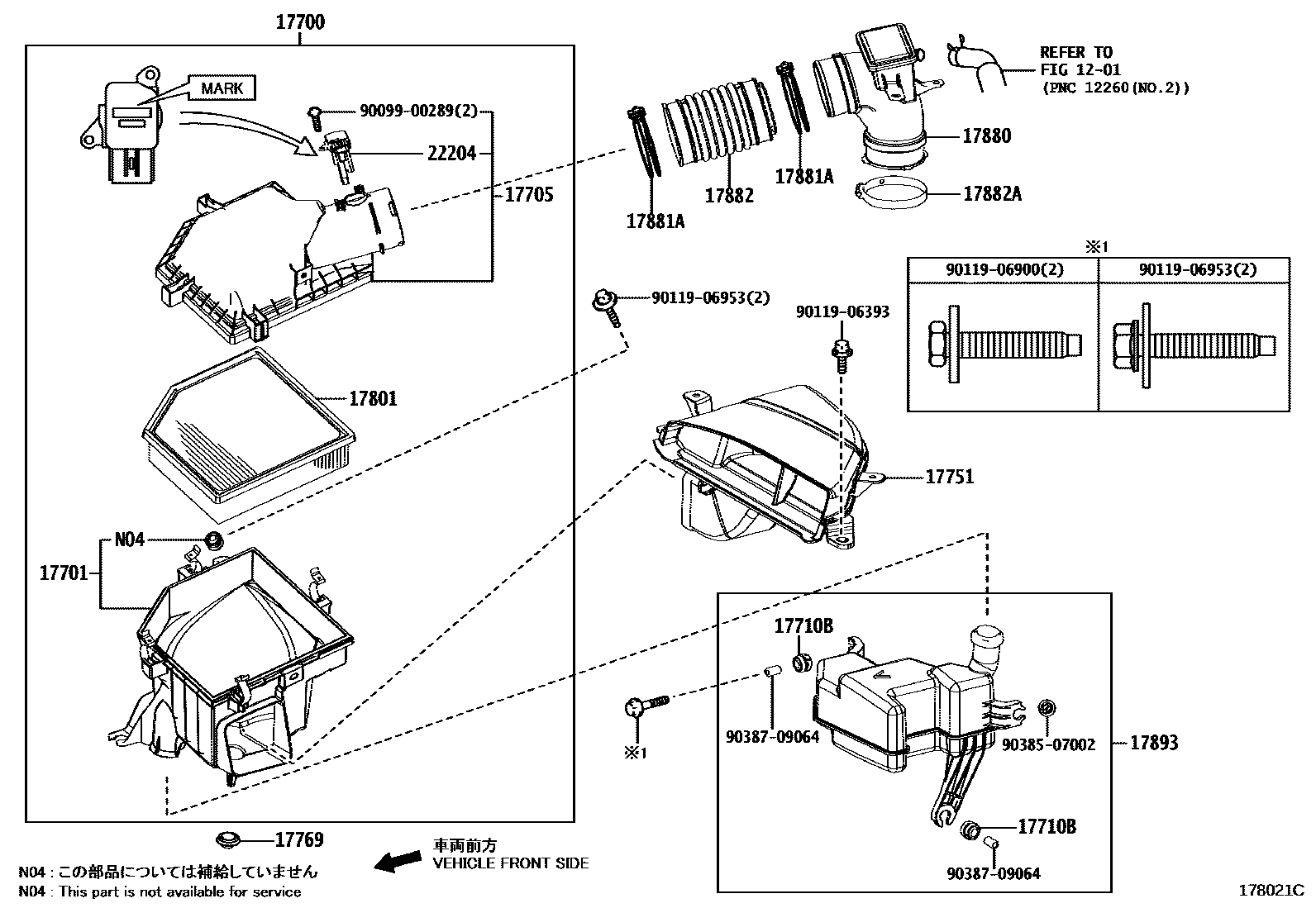

AIR CLEANER

0001 1 0002 1 0003 1AIR CLEANER SIDE 0004 1AIR CLEANER SIDE W/O(RESONATO0005 1AIR CLEANER SIDE W(RESONATOR)0006 1INTERCOOLER SIDE 0007 1 0008 1 0009 1

1201

17700CLEANER ASSY, AIR

main17700-31820i2GRF..GSE31201508-201610

main17700-31A20i2GRFKS..GSE31202009-202110

main17700-36280i2ARFSE..AVE30201304-201508

main17700-36290i8ARFTS..ASE30201610-202009

main17700-36300i2ARFSE..AVE30202009-202110

main17700-36460supersedes 17700-36410i8ARFTS..ASE30202009-202110

main17700-36430i8ARFTS..ASE30..GEN201508-201610

HONGKONG SPEC

17701CASE SUB-ASSY, AIR CLEANER

main17701-31620i8ARFTS..ASE30..GEN201610-202009

SOUTH AFRICA SPEC

main17701-31690i8ARFTS..ASE30..ARL202111

main17701-36230i2ARFSE,8ARFTS..ASE30,AVE30201508-201610

main17701-36240supersedes 17701-31690i2ARFSE..AVE30;8ARFTS..ASE30..LHD202111

17705CAP SUB-ASSY, AIR CLEANER

main17705-31300i2ARFSE..AVE30202111

main17705-31360i2GRF..GSE31201610-202009

main17705-36180i8ARFTS..ASE30202009-202110

main17705-36200i8ARFTS..ASE30201610-202009

17710BGROMMET

main90480-11016×2i2ARFSE,8ARFTS..ASE30,AVE30201508-201610

17751INLET, AIR CLEANER, NO.1

main17751-31370i2GRF,4GRFSE..GSE3#201304-201508

main17751-31390i2GRFKS..GSE31..ARL202111-202309

main17751-36070i2ARFSE..AVE30201610-202009

main17751-36170i2ARFSE..AVE30202111

17769SUPPORT, AIR CLEANER

main17769-31030i2ARFSE,8ARFTS..ASE30,AVE30202111

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31170i2ARFSE,8ARFTS..ASE30,AVE30201508-201610

17880HOSE ASSY, AIR CLEANER

main17880-36100i2ARFSE..AVE30201304-201508

17881HOSE, AIR CLEANER, NO.1

main17880-36170i8ARFTS..ASE30202111

main17881-31280i2GRF..GSE31201610-202009

main17881-31290supersedes 17880-31241i4GRFSE..GSE30..CHI,GCC201407-201508

THE CRAFTED LINE

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10670i8ARFTS..ASE30201610-202009

NO.1:REFER ILLUST.

main96111-10850i2GRF,4GRFSE..GSE3#201304-201508

main96111-10880×2i2ARFSE..AVE30202009-202110

17882HOSE, AIR CLEANER, NO.2

main17882-36030i2ARFSE..AVE30202111

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010i4GRFSE..GSE30201304-201508

main90460-90005i2GRFKS..GSE31202009-202110

17893RESONATOR, INTAKE AIR

main17893-36090i2ARFSE,8ARFTS..ASE30,AVE30201508-201610

main17893-36110i2ARFSE,8ARFTS..ASE30,AVE30202009-202110

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ARFSE,8ARFTS..ASE30,AVE30201610-202009

MARK 22204-0T040

main22204-0V010i2ARFSE,8ARFTS..ASE30,AVE30201610-202009

MARK 22204-0V010

main22204-0V020i2GRF,4GRFSE..GSE3#201304-201508

MARK 22204-0V020

main22204-28010i2ARFSE,8ARFTS..ASE30,AVE30201508-201610

MARK 22204-28010

9009900289

main90099-00289

9011906393

main90119-06393

9011906900

main90119-06900

9011906953

main90119-06953

9038507002

main90385-07002

9038709064

main90387-09064

21 parts on this diagram · 9 diagrams in section
