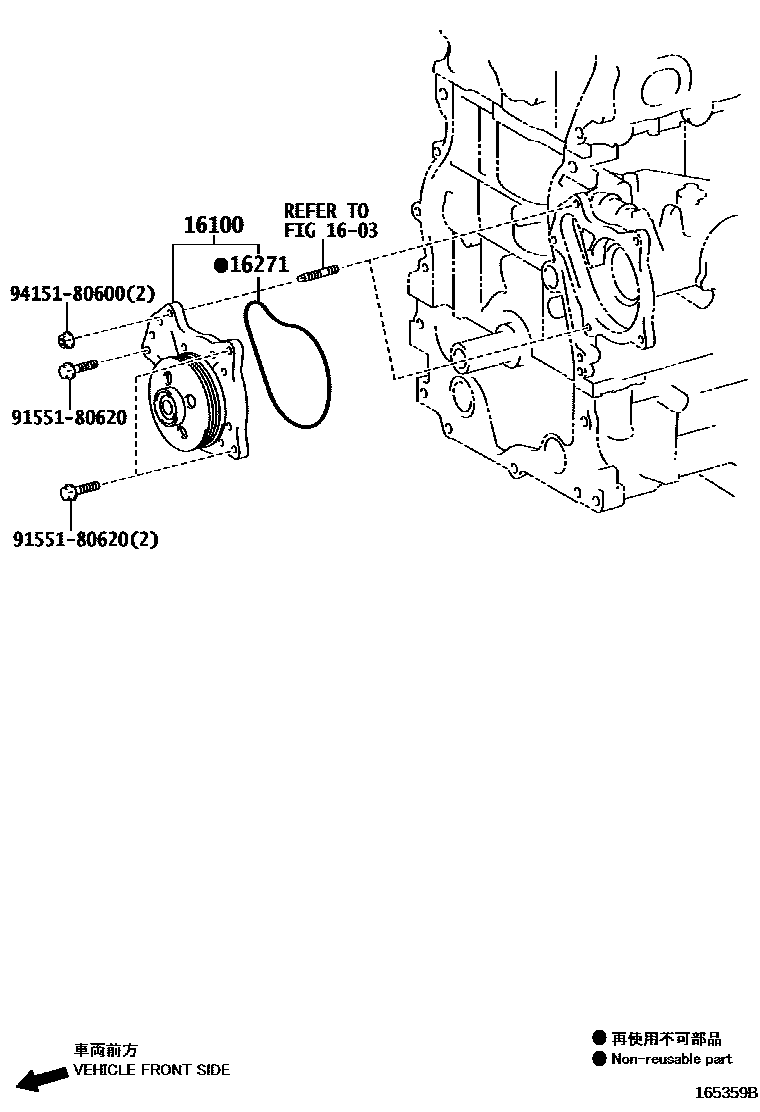

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRF..GSE31¥13,400201304-201710

main16100-39575i2ARFSE..AVE30¥9,000201304-202110

main16100-39595i8ARFTS..ASE30¥9,500201508-202110

main16100-39615i2GRF..GSE31¥9,500201710-202004

sub16100-39616¥9,500

main16100-39616i2GRFKS..GSE31..ARL¥9,500202004-202309

16271GASKET, WATER PUMP

main16271-31020i2GRF..GSE31¥2,320201304-201710

main16271-31050i2GRFKS..GSE31¥1,740201710-202309

main16271-36030i2ARFSE..AVE30¥200201304-202110

main16271-36040i8ARFTS..ASE30¥340201508-202110

9155180620

main91551-80620¥60

9415180600

main94151-80600¥60

5 parts on this diagram · 4 diagrams in section
