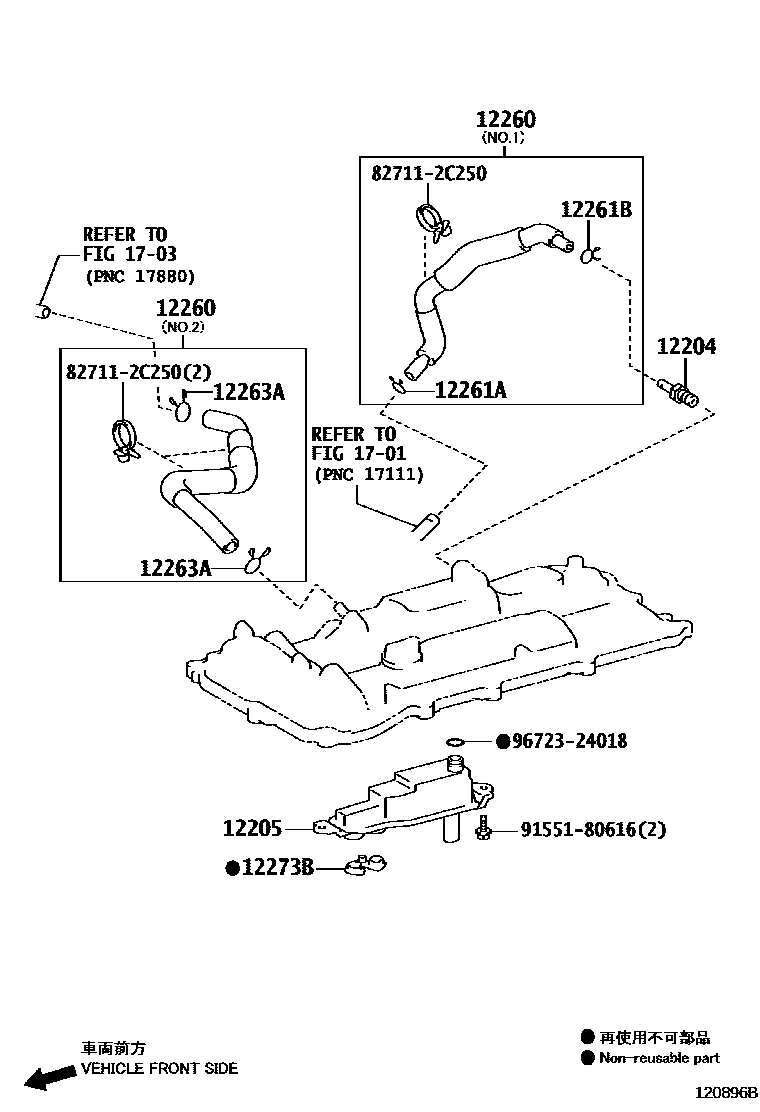

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12205CASE SUB-ASSY, VENTILATION
12260HOSE ASSY, VENTILATION
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
12273BGASKET, OIL SEPARATOR
1701
1703
827112C250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C250
9155180616
main91551-80616
9672324018
main96723-24018
14 parts on this diagram · 4 diagrams in section
