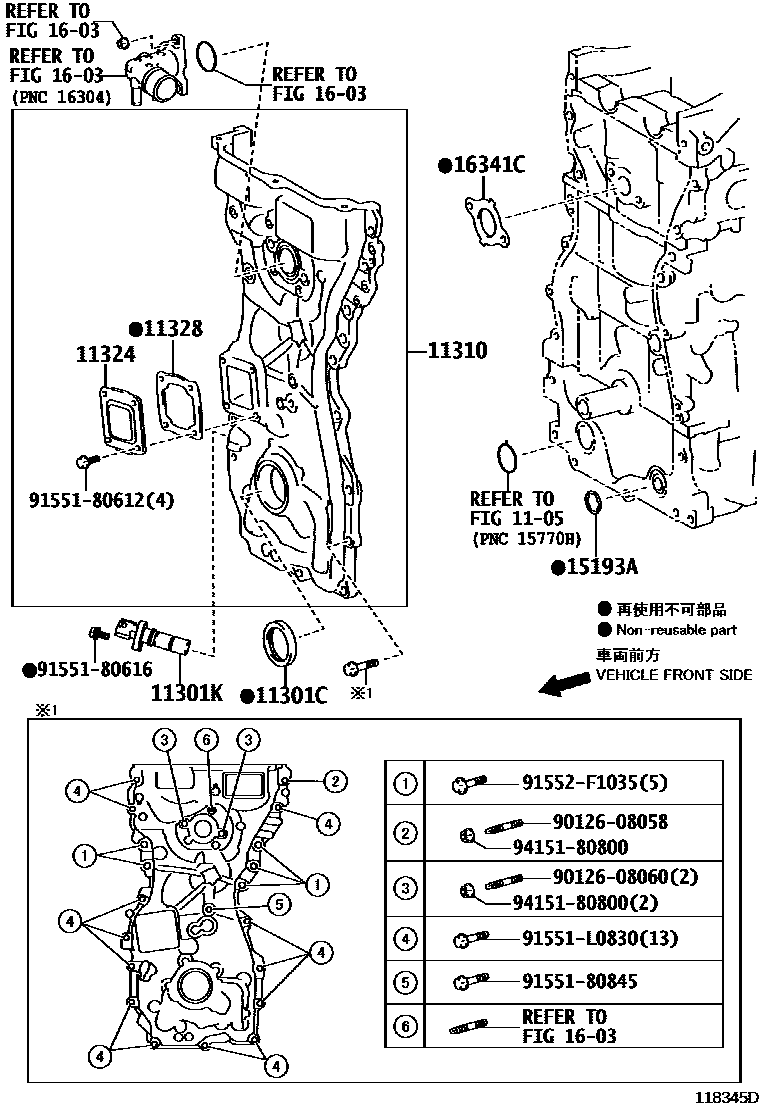

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFSE..AVE30¥400201409-201902

sub90311-42061¥400

main90311-42043i2ARFSE..AVE30¥400201304-201312

sub90311-42051¥400

main90311-42045i2GRF..GSE31¥520201304-201710

main90311-42051i8ARFTS..ASE30¥400201312-202110

main90311-42052i2GRFKS..GSE31..ARL¥520201710-202309

main90311-42061i2ARFSE..AVE30¥400201903-202110

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFSE..AVE30¥3,870201304-202110

main90919-05088i8ARFTS..ASE30¥4,130201508-202110

11310COVER ASSY, TIMING CHAIN

main11310-31080i2GRFKS..GSE31..ARL¥31,900201710-202309

main11310-36050i2ARFSE..AVE30¥19,700201304-202110

main11310-36080i8ARFTS..ASE30¥19,700201508-202110

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFKS..GSE31..ARL¥660201304-202309

main11324-36010i2ARFSE..AVE30¥660201304-202110

main11324-36020i8ARFTS..ASE30¥660201508-202110

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRF..GSE31¥400201304-202309

main11328-36020i2ARFSE..AVE30¥460201304-202110

main11328-36030i8ARFTS..ASE30¥220201508-202110

15193AGASKET, OIL PUMP

main15193-31020i2GRF..GSE31¥220201710-202309

main15197-36010i2ARFSE,8ARFTS..ASE30,AVE30¥340201304-202110

1603

16341CGASKET, WATER OUTLET

main16341-36010i2ARFSE..AVE30¥440201304-202110

9012608058

main90126-08058¥80

9012608060

main90126-08060¥210

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180845

main91551-80845¥110

91551L0830

main91551-L0830¥80

91552F1035

main91552-F1035¥120

9415180800

main94151-80800¥80

17 parts on this diagram · 4 diagrams in section
