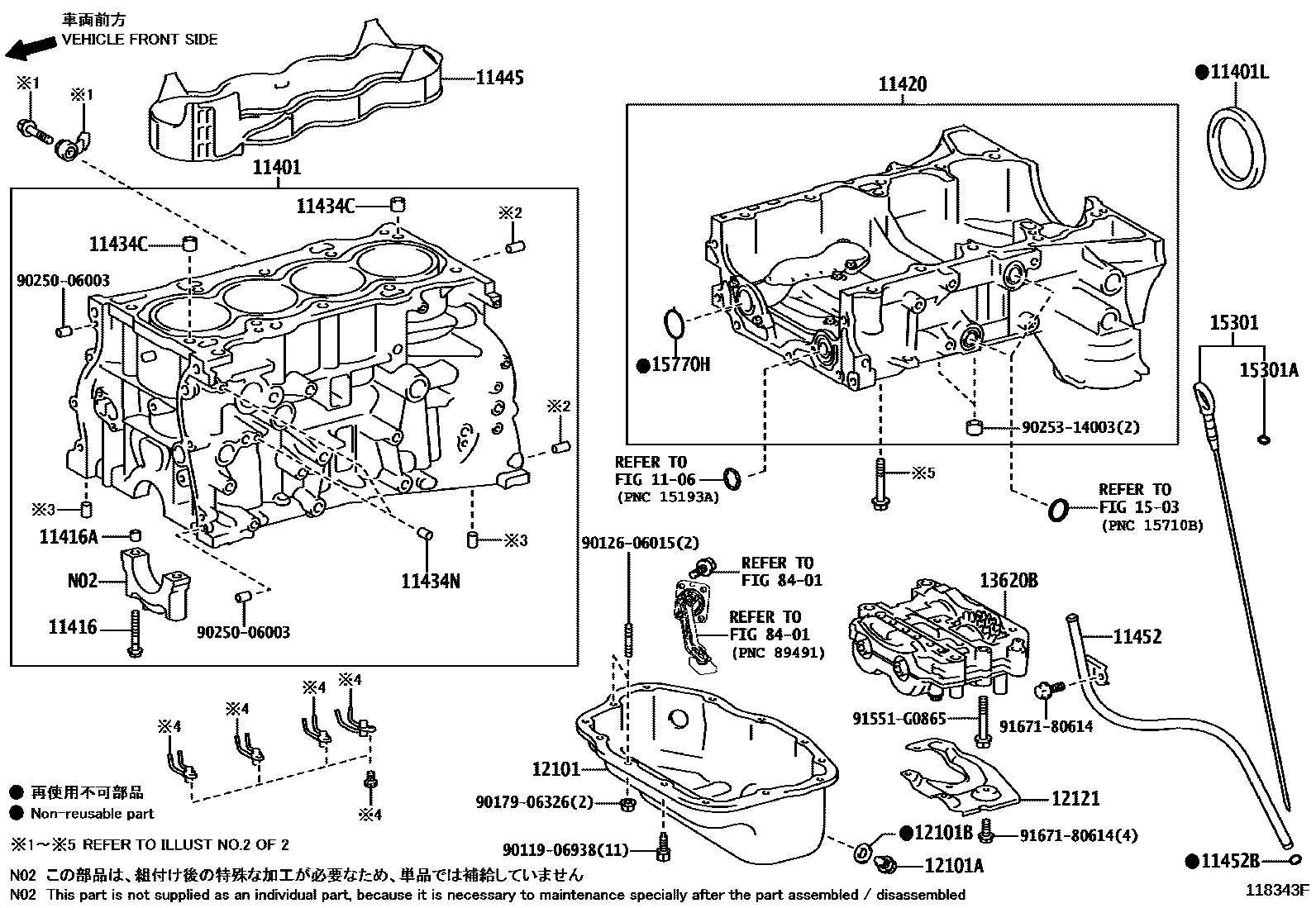

CYLINDER BLOCK
1106
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
L=14,OD=15
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
1503
15301ARING, O(FOR OIL LEVEL GAGE)
15770HGASKET(FOR OIL PIPE)
8401
9011906938
main90119-06938
9012606015
main90126-06015
9017906326
main90179-06326
9025006003
main90250-06003
9025314003
main90253-14003
91551G0865
main91551-G0865
9167180614
main91671-80614
28 parts on this diagram · 8 diagrams in section
