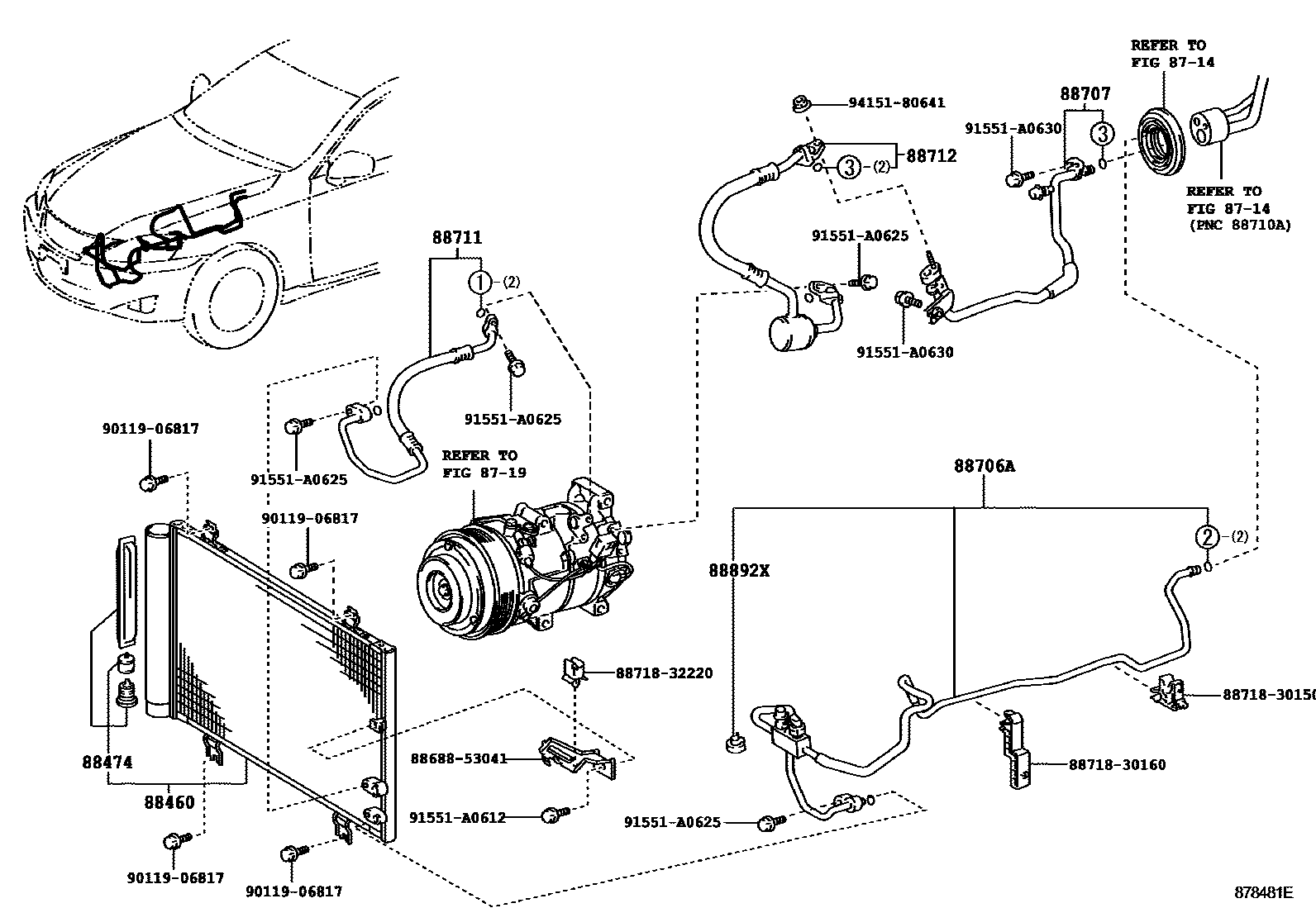

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-53050iGSE2#201008-201304

88474DRYER, COOLER

main88474-17010iGSE2#201008

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53080iGSE22200604-200808

88707PIPE SUB-ASSY, SUCTION

main88707-53050supersedes 88707-53080iGSE22..GEN200808-201008

PHILIPPINE SPEC

main88707-53080iGSE2#..GCC201008

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-53090iGSE2#..GCC201008

main88711-53100supersedes 88711-53090iGSE22..GEN200604-200808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53100supersedes 88712-53130iGSE22..GEN201008

CHINA SPEC

main88712-53130iGSE2#..GCC201008

88892XCOVER, COOLER, NO.2

main88892-50120iGSE22201005-201008

8868853041BRACKET, COOLER DIAPHRAGM

main88688-53041

8871830150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30150

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

18 parts on this diagram · 3 diagrams in section
