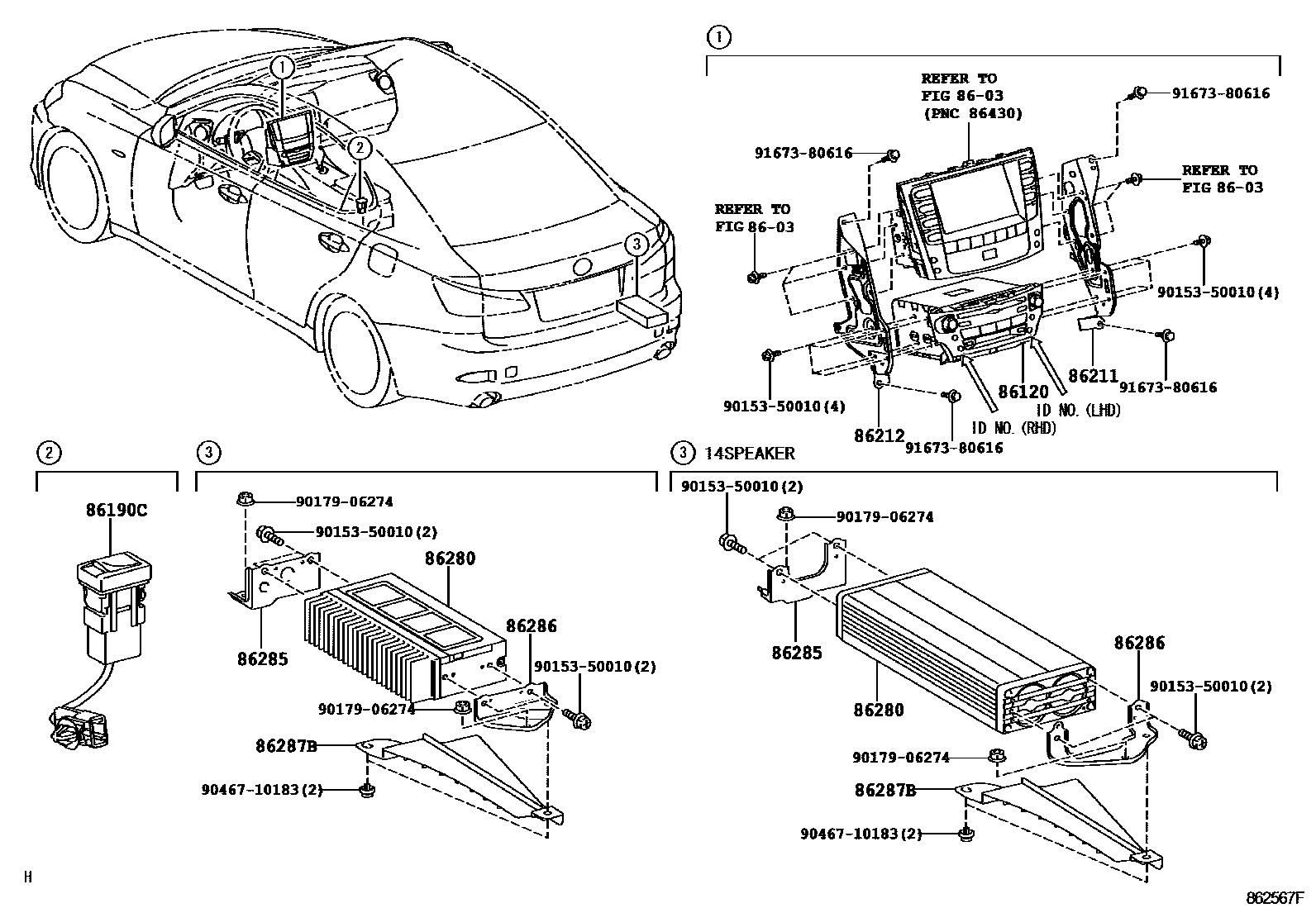

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1W/O(EMV) 0005 1W(EMV) 0006 1W/O(EMV) 0007 1W(EMV) 0008 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-53670iGSE2#..GCC201109-201304

PIONEER, ID=P10127

sub86120-53671

main86120-53A30iGSE2#..GCC201008-201109

PIONEER, ID=P2876,BRAZIL SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

sub86120-53A31

main86120-53B80iGSE22..GEN200908-201008

PIONEER, ID=P2878

main86120-53360iGSE22..GEN200604-200808

PIONEER, ID=P2807,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86120-53450iGSE22..GCC200607-200808

PIONEER, ID=P2826,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86120-53460iGSE22..GCC200607-200808

PIONEER, ID=P7501,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86120-53470iGSE22..GCC200607-200808

PIONEER, ID=P2834,CHINA SPEC

main86120-53480iGSE22..GCC200607-200808

PIONEER, ID=P2833,CHINA SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86120-53490iGSE22..GCC200607-200808

PIONEER, ID=P7502,CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86120-53520iGSE22..GCC201109-201304

PIONEER, ID=P10127,BRAZIL SPEC

main86120-53560iGSE20201109-201304

PIONEER, ID=P10125,CHINA SPEC

sub86120-53561

main86120-53580iGSE22..GCC200808-200907

PIONEER, ID=P1823,ARGENTINA SPEC

main86120-53590iGSE22..GCC200808-200908

PIONEER, ID=P1822,ARGENTINA SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86120-53620iGSE22..GEN200808-200908

PIONEER, ID=P2849,PHILIPPINE SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

sub86120-53621

main86120-53710iGSE22..GCC200808-200908

PIONEER, ID=P2851,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

sub86120-53A60

main86120-53720iGSE22..GCC200808-200907

PIONEER, ID=P7529,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86120-53730iGSE22..GCC200808-200907

PIONEER, ID=P2854,CHINA SPEC

main86120-53740iGSE22..GCC200808-200907

PIONEER, ID=P2853,CHINA SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86120-53750iGSE22..GCC200808-200907

PIONEER, ID=P7530,CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86120-53A60iGSE2#..GCC201008-201208

PIONEER, ID=P2877,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

sub86120-53A61

main86120-53A90iGSE22..GCC201008-201104

PIONEER, ID=P7543,PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

sub86120-53A91

main86120-53A91iGSE22..GCC201105-201208

PIONEER,PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

sub86120-53A92

main86120-53B00iGSE22..GCC201008-201207

PIONEER, ID=P3830,MOROCCO SPEC

sub86120-53B01

main86120-53B50iGSE22..GCC200908-201008

PIONEER, ID=P2881,CHINA SPEC

main86120-53B60iGSE22..GCC200908-201008

PIONEER, ID=P7544,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86120-53B70iGSE22..GCC200908-201008

PIONEER, ID=P7545,CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

sub86120-53B71

main86120-53C30iGSE20201008-201208

PIONEER, ID=P2882,CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

sub86120-53C31

main86120-53C60iGSE22..GCC201008-201109

PIONEER, ID=P2883,BRAZIL SPEC

main86120-53E30iGSE22..GEN201008-201208

PIONEER, ID=P10062,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

sub86120-53E31

main86120-53E40iGSE22..GEN201008-201208

PIONEER, ID=P10063,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

sub86120-53E41

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53020iGSE22200604-200808

main86190-53030iGSE22200808-200907

main86190-53040iGSE22200908-201304

86211BRACKET, RADIO, NO.1

main86211-53020iGSE22200604-200808

sub86211-53030

main86211-53030iGSE2#200808-201304

main86211-53070iGSE22..GEN201208-201304

CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

86212BRACKET, RADIO, NO.2

main86212-53020iGSE22200604-200808

sub86212-53030

main86212-53030iGSE22200808-201304

main86212-53070iGSE22..GEN201208-201304

CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-53140iGSE22200908-201008

sub86280-53141

main86280-53140iGSE2#..GCC201008

AUDIO-AM/FM CD-CHANGER 13SPEAKER

sub86280-53141

main86280-0W360iGSE22200808-200908

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86280-0W740iGSE2#201208

AUDIO-AM/FM DVD 5.1CH 14SPEAKER

sub86280-0W741

main86280-0W790iGSE2#201008-201208

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

sub86280-0W791

main86280-53150iGSE22..GCC200908-201008

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION

sub86280-53151

main86280-53210iGSE2#201208

AUDIO-AM/FM DVD 13SPEAKER

sub86280-53211

86285BRACKET, AMPLIFIER, NO.1

main86285-53060iGSE2#200908-201008

main86285-53050iGSE22200808-200907

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86285-53070iGSE2#201008-201208

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-53090iGSE2#200908-201008

main86286-53050iGSE22200604-200808

AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER

main86286-53080iGSE22..GCC200908-201008

AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

86287BCOVER, AMPLIFIER

main86287-53010iGSE2#200604-201008

9015350010

main90153-50010

9017906274

main90179-06274

9046710183

main90467-10183

9167380616

main91673-80616

13 parts on this diagram · 8 diagrams in section
