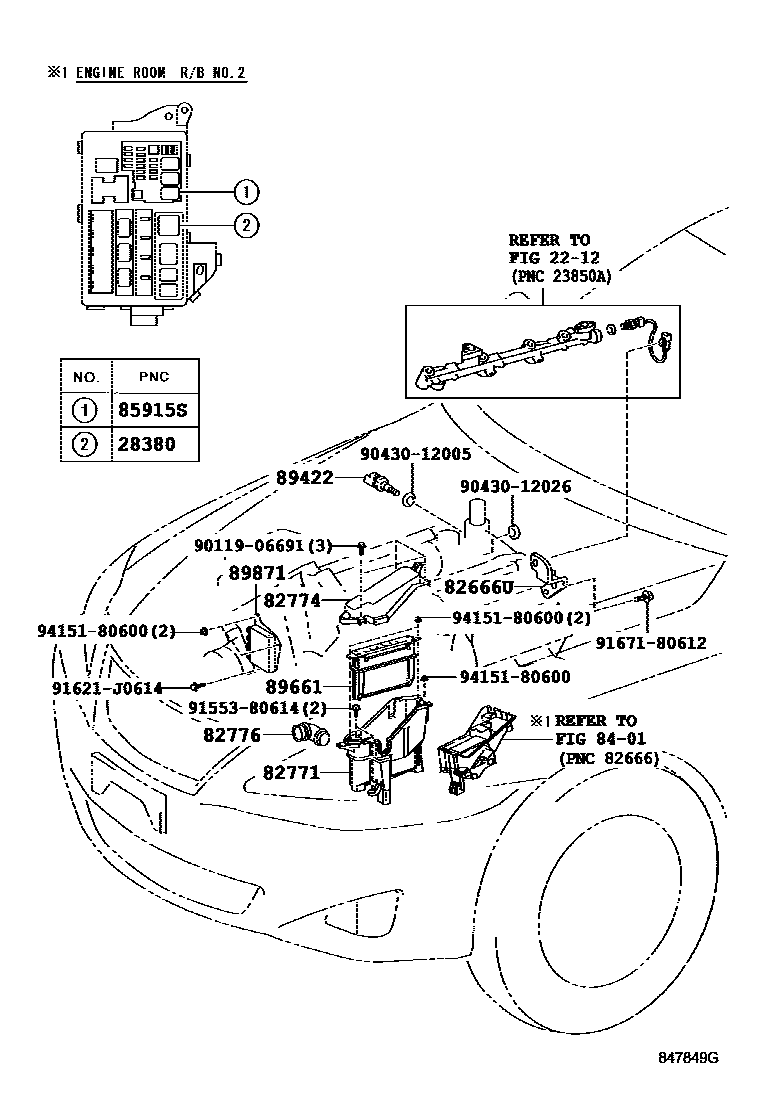

ELECTRONIC FUEL INJECTION SYSTEM

2212

28380RELAY ASSY, FUEL PUMP

main90987-03003i3GRFE..GSE22..GEN200604-201008

82666UHOLDER, CONNECTOR

main82666-30780iGSE20201008

82771BOX, ENGINE ROOM ECU

main82771-30040iGSE22200604-201008

82774COVER, ENGINE ROOM ECU

main82774-30050iGSE22200604-201008

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-53040iGSE22200604-201008

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGSE22..GEN200604-201008

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSE22..GEN200604-201008

89661COMPUTER, ENGINE CONTROL

main89661-53720iGSE22200604-200708

sub89661-53M30

main89661-53721iGSE22200708-200808

sub89661-53722

main89661-53D40iGSE22200808-200908

sub89661-53D41

main89661-53J00iGSE22200908-201008

main89661-53K20iGSE20201008

main89661-53M70iGSE22201008

89871DRIVER, INJECTOR

main89871-30030iGSE20201008-201110

sub89871-30031

main89871-30031iGSE20201111-201304

9011906691

main90119-06691

9043012005

main90430-12005

9043012026

main90430-12026

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
