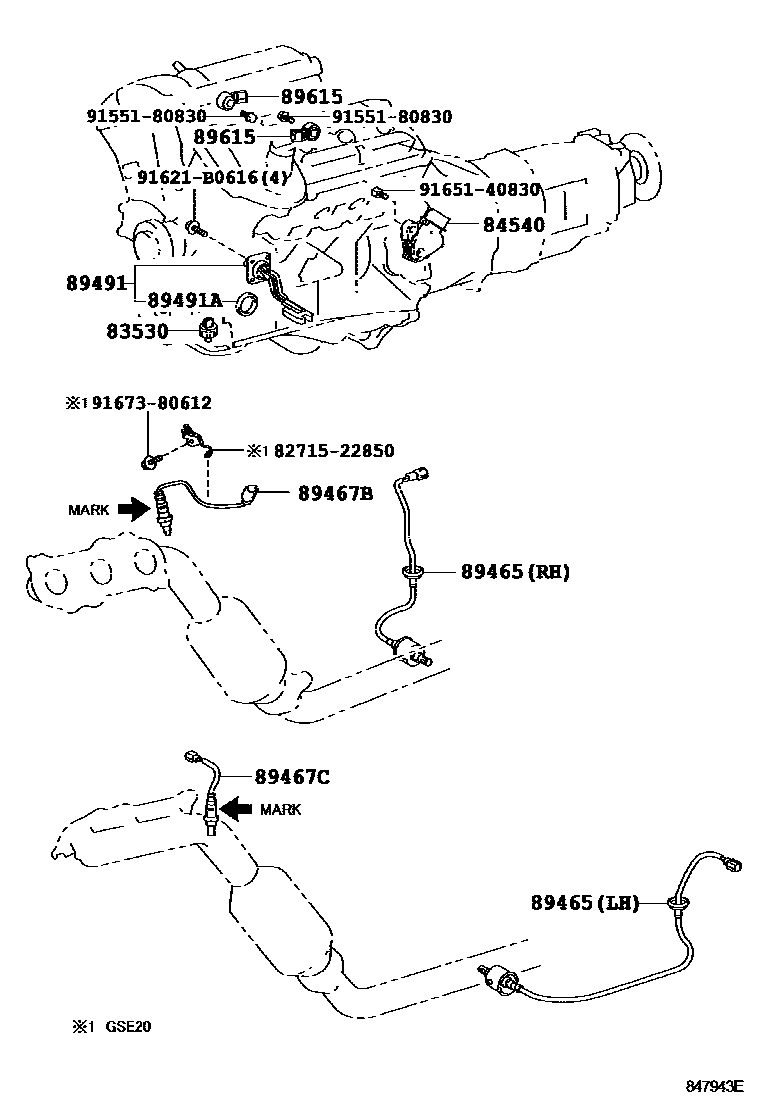

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 2/2 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 1/2 0009 1INSTRUMENT PANEL 1/2 0010 1INSTRUMENT PANEL 1/2 0011 1INSTRUMENT PANEL 1/2 0012 1INSTRUMENT PANEL 2/2 0013 1STEERING 0014 1DOOR,ROOF,FLOOR,SEAT & LUGGAG0015 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSE22200604-201008

main83530-28020iGSE2#201008

DENSO

main83530-60020iGSE2#201008

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-30320iGSE22200604-201304

main84540-71010iGSE20201008-201304

89465SENSOR, OXYGEN

main89465-30730iGSE20201008

RH & LH

main89465-30850iGSE22200604-201008

RH & LH

89467BSENSOR, AIR FUEL RATIO

main89467-30010iGSE22200604-200708

MARK 89467-30010

main89467-30040iGSE22200708-201008

MARK 89467-30040

main89467-30040iGSE22201008

main89467-53040iGSE20201008

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-30010iGSE22200604-200708

MARK 89467-30010

main89467-30030iGSE22201008

main89467-30030iGSE22200708-201008

MARK 89467-30030

main89467-53030iGSE20201008

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGSE22200604-201108

sub89491-30061

main89491-30061iGSE2#201109

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGSE22200604-201008

89615SENSOR, KNOCK CONTROL

main89615-20090iGSE22..GEN200604-201008

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

9167380612

main91673-80612

13 parts on this diagram · 15 diagrams in section
