WIRING & CLAMP

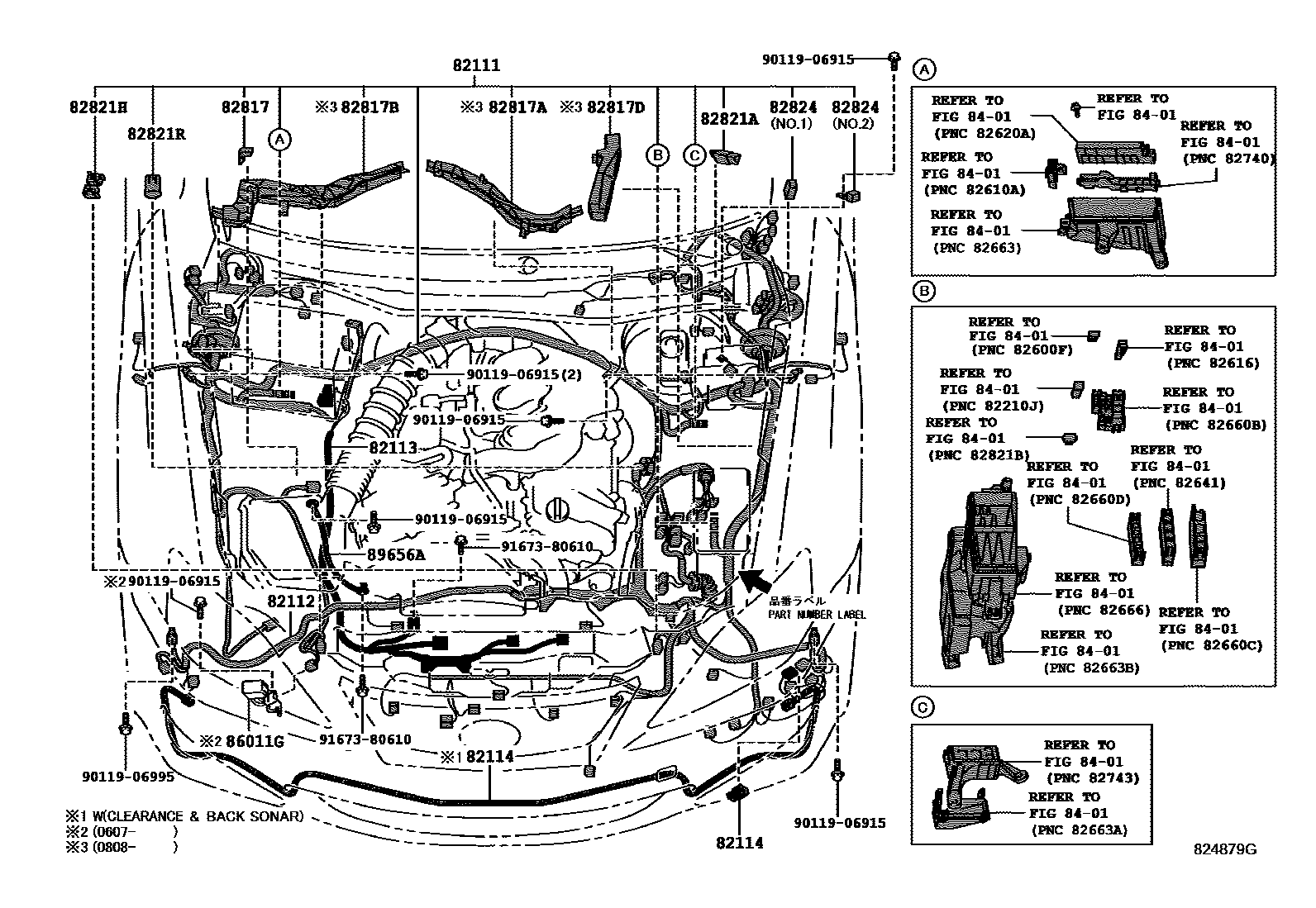

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-53825i201008-201208
main82111-53826i201208
main82111-53C41i200607-200708
main82111-53C42i200708-200808
main82111-53C51i200607-200708
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C52i200708-200808
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C53i200808-200908
main82111-53C54i200908-201008
main82111-53C55i201008-201208
main82111-53C56i201208
main82111-53C60i200604-200607
main82111-53C61i200607-200708
main82111-53C62i200708-200808
main82111-53C70i200604-200607
LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C71i200607-200708
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C72i200708-200808
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C73i200808-200908
main82111-53C74i200908-201008
main82111-53C75i201008-201208
main82111-53C76i201208
main82111-53C81i200607-200708
CHINA SPEC
main82111-53C81i200607-200708
PHILIPPINE SPEC
main82111-53C82i200708-200808
CHINA SPEC
main82111-53C82i200708-200808
PHILIPPINE SPEC
main82111-53C91i200607-200708
CHINA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C91i200607-200708
PHILIPPINE SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C92i200708-200808
CHINA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C92i200708-200808
PHILIPPINE SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82111-53C93i200808-200908
CHINA SPEC
main82111-53C93i200808-200908
PHILIPPINE SPEC
main82111-53C93i200808-200908
ARGENTINA SPEC
main82111-53C94i200908-201008
CHINA SPEC
main82111-53C94i200908-201008
PHILIPPINE SPEC
main82111-53C94i200908-201008
ARGENTINA SPEC
main82111-53C95i201008-201208
CHINA SPEC
main82111-53C96i201208
CHINA SPEC
main82111-53G00i201008-201208
CHINA SPEC&HEADLAMP-4,HALOGEN WITH/LEVELING
main82111-53G01i201208
CHINA SPEC&HEADLAMP-4,HALOGEN WITH/LEVELING
82112WIRE, ENGINE ROOM, NO.2
main82112-53020i200604-200808
main82112-53021i200808-201008
main82112-53280i201008
82113WIRE, ENGINE ROOM, NO.3
main82113-53010i200604-201008
main82113-53020i200607-201008
82114WIRE, ENGINE ROOM, NO.4
main82114-53010i200604-201304
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-12860i200604-201008
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-30B70i200808-201008
main82817-53150i200604-201008
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-30A20i200604-201008
main82817-53130i200808-201008
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-53190i200604-201008
main82817-53200i200808-201008
82821ACOVER, CONNECTOR
main82821-22120i201008
82821HCOVER, CONNECTOR
main82821-30650i200604-201008
82821RCOVER, CONNECTOR
main82821-12400i201008
CHINA SPEC
main82821-12400i201008
CHINA SPEC&HEADLAMP-4,HALOGEN WITH/LEVELING
82824CONNECTOR, WIRING HARNESS
main82824-30130i200607-200808
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
main82824-30130i200607-201008
NO.1
main82824-30130i200604-200808
main82824-48020i200607-201008
NO.2
8401
86011GCONDENSER
main86516-53010i200607-201008
89656AWIRE, POWER STEERING EARTH
main89656-30010i200604-201008
9011906915
main90119-06915
9011906995
main90119-06995
9167380610
main91673-80610

18 parts on this diagram · 17 diagrams in section
