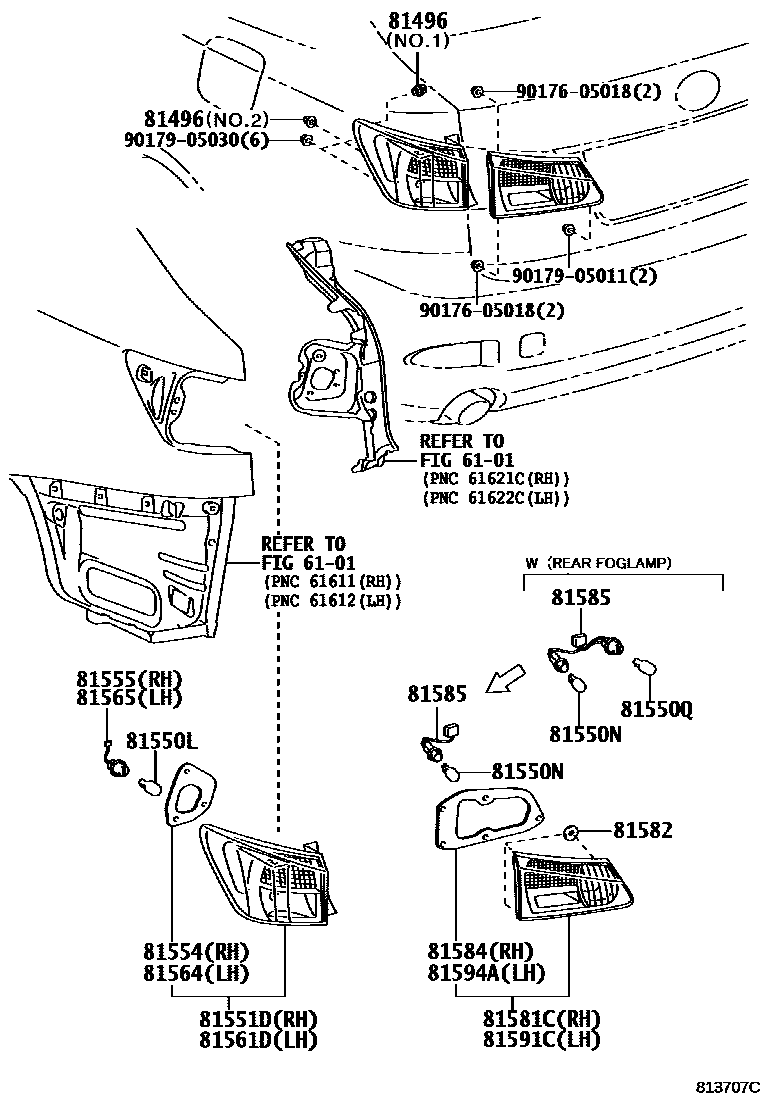

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
NO.2
NO.1
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81582GASKET, REAR LAMP
9017605018
main90176-05018
9017905011
main90179-05011
9017905030
main90179-05030
20 parts on this diagram · 2 diagrams in section
