MUDGUARD & SPOILER

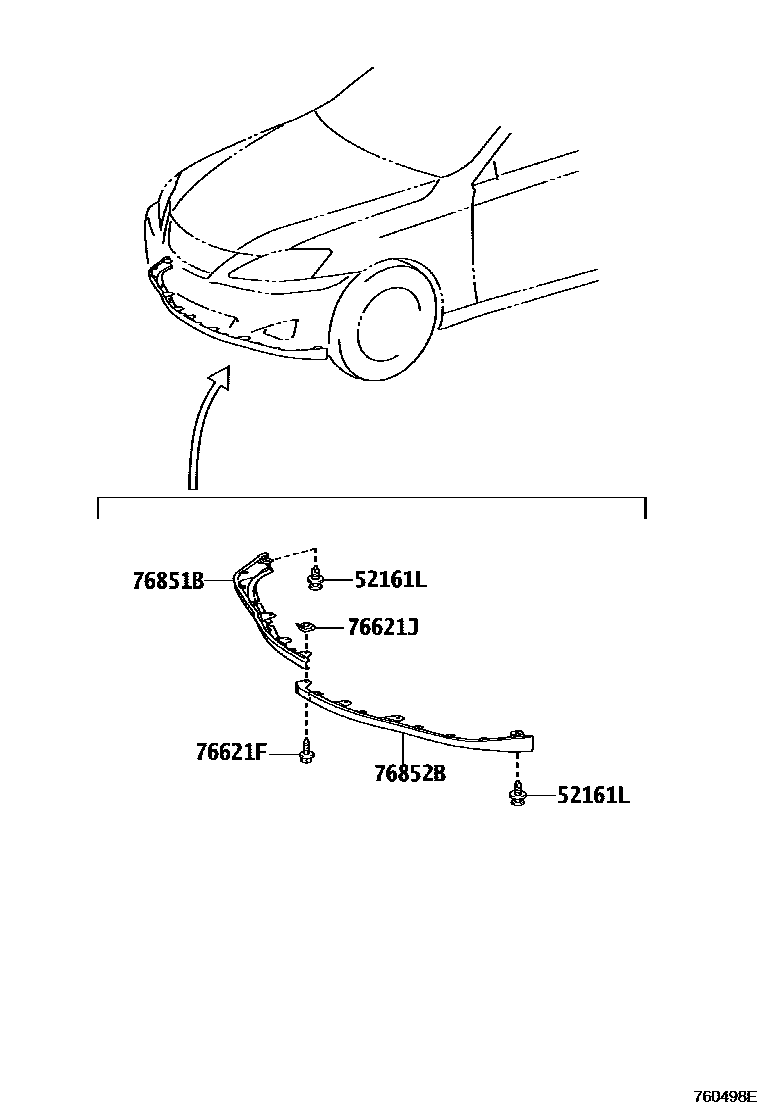

Parts diagram

52161LPIECE, FRONT SPOILER

main52161-16010i¥120200604-200808

sub52161-0K040¥120

76621FSCREW, NO.1

main90159-60477i¥70200604-200808

76621JNUT, NO.1

main90183-06019i¥80200604-200808

76851BSPOILER, FRONT, RH

main76851-53010-A0i200604-200608

WHITE PEARL CS.,062

sub76851-53010¥14,900

main76851-53010-A1i200604-200808

BLUISH PEARL CS.,074

sub76851-53010¥14,900

main76851-53010-A2i200607-200808

WHITE PEARL CS.,077

sub76851-53010¥14,900

main76851-53010-B0i200604-200808

DK.GRAY MC.,1G0

sub76851-53010¥14,900

main76851-53010-B1i200604-200808

SILVER M.M.,1G1

sub76851-53010¥14,900

main76851-53010-C0i200604-200608

BLACK,202

sub76851-53010¥14,900

main76851-53010-C1i200607-200808

BLACK,212

sub76851-53010¥14,900

main76851-53010-D0i200604-200808

RED MC.CS.,3R1

sub76851-53010¥14,900

main76851-53010-E0i200604-200608

BEIGE ME.,4P7

sub76851-53010¥14,900

main76851-53010-E1i200607-200808

BEIGE ME.,4T1

sub76851-53010¥14,900

main76851-53010-G0i200604-200808

MD.GREEN M.M.,6U3

sub76851-53010¥14,900

main76851-53010-J0i200604-200608

DARK BLUE MC.,8P8

sub76851-53010¥14,900

main76851-53010-J1i200604-200808

LT.BLUE ME.,8R6

sub76851-53010¥14,900

main76851-53010-J3i200607-200808

DK.BLUE MC. CC.,8U0

sub76851-53010¥14,900

76852BSPOILER, FRONT, LH

main76852-53010-A0i200604-200608

WHITE PEARL CS.,062

sub76852-53010¥14,900

main76852-53010-A1i200604-200808

BLUISH PEARL CS.,074

sub76852-53010¥14,900

main76852-53010-A2i200607-200808

WHITE PEARL CS.,077

sub76852-53010¥14,900

main76852-53010-B0i200604-200808

DK.GRAY MC.,1G0

sub76852-53010¥14,900

main76852-53010-B1i200604-200808

SILVER M.M.,1G1

sub76852-53010¥14,900

main76852-53010-C0i200604-200608

BLACK,202

sub76852-53010¥14,900

main76852-53010-C1i200607-200808

BLACK,212

sub76852-53010¥14,900

main76852-53010-D0i200604-200808

RED MC.CS.,3R1

sub76852-53010¥14,900

main76852-53010-E0i200604-200608

BEIGE ME.,4P7

sub76852-53010¥14,900

main76852-53010-E1i200607-200808

BEIGE ME.,4T1

sub76852-53010¥14,900

main76852-53010-G0i200604-200808

MD.GREEN M.M.,6U3

sub76852-53010¥14,900

main76852-53010-J0i200604-200608

DARK BLUE MC.,8P8

sub76852-53010¥14,900

main76852-53010-J1i200604-200808

LT.BLUE ME.,8R6

sub76852-53010¥14,900

main76852-53010-J3i200607-200808

DK.BLUE MC. CC.,8U0

sub76852-53010¥14,900

5 parts on this diagram · 2 diagrams in section
