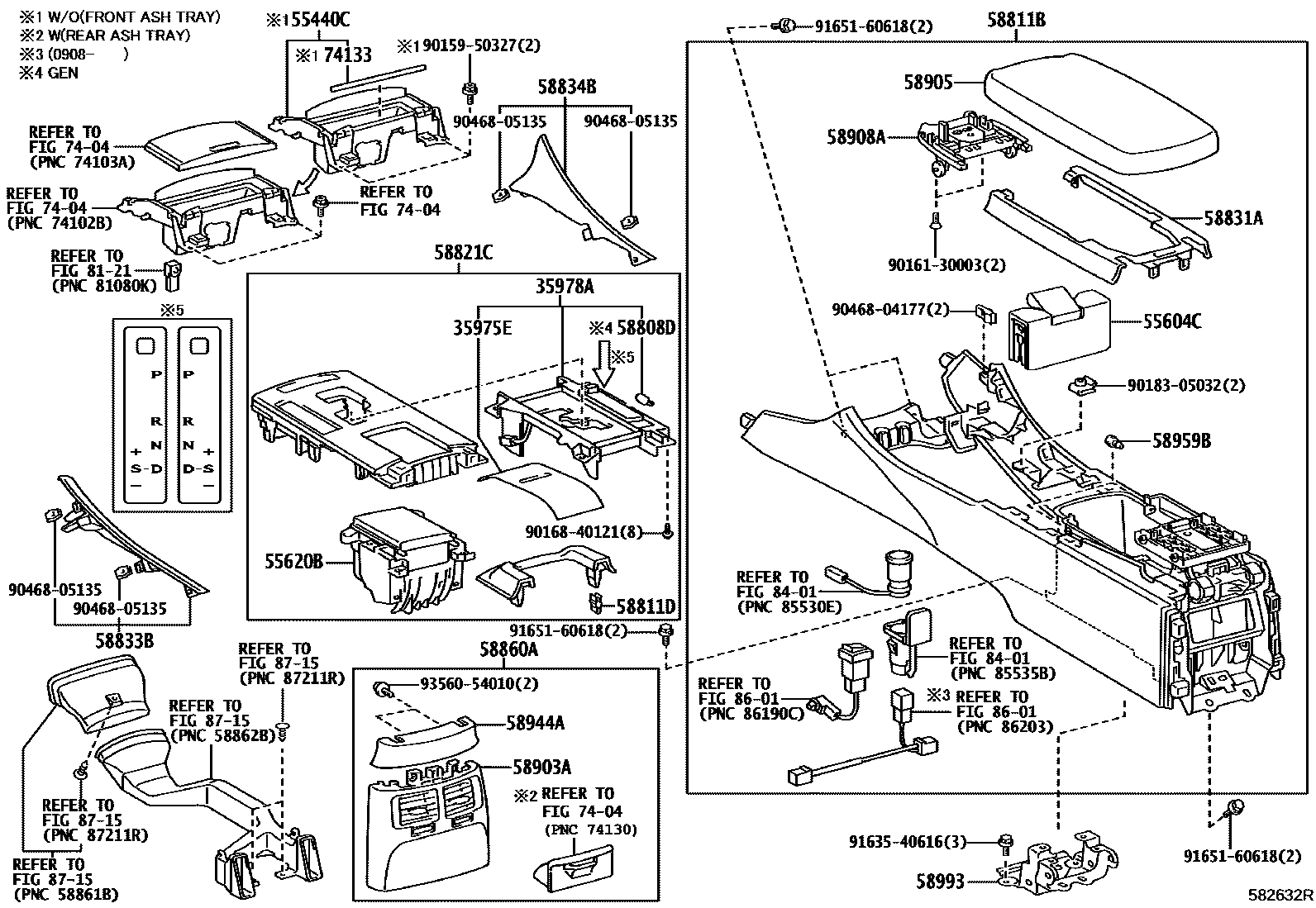

CONSOLE BOX & BRACKET
35975ECOVER, SLIDE (FOR POSITION INDICATOR)
35978AINDICATOR, SHIFT POSITION
55440CBOX ASSY, INSTRUMENT PANEL
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
FRONT SEAT-FABRIC, POWER SEAT
PHILIPPINE SPEC
CHINA SPEC&&FRONT SEAT-SMOOTH LEATHER
GRAY,TRIM11,21,41
GRAY,TRIM11,21
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,GRAY,TRIM11,21
BROWN,TRIM03,13,23,43
BROWN,TRIM03,13,23
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BROWN,TRIM03,13,23
LT.BROWN,TRIM00,40
LT.BROWN,TRIM00
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,LT.BROWN,TRIM00
58808DSHIFT INDICATOR LAMP BULB
58811BBOX, CONSOLE
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM1#
BLACK/LT.GRAY,TRIM1#,2#
ORCHID BROWN/IVORY,TRIM0#
NEW IVORY/IVORY/ORC.BROWN,TRIM02
58811DCLIP(FOR CONSOLE BOX)
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK/GRAY,TRIM11,21
BLACK/GRAY,TRIM11,21,41
BLACK/LT.BROWN,TRIM40
BLACK,TRIM13,23,43
BLACK,TRIM13,23
ORCHID BROWN/LT.BROWN,TRIM00
ORCHID BROWN/DK.BROWN,TRIM03
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
FROSTY GRAY,TRIM1#
DK.GRAY,TRIM2#
IVORY,TRIM0#
BLACK,TRIM1#,2#
ECRU/MD.BROWN,TRIM0#
ECRU/MD.BROWN,TRIM00,03
NEW IVORY/IVORY,TRIM02
BLACK/LT.GRAY,TRIM1#,2#
BLACK/SADDLE TAN,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
IVORY,TRIM02
IVORY,TRIM0#
IVORY,TRIM0#
ECRU,TRIM0#
ECRU,TRIM00,03
FROSTY GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58944ACOVER, CONSOLE, REAR
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
7404
74133SEAL, FRONT ASH RECEPTACLE
8121
8401
8601
8715
9015950327
9016130003
9016840121
9018305032
9046804177
9046805135
9163540616
9165160618
9356054010
34 parts on this diagram · 1 diagram in section
