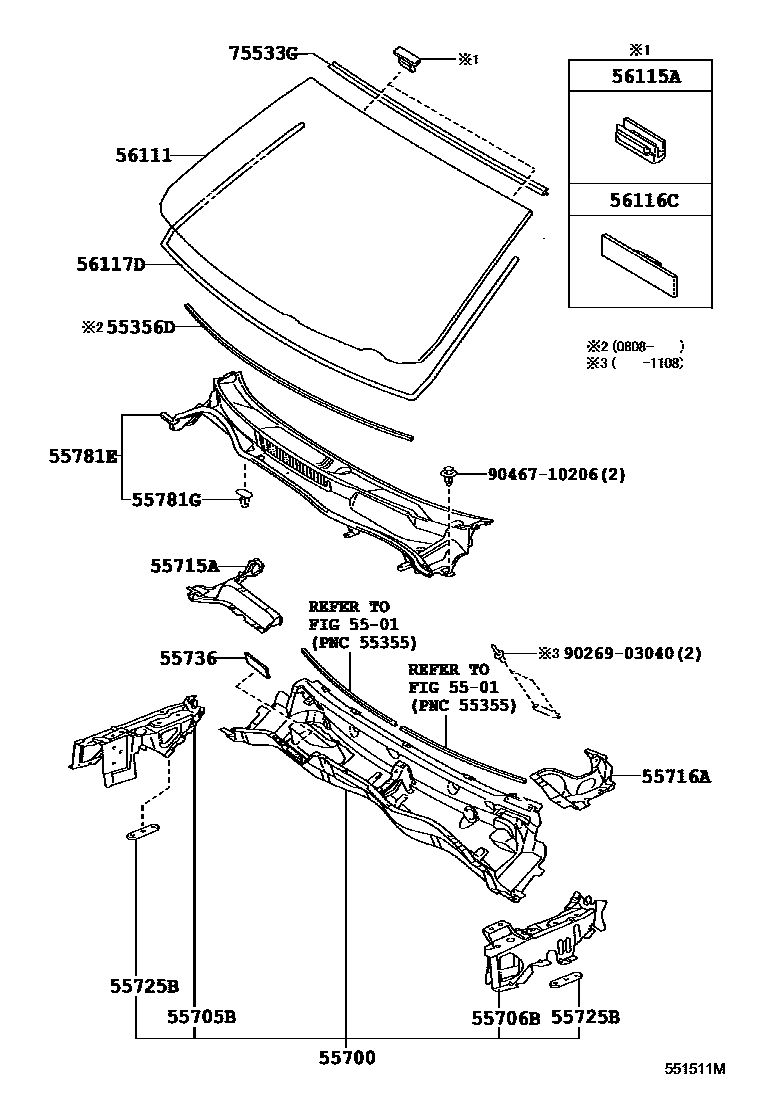

COWL PANEL & WINDSHIELD GLASS
5501
55356DCUSHION, INSTRUMENT PANEL, NO.2
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55736SEAL, WATER GUARD PLATE
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.7,GREEN
*LAM,T=4.7,GREEN
*LAM,T=4.7,GREEN
*LAM,T=4.7,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=2665
L=2665,BRAZIL SPEC
L=2665,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)
L=2665,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
75533GMOULDING, WINDSHIELD, OUTSIDE
9026903040
main90269-03040
9046710206
main90467-10206
18 parts on this diagram · 2 diagrams in section
