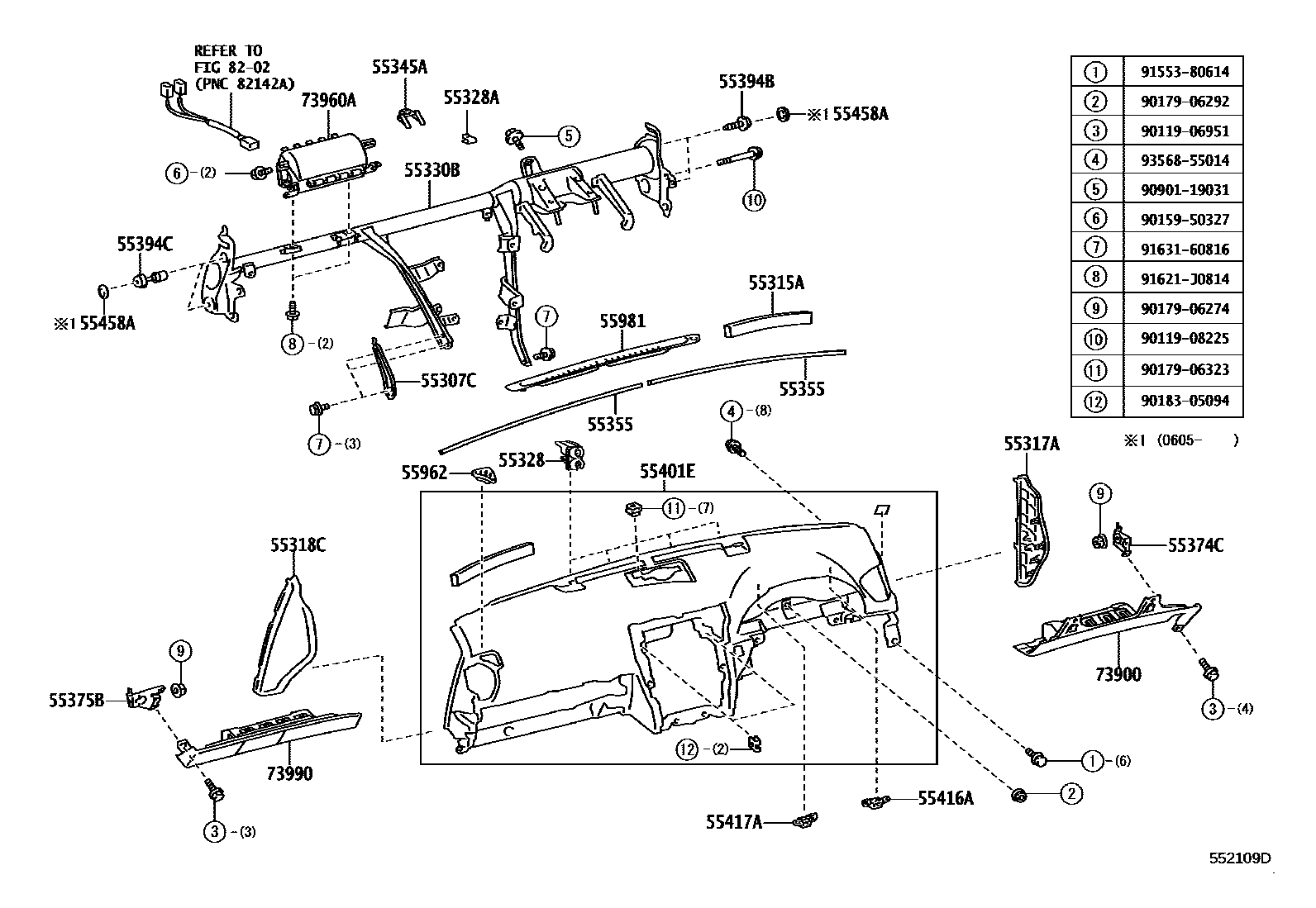

INSTRUMENT PANEL & GLOVE COMPARTMENT
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
ORCHID BROWN,TRIM0#
55328PIN, INSTRUMENT PANEL, NO.1
55355CUSHION, INSTRUMENT PANEL, NO.1
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
sub55400-53903
sub55400-53904
55416ARETAINER, METER HOOD, NO.1
55417ARETAINER, METER HOOD, NO.2
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#
ORCHID BROWN,TRIM0#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
ORCHID BROWN,TRIM0#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
8202
9011906951
main90119-06951
9011908225
main90119-08225
9015950327
main90159-50327
9017906274
main90179-06274
9017906292
main90179-06292
9017906323
main90179-06323
9018305094
main90183-05094
9090119031
main90901-19031
9155380614
main91553-80614
91621J0814
main91621-J0814
9163160816
main91631-60816
9356855014
main93568-55014
35 parts on this diagram · 15 diagrams in section
