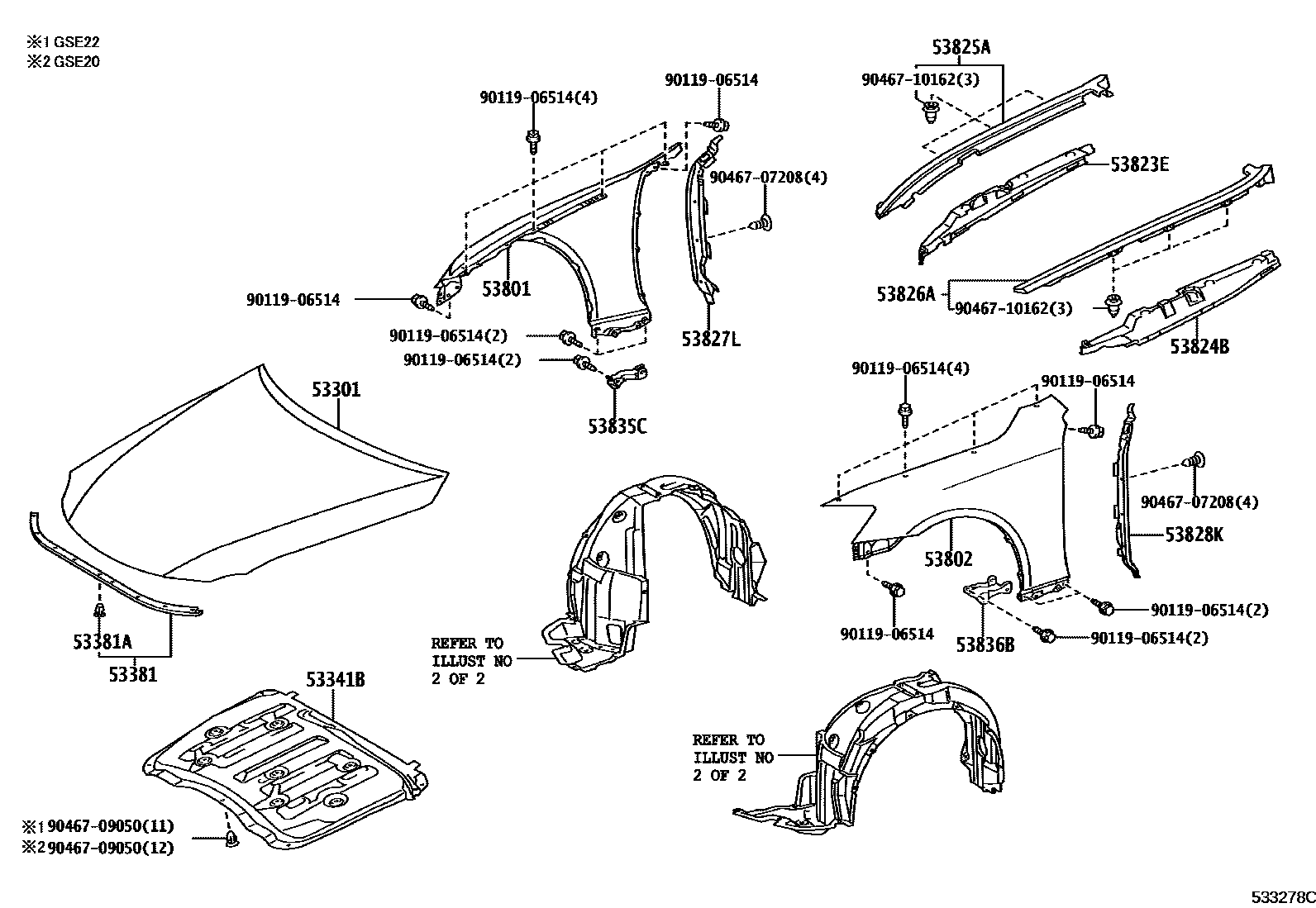

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-53030iGSE2#201008-201304

53341BINSULATOR, HOOD

main53341-53030iGSE20201008

main53341-53040iGSE22..GCC200607-200808

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53020iGSE22..GEN200604-200808

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iGSE2#201008

53801FENDER SUB-ASSY, FRONT RH

main53801-53050iGSE22200604-200808

main53801-53060iGSE22200808-201008

main53801-53130iGSE2#..GCC201108-201304

FB PACKAGE

53802FENDER SUB-ASSY, FRONT LH

main53802-53050iGSE22200604-200808

main53802-53060iGSE22200808-201008

main53802-53130iGSE2#..GCC201108-201304

FB PACKAGE

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-53010iGSE22..GCC200607-200808

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-53010iGSE22..GEN200604-200808

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-53011iGSE22..GEN200604-200808

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-53011iGSE22..GEN200604-200808

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-53020iGSE22..GEN200604-200808

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53020iGSE22..GEN200604-200808

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-53010iGSE22200604-200808

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-53010iGSE22200604-200808

9011906514

main90119-06514

9046707208

main90467-07208

9046709050

main90467-09050

9046710162

main90467-10162

18 parts on this diagram · 2 diagrams in section
