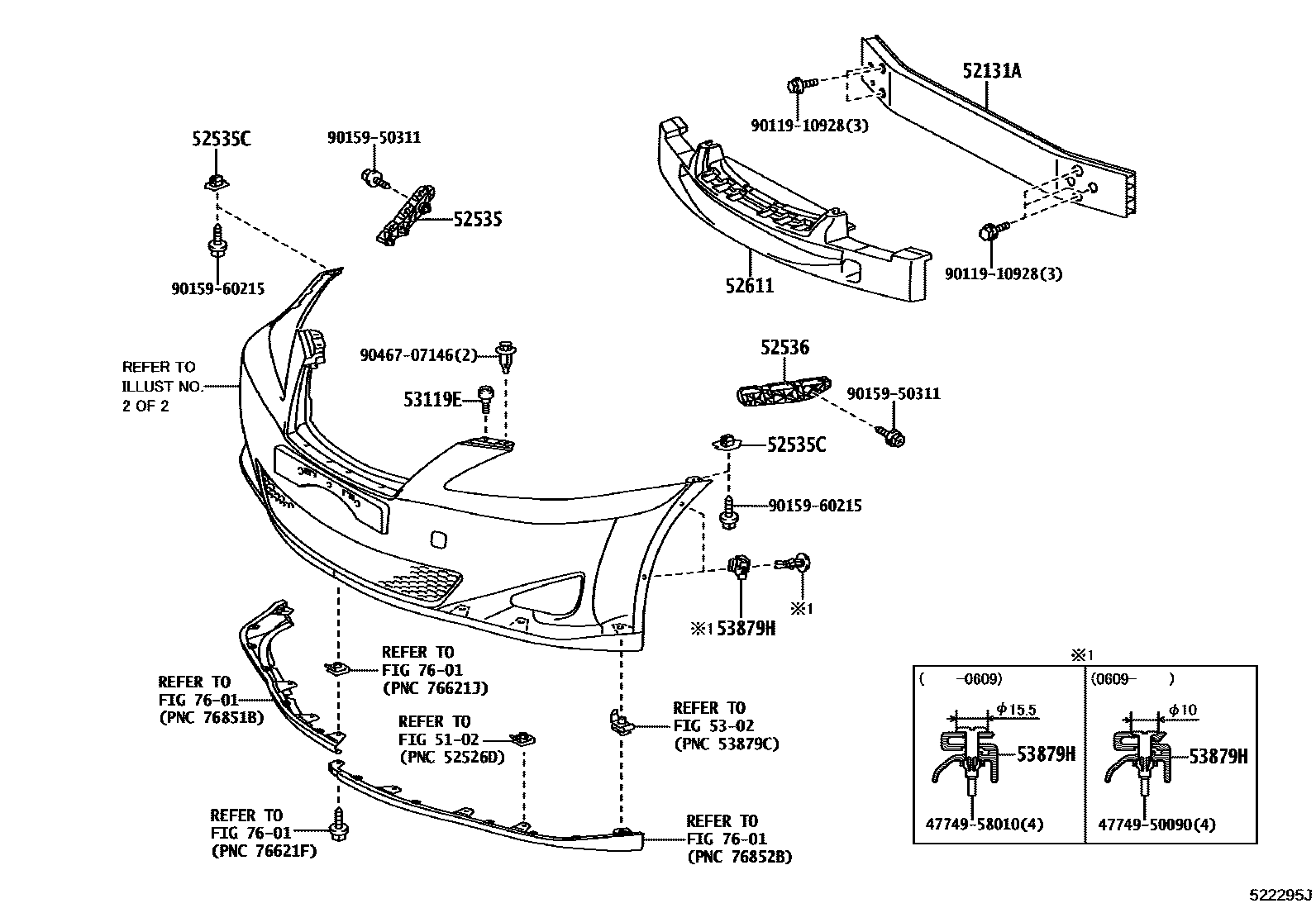

FRONT BUMPER & BUMPER STAY
5102
52131AREINFORCEMENT, FRONT BUMPER
PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH
PHILIPPINE SPEC
CHINA SPEC
CHINA SPEC&CLEARANCE & BACK SONAR-WITH
BRAZIL SPEC
BRAZIL SPEC&CLEARANCE & BACK SONAR-WITH
52535CRETAINER, FRONT BUMPER SIDE
52611ABSORBER, FRONT BUMPER ENERGY
CHINA SPEC
PHILIPPINE SPEC
PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH
CHINA SPEC&CLEARANCE & BACK SONAR-WITH
PHILIPPINE SPEC
BRAZIL SPEC
CHINA SPEC
CHINA SPEC&CLEARANCE & BACK SONAR-WITH
PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH
BRAZIL SPEC&CLEARANCE & BACK SONAR-WITH
5302
53879HRETAINER, FRONT FENDER LINER
7601
4774950090CLIP, PIN HOLD
main47749-50090
4774958010CLIP, PIN HOLD
main47749-58010
9011910928
main90119-10928
9015950311
main90159-50311
9015960215
main90159-60215
9046707146
main90467-07146
16 parts on this diagram · 6 diagrams in section
