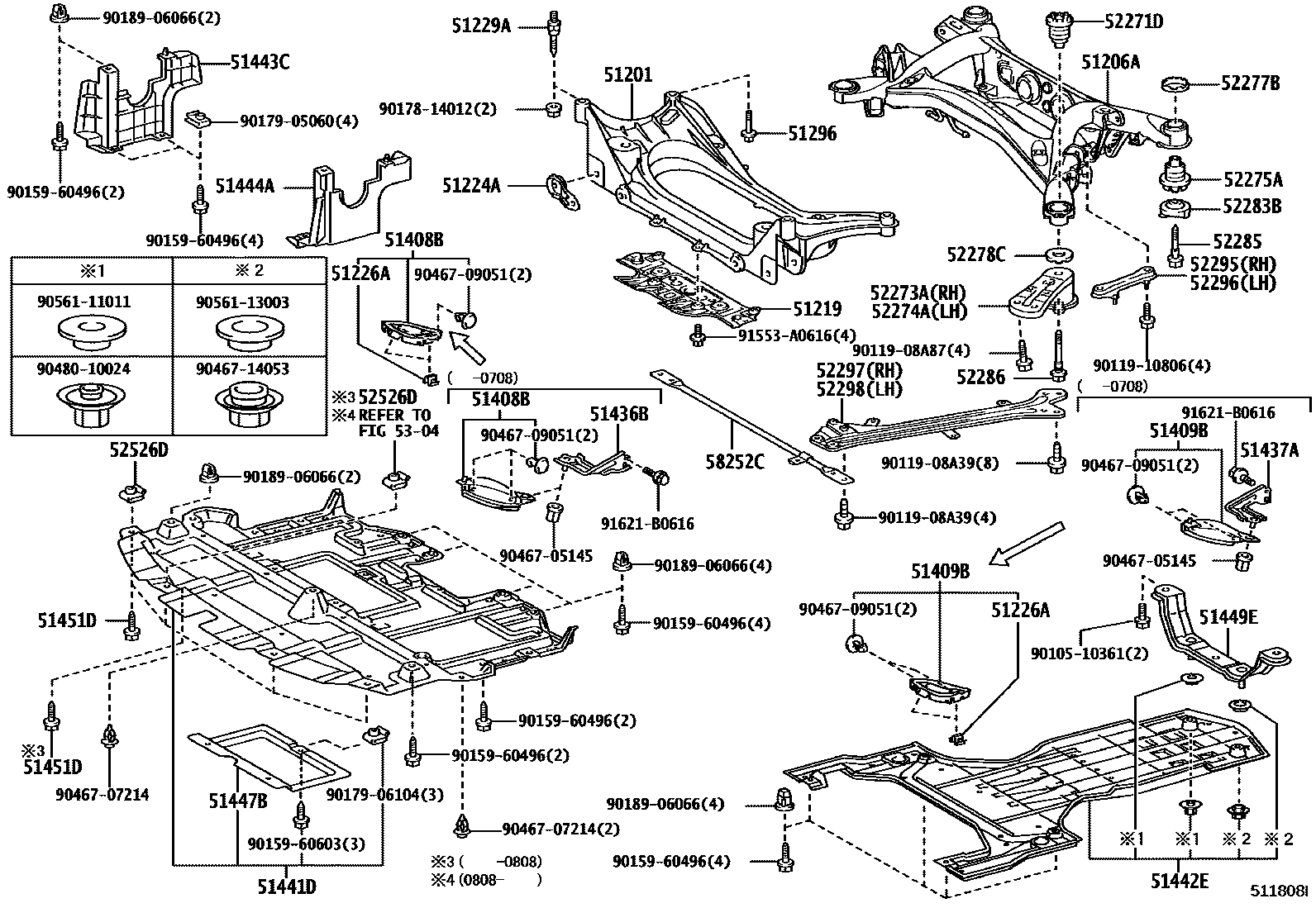

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGSE22200604-200808

main51201-30140iGSE2#201012

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080iGSE22200604-200808

main51206-30081iGSE22200901-201008

sub51206-30082

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iGSE22200604-200808

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030×2iGSE22200604-200808

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-30020×2iGSE22200709-200808

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004×2iGSE22200604-200808

main90951-01006×2iGSE2#201111

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013×2iGSE22200604-200808

main90119-16021×2iGSE2#201111

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-30050iGSE22200604-200708

main51408-30060iGSE22200709-200808

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-30050iGSE22200604-200708

main51409-30060iGSE22200709-200808

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-30030iGSE22200604-200709

51437ABRACKET, ENGINE SIDE COVER, NO.1 LH

main51437-30010iGSE22200604-200709

51441DCOVER, ENGINE UNDER

main51410-53060iGSE22200604-200808

main51410-53090iGSE22200808-200907

main51410-53091iGSE22200908-201008

main51410-53120iGSE2#201008

51442ECOVER, ENGINE UNDER, NO.2

main51442-30150iGSE22200604-200808

main51442-30151iGSE22200908-201008

main51442-30152iGSE2#201106-201108

main51442-30181iGSE2#201108

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30140iGSE22200604-200808

main51443-30141iGSE22200908-201008

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30170iGSE22200604-200808

main51444-30171iGSE22200908-201008

51447BPROTECTOR, OIL PAN

main51447-53010iGSE22200604-200808

main51447-53011iGSE22200908-201008

51449EBRACKET, ENGINE UNDER COVER AIR GUIDE

main51449-53030iGSE22200604-200808

main51449-30100iGSE20201108

F PACKAGE

51451DSCREW, NO.1

main90159-60477×6iGSE22200604-200808

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30120×2iGSE22200808-201008

main52271-53030×2iGSE22200604-200808

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iGSE22200808-201008

main52203-53020iGSE22200604-200808

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iGSE22200808-201008

main52204-53020iGSE22200604-200808

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130×2iGSE22200808-201008

main52275-53030×2iGSE22200604-200808

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060×2iGSE22201003-201008

*258

main52277-30070×2iGSE22201003-201008

*259

main52277-53020×2iGSE22200604-200808

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050×2iGSE2#201008

*258

main52278-30080×2iGSE2#201008

*259

main52278-53020×2iGSE22200604-200808

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060×2iGSE22200604-200808

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2iGSE22200604-200808

main90119-14154×2iGSE2#201207

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020×2iGSE22200604-200808

main90119-14148×2iGSE2#201303-201304

REFER ILLUST.

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGSE22200604-200808

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGSE22200604-200808

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030iGSE22200604-200808

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030iGSE22200604-200808

52526DRETAINER, FRONT BUMPER, LOWER

main52526-53020×2iGSE2#201008-201304

5304

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-53010iGSE22200808-201008

9010510361

main90105-10361

9011908A39

main90119-08A39

9011908A87

main90119-08A87

9011910806

main90119-10806

9015960496

main90159-60496

9015960603

main90159-60603

9017814012

main90178-14012

9017905060

main90179-05060

9017906104

main90179-06104

9018906066

main90189-06066

9046705145

main90467-05145

9046707214

main90467-07214

9046709051

main90467-09051

9046714053

main90467-14053

9048010024

main90480-10024

9056111011

main90561-11011

9056113003

main90561-13003

91553A0616

main91553-A0616

91621B0616

main91621-B0616

53 parts on this diagram · 2 diagrams in section
