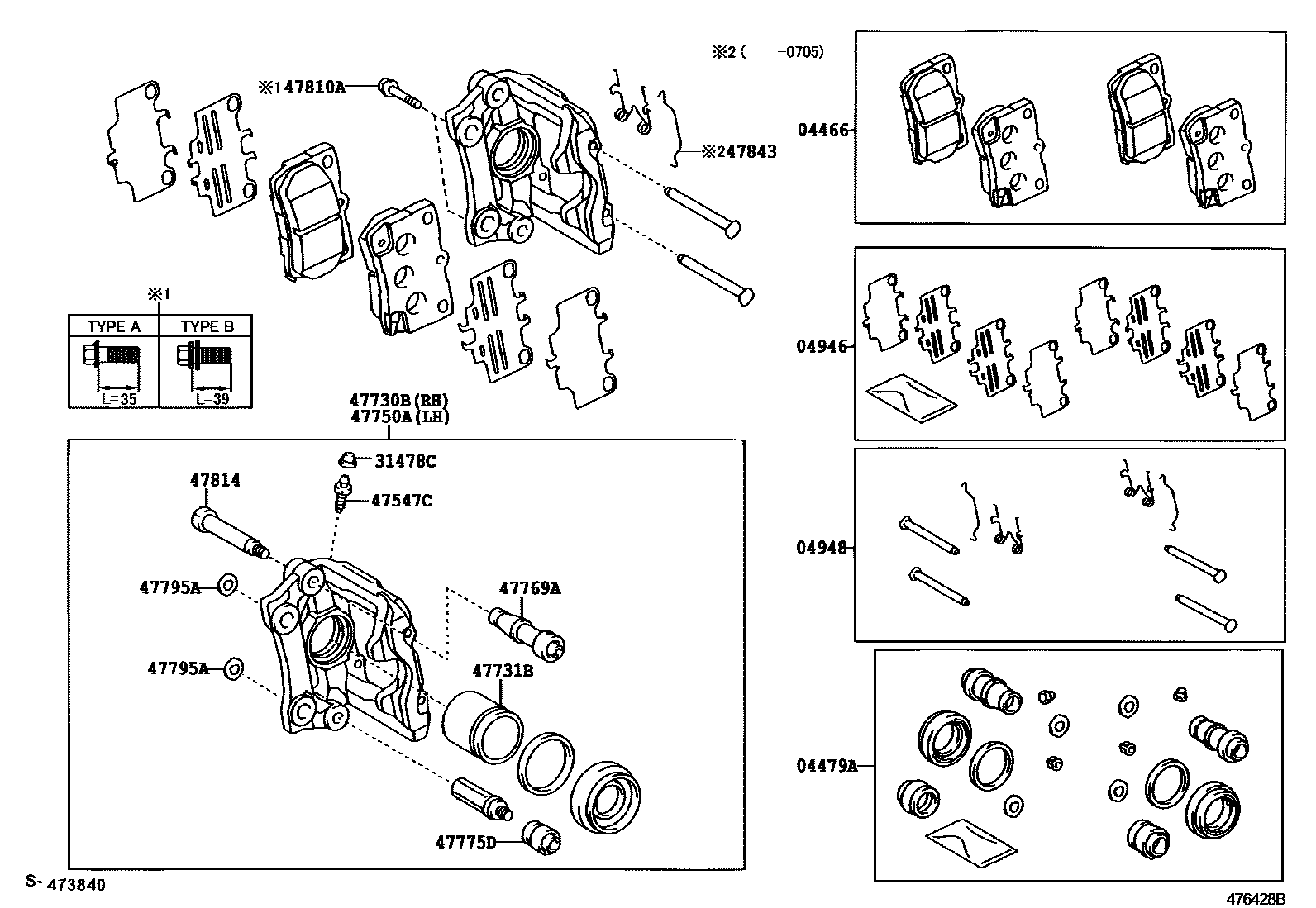

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGSE2#..GCC201008-201304

MARK NBK PN529H

main04466-53010supersedes 04466-22190iGSE22..GCC200808-201008

MARK NBK PN529H,PHILIPPINE SPEC

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30450iGSE22..GEN200604-200709

main04479-30510iGSE22..GCC200808-201008

ARGENTINA SPEC

main04479-53070supersedes 04479-61040iGSE22..GCC201104

PHILIPPINE SPEC

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110supersedes 04946-22090iGSE22..GCC201008

PHILIPPINE SPEC

04948FITTING KIT, DISC BRAKE, REAR

main04948-30140iGSE22..GEN200604-200705

main04948-30210iGSE2#..GCC201008

main04948-30220supersedes 04948-30210iGSE22..GCC200705-200808

PHILIPPINE SPEC

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGSE22200808-201008

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGSE22200808-201008

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-53051supersedes 47830-22221iGSE22..GEN200604-200808

main47830-53052supersedes 47830-30400iGSE22..GCC201212-201304

PNC 47810A=TYPE B

47731BPISTON, REAR DISC BRAKE

main47831-30300×2supersedes 47831-22220iGSE22..GCC201008-201304

PHILIPPINE SPEC

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-53051supersedes 47850-22221iGSE22..GEN200604-200808

main47850-53052supersedes 47850-30400iGSE22..GCC201212-201304

PNC 47810A=TYPE B

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300×2iGSE22200604-200808

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-22221×2iGSE22200604-200707

main47875-30340×2iGSE22200707-200808

main47875-30341×2iGSE2#201104-201304

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iGSE2#201008-201304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGSE22200808-201008

main90119-12416×4iGSE2#201212

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iGSE2#201008-201304

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300×2iGSE22200604-200705

15 parts on this diagram · 1 diagram in section
