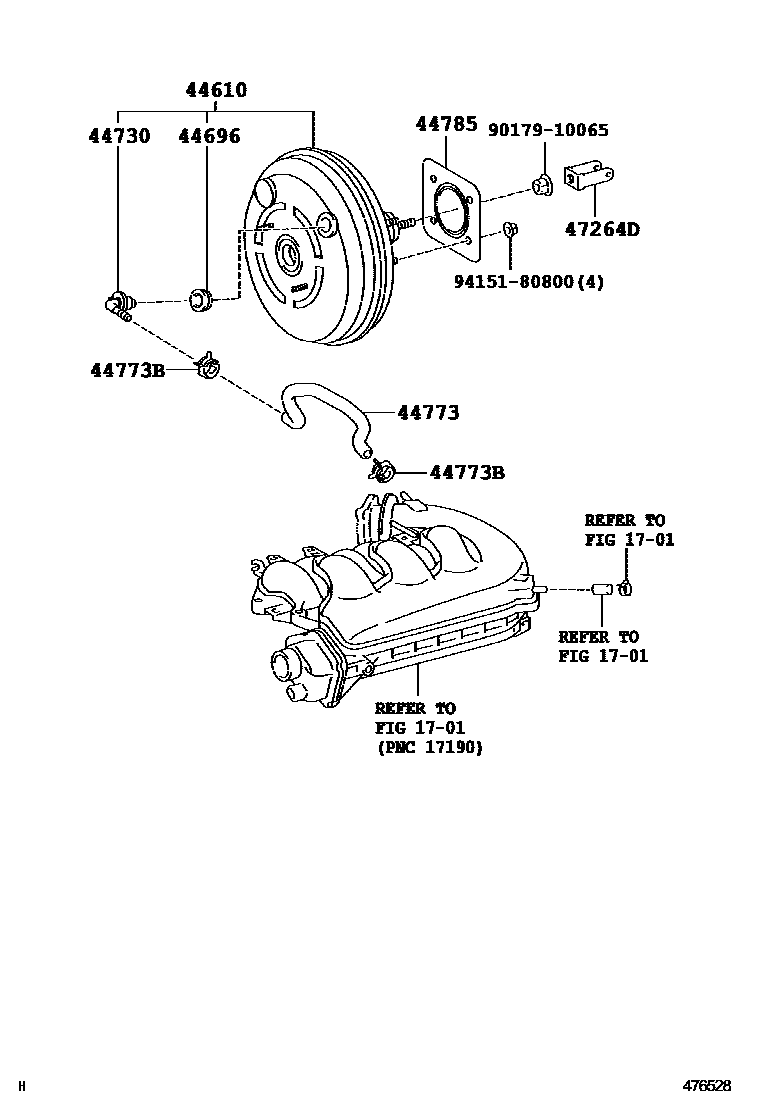

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-53281supersedes 44610-53290iGSE22..GCC201008-201304

BRAZIL SPEC

main44610-53320iGSE22..GEN200604-200808

main44610-53321iGSE22..GEN201008-201304

main44610-53280supersedes 44610-53290iGSE22..GCC200607-200808

CHINA SPEC

44696GROMMET, CHECK VALVE

main90480-24439supersedes 90480-24015iGSE22..GEN200604-200808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070supersedes 44730-28010iGSE20;GSE22..GEN201008-201304

BRAZIL SPEC

44773HOSE, VACUUM, NO.2

main44773-53060iGSE22..GEN201008

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014×2iGSE22200808-201008

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE2#201008

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSE22200604-200808

9017910065

main90179-10065

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
