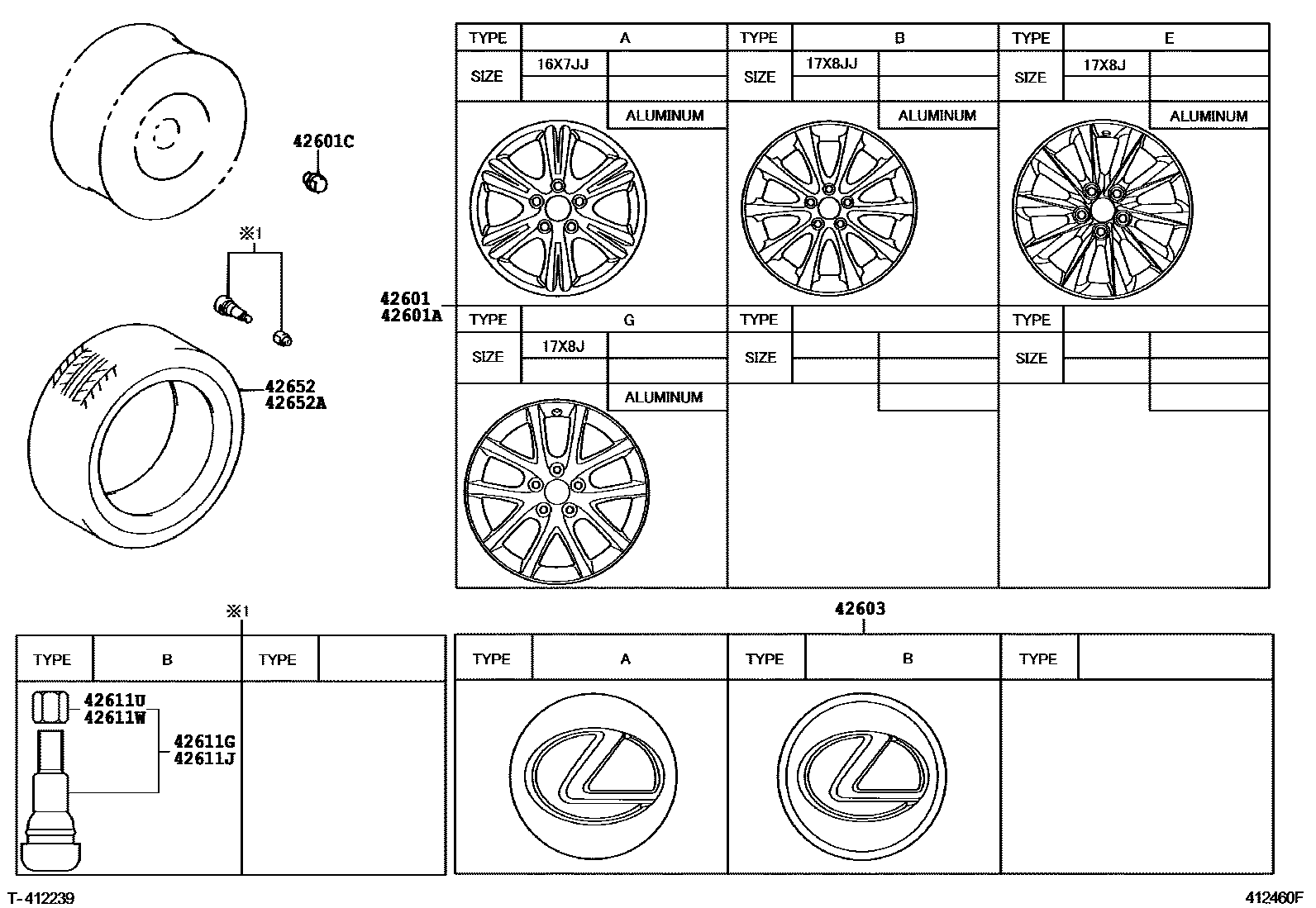

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-53150×4i200607-200708

17X8JJ,#,TYPE B:REFER ILLUST.

sub42611-53350

main42611-53240×4supersedes 42611-53300i200708-200808

17X8JJ,#,TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES,TYPE B:REFER ILLUST.

sub42611-53370

main42611-53330×4supersedes 42611-53140i201008-201304

17X8J,#,TYPE G:REFER ILLUST.

sub42611-53331

main42611-53340×4i201008-201304

17X8J,#,CHINA SPEC,TYPE G:REFER ILLUST.

sub42611-53341

main4261A-53250×4i201208-201304

17X8J,#,SADDLE TAN PACKAGE,TYPE G:REFER ILLUST.

sub4261A-53251

main4261A-53260×4i201009-201108

17X8J,#,CHINA SPEC&ART WORKS,TYPE G:REFER ILLUST.

sub4261A-53261

42601AWHEEL, DISC (FOR SPARE)

main42611-53150i200607-200708

17X8JJ,#,TYPE B:REFER ILLUST.

sub42611-53350

main42611-53240supersedes 42611-53300i200708-200808

17X8JJ,#,TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES,TYPE B:REFER ILLUST.

sub42611-53370

main42611-53330supersedes 42611-53140i201008

17X8J,#,TYPE G:REFER ILLUST.

sub42611-53331

main42611-53340i201008

17X8J,#,CHINA SPEC,TYPE G:REFER ILLUST.

sub42611-53341

main4261A-53250i201008-201108

17X8J,#,BRUNEI SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN,ART WORKS,TYPE G:REFER ILLUST.

sub4261A-53251

main4261A-53260i201009-201108

17X8J,#,CHINA SPEC&ART WORKS,TYPE G:REFER ILLUST.

sub4261A-53261

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201008-201304

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30540×4supersedes 42603-50300i200604-200708

*ALU,TYPE A:REFER ILLUST.

main42603-50300×4supersedes 42603-30540i200808-201008

*ALU,TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES,TYPE A:REFER ILLUST.

main42603-30550×4i201208

*CHR,SADDLE TAN PACKAGE,TYPE B:REFER ILLUST.

sub42603-30551

main42603-30590×4i201008-201108

*CHR,ART WORKS,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4supersedes 90942-05028i200604-200808

TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05028supersedes 90942-05028i200604-200808

TYPE B:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-05029×4i200604-200808

TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05029i201008

42652TIRE

main42652-53421×2i201008-201304

225/45R17 *B/S

main42652-53441×2i201008-201304

245/45R17 *B/S

main42652-53170×4supersedes 42652-53441i200607-200704

205/55R16 *B/S,CHINA SPEC&TIRE & DISC WHEEL-205/55R16,7.0J,ALUMI

main42652-53410×2supersedes 42652-53160i201008-201304

225/45R17 *B/S,TIRE & DISC WHEEL-225/45R17+245/45R17,GEN

main42652-53430×2supersedes 42652-53160i201008-201304

245/45R17 *B/S,TIRE & DISC WHEEL-225/45R17+245/45R17,GEN

main42652-53610×4supersedes 42652-53441i200704-200808

205/55R16 *B/S,CHINA SPEC&TIRE & DISC WHEEL-205/55R16,7.0J,ALUMI

main42652-53620×2supersedes 42652-53441i200808-201008

225/45R17 *B/S,CHINA SPEC

main42652-53630×2supersedes 42652-53441i200808-201008

245/45R17 *B/S,CHINA SPEC

42652ATIRE (FOR SPARE)

main42652-53421i201008-201304

225/45R17 *B/S

main42652-53170supersedes 42652-53421i200607-200704

205/55R16 *B/S,CHINA SPEC&TIRE & DISC WHEEL-205/55R16,7.0J,ALUMI

main42652-53410supersedes 42652-53160i200604-200808

225/45R17 *B/S,TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES

main42652-53610supersedes 42652-53421i200704-200808

205/55R16 *B/S,CHINA SPEC&TIRE & DISC WHEEL-205/55R16,7.0J,ALUMI

main42652-53620supersedes 42652-53421i201008-201108

225/45R17 *B/S,CHINA SPEC&ART WORKS

10 parts on this diagram · 2 diagrams in section
