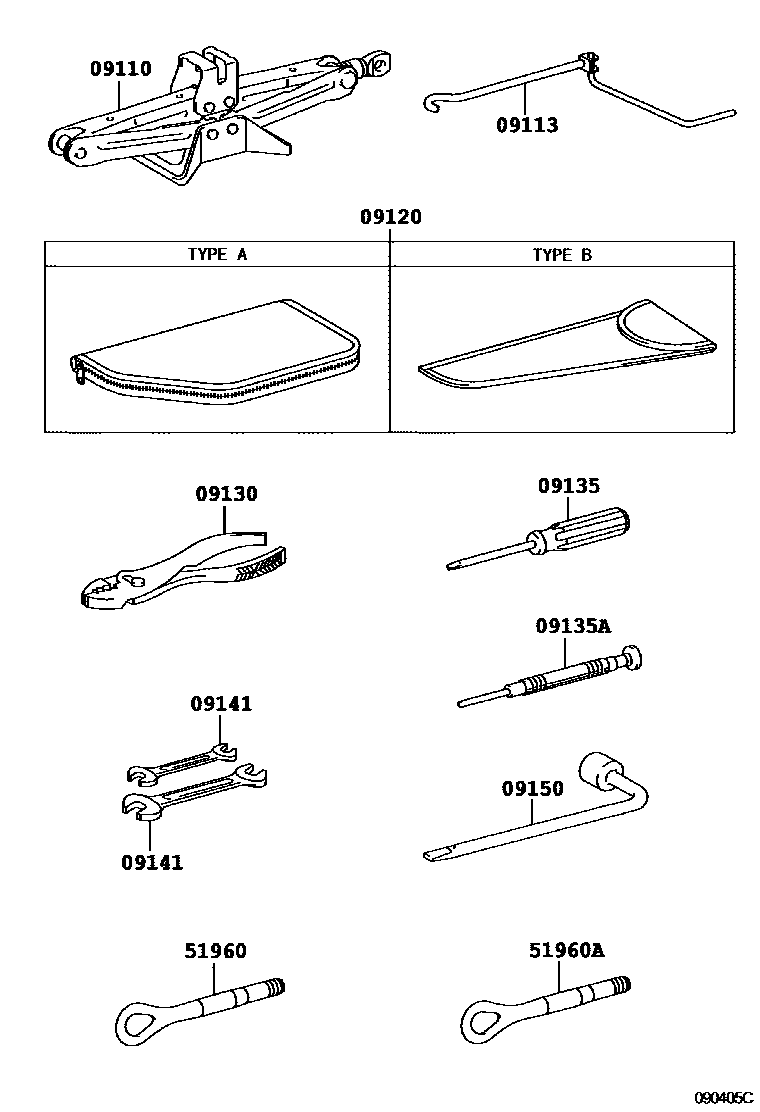

STANDARD TOOL

09110JACK ASSY

main09111-33030iGSE2#201010

sub09111-76010

main09111-50051iGSE22200604-201009

sub09111-76011

09113HANDLE, JACK

main09113-44010iGSE22200604-201008

09120BAG, TOOL

main09120-28020iGSE2#200604-201008

TYPE B:REFER ILLUST.

main09120-53010iGSE22200604-201008

TYPE A:REFER ILLUST.

09130PLIERS

main09130-50030iGSE22200604-200908

main09130-50040iGSE22200908-201008

CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main09130-50040iGSE2#201008

09135DRIVER, SCREW

main09135-50040iGSE22200604-200908

main99915-10700iGSE22200908-201008

CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main99915-10700iGSE2#201008

09135ABIT, SCREW DRIVER

09141SPANNER

main09141-50050iGSE22200604-200908

8 X 10

main09141-50060iGSE22200604-200908

12 X 14

main09141-60010iGSE22..GCC200908-201008

8 X 10

main09141-60010iGSE22..GCC200908-201008

8 X 10,CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main09141-60020iGSE2#200908-201008

12 X 14

main09141-60020iGSE22200908-201008

12 X 14,CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

09150WRENCH, HUB NUT BOX

main09150-50010iGSE22200604-200908

sub09150-53010

main09150-53010iGSE22200908-201206

sub09150-76020

main09150-76020iGSE2#201206-201304

51960HOOK ASSY, FRONT

main51961-30020iGSE22200604-200711

main51961-53010iGSE22200712-201008

51960AHOOK ASSY, REAR

main51961-30020iGSE22200604-200711

main51961-53010iGSE22200712-201008

10 parts on this diagram · 1 diagram in section
