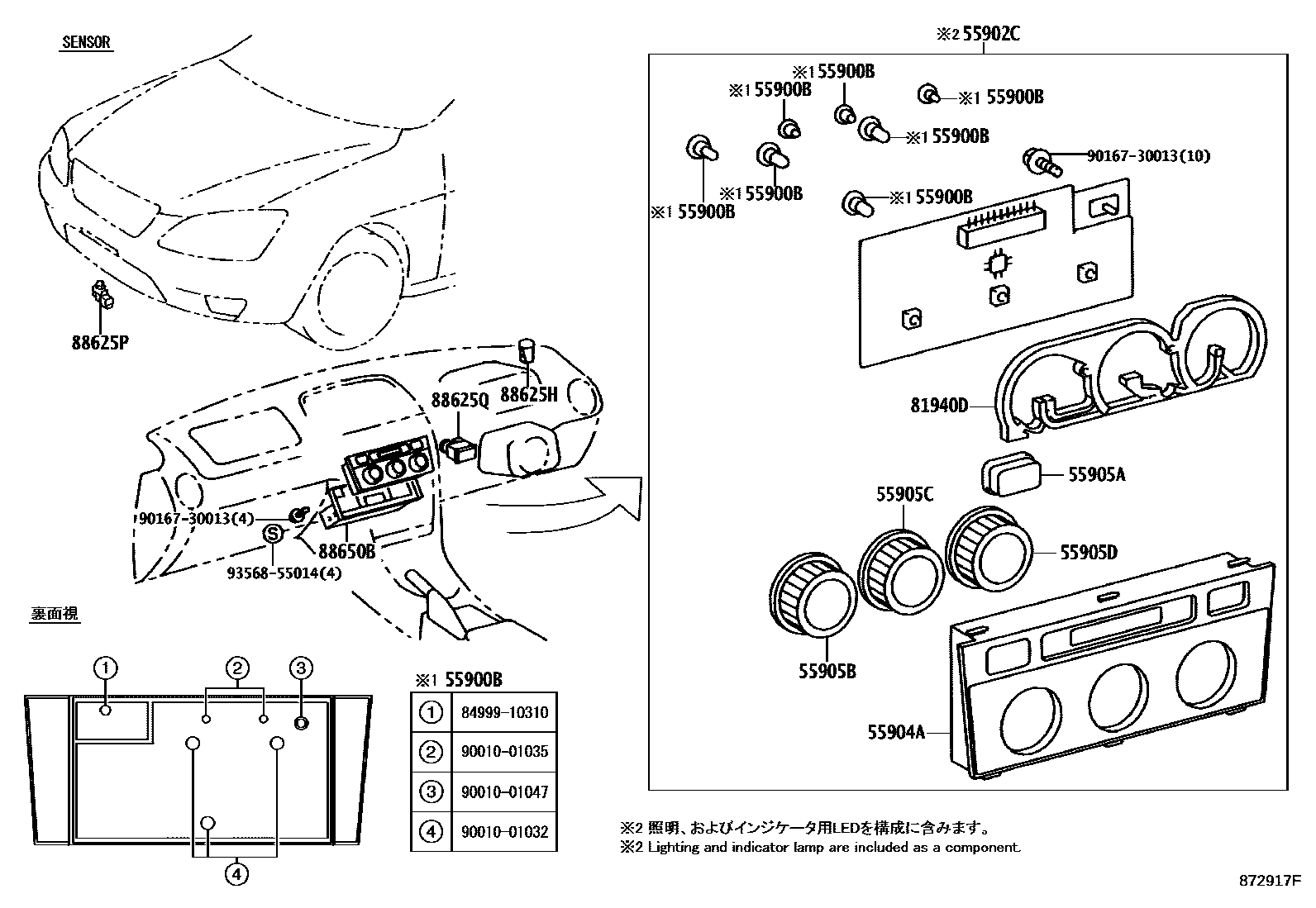

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL & SENSOR 0002 1CONTROL & SENSOR 0003 1AIR DUCT 0004 1AIR DUCT

55900BBULB, AIR CONDITIONER CONTROL

main84999-10310iGXE10..EUR199901-200507

14V 0.91W

main84999-10360iGXE10200005-200107

14V 1.4W

main90010-01032iGXE10,JCE10199901-200507

14V1.4W,W(UMBER CAP)

main90010-01035iGXE10199901-200507

14V0.7W,W/ORANGE CAP

main90010-01047iGXE10,JCE10199901-200507

14V,1.4W

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-53010iGXE10..ARL199901-200005

main55902-53020iGXE10..RHD..EUR199901-200005

sub55902-53010

main55902-53030iGXE10..LHD199901-200005

sub55902-53010

main55902-53050iGXE10..RHD..EUR200005-200107

sub55902-53070

main55902-53060iGXE10..LHD200005-200107

sub55902-53070

main55902-53070iGXE10..ARL200005-200107

main55902-53100iGXE10,JCE10..ARL200107-200308

sub55902-53150

main55902-53110iGXE10,JCE10..RHD..EUR200107-200308

main55902-53111iGXE10,JCE10..RHD..EUR200308

main55902-53120iGXE10,JCE10..LHD200107-200308

sub55902-53121

main55902-53121iGXE10,JCE10..LHD200308

main55902-53150iGXE10,JCE10..ARL200308

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-53010iGXE10..ARL199901-200107

sub55904-53050

main55904-53020iGXE10..RHD..EUR199901-200107

sub55904-53060

main55904-53030iGXE10..LHD199901-200010

sub55904-53031

main55904-53031iGXE10..LHD200010-200107

sub55904-53070

main55904-53050iGXE10,JCE10..ARL200107-200507

main55904-53060iGXE10,JCE10..RHD..EUR200107-200507

main55904-53070iGXE10,JCE10..LHD200107-200507

55905AKNOB, HEATER CONTROL

main55905-53010iGXE10199901-200507

55905BKNOB, HEATER CONTROL, NO.2

main55905-53020iGXE10199901-200107

sub55905-52130

main55905-53050iGXE10,JCE10..RHD200107-200308

sub55905-53090

main55905-53060iGXE10,JCE10..LHD200107-200308

sub55905-53050

main55905-53090iGXE10,JCE10..RHD200308

main55905-53100iGXE10,JCE10..LHD200308

55905CKNOB, HEATER CONTROL, NO.3

main55905-53030iGXE10199901-200308

sub55905-52140

main55905-53070iGXE10,JCE10200308

55905DKNOB SUB-ASSY, CONTROL

main55905-53040iGXE10,JCE10199901-200308

sub55905-52150

main55905-53080iGXE10,JCE10200308

81940DLENS ASSY, HEATER CONTROL

main81940-53010iGXE10199901-200507

88625HTHERMISTOR, COOLER (SOLAR SENSOR)

main88625-33150iGXE10199901-200107

88625PTHERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

main88790-22130iGXE10199901-200201

sub88790-22131

main88790-22131iGXE10,JCE10200201

88625QTHERMISTOR, COOLER (ROOM TEMP. SENSOR)

main88790-22140iGXE10199901-200107

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-53010iGXE10199901-200005

main88650-53020iGXE10200005-200107

main88650-53060iGXE10,JCE10200107-200507

9016730013

main90167-30013

9356855014

main93568-55014

14 parts on this diagram · 4 diagrams in section
