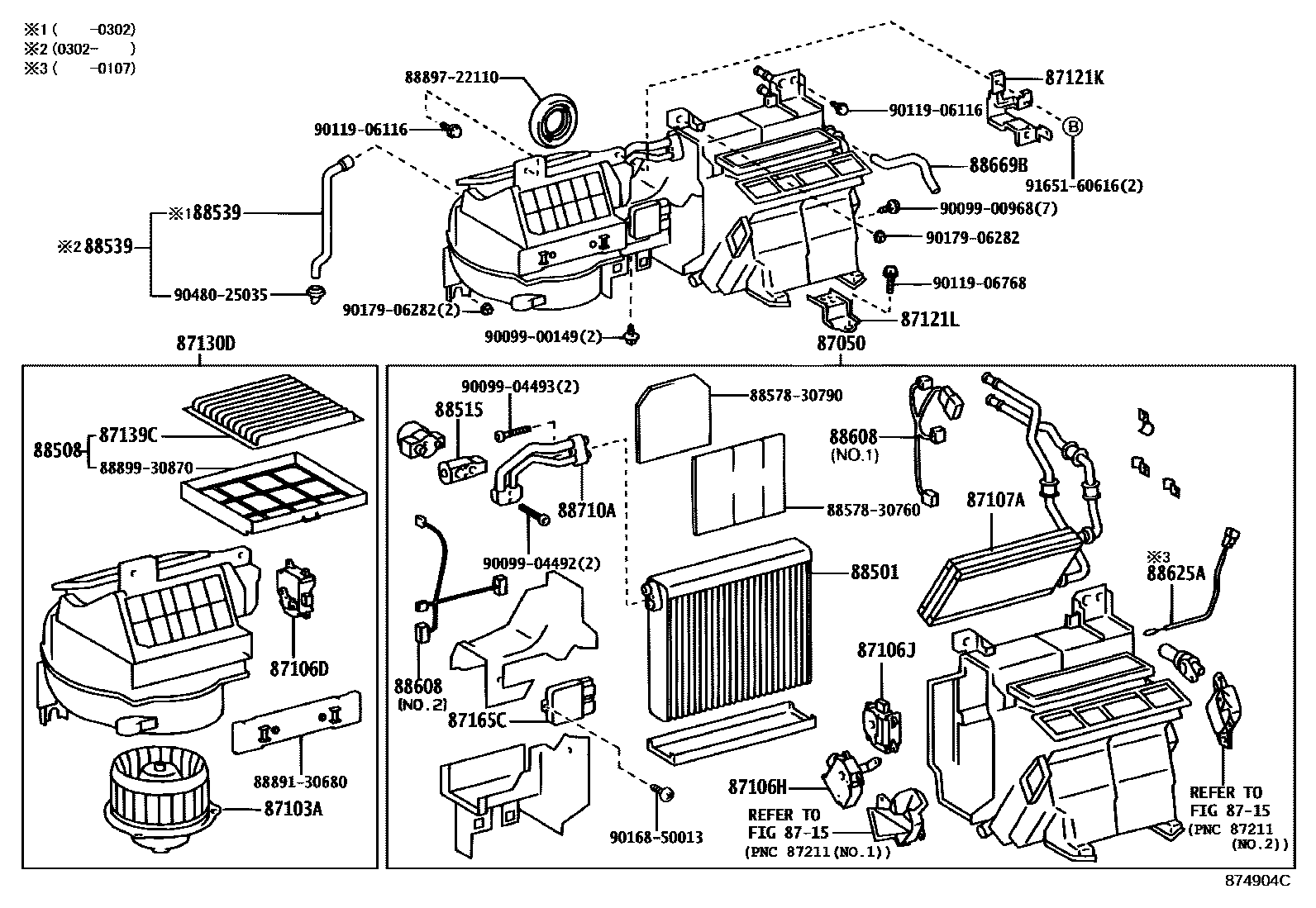

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-53010iGXE10..RHD199901-200005

main87050-53011iGXE10..RHD200005-200107

sub87050-53012

main87050-53012iGXE10..RHD200107

main87050-53020iGXE10..LHD199901-200005

main87050-53021iGXE10..LHD200005-200107

sub87050-53022

main87050-53022iGXE10..LHD200107

main87050-53050iJCE10..RHD200107

main87050-53060iJCE10..LHD200107

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-53010iGXE10,JCE10..RHD199901-200107

main87103-53020iGXE10,JCE10..LHD199901-200107

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30380iGXE10,JCE10..RHD200005-200107

main87106-30410iGXE10..LHD200005-200107

main87106-53010iGXE10..RHD199901-200005

main87106-53020iGXE10..LHD199901-200005

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30350iGXE10..RHD199901-200307

sub87106-30351

main87106-30351iGXE10,JCE10..RHD200307

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30361iGXE10..RHD199901-200107

main87106-30371iGXE10,JCE10..LHD199901-200107

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-53020iGXE10..RHD199901-200107

main87107-53030iGXE10..LHD199901-200107

main87107-53040iJCE10..LHD200107

main87107-53050iGXE10,JCE10..RHD200107

87121KBRACKET, HEATER

main87121-53010iGXE10,JCE10..LHD200005-200107

main87121-53020iGXE10,JCE10..RHD200005-200107

87121LBRACKET, HEATER

main87121-53030iGXE10200005-200107

87130DBLOWER ASSY

main87130-53020iGXE10..LHD199901-200005

main87130-53030iGXE10..RHD199901-200005

main87130-53040iGXE10..LHD200005-200107

main87130-53050iGXE10..RHD200005-200107

87139CFILTER, CLEAN AIR

main87139-48020iGXE10,JCE10199901-200107

8715

87165CCONTROL, BLOWER MOTOR

main87165-22050iGXE10199901-200107

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48010iGXE10199901-200107

main88501-53010iGXE10,JCE10200107

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iGXE10,JCE10199901-200107

88515VALVE, COOLER EXPANSION

main88515-22260iJCE10200405

main88515-28160iGXE10200405

main88515-30690iJCE10200107-200404

sub88515-22260

main88515-48040iGXE10199901-200404

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-53010iGXE10..RHD199901-200302

sub88539-53060

main88539-53020iGXE10,JCE10..LHD199901-200107

NO.1

main88539-53030iGXE10,JCE10..LHD199901-200107

NO.2

main88539-53060iGXE10,JCE10..RHD200302

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-53010iGXE10199901-200107

NO.1

sub88608-53030

main88608-53020iGXE10,JCE10199901-200107

NO.2

main88608-53030iJCE10200107

NO.1

main88608-53050iGXE10200107

NO.1

88625ATHERMISTOR, COOLER NO.2

main88625-48010iGXE10199901-200107

88669BHOSE, COOLER AIR

main88669-53010iGXE10..RHD199901-200107

main88669-53020iGXE10..LHD199901-200107

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A140iGXE10..RHD199901-200107

main88710-3A150iJCE10..LHD199901-200107

8857830760PAKING, COOLER AIR DUCT

main88578-30760

8857830790PAKING, COOLER AIR DUCT

main88578-30790

8889130680PACKING (FOR COOLER)

main88891-30680

8889722110VALVE, COOLER MAGNET

main88897-22110

8889930870COVER, EVAPORATOR

main88899-30870

9009900149

main90099-00149

9009900968

main90099-00968

9009904492

main90099-04492

9009904493

main90099-04493

9011906116

main90119-06116

9011906768

main90119-06768

9016850013

main90168-50013

9017906282

main90179-06282

9048025035

main90480-25035

9165160616

main91651-60616

35 parts on this diagram · 3 diagrams in section
