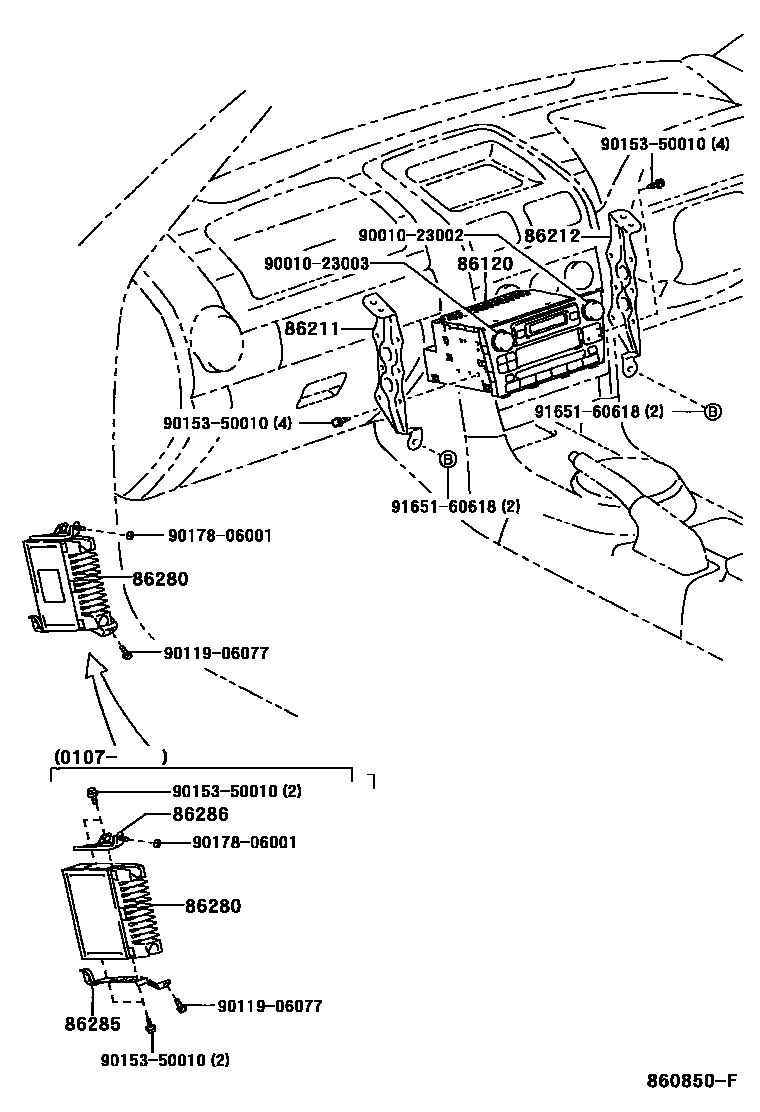

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-53030iGXE10..EUR199901-200005

FUJITSU TEN,ID=13901,TYPE A:REFER TO ILLUSTRATION

main86120-53031iGXE10..EUR200005-200107

FUJITSU TEN,ID=13904,TYPE C:REFER TO ILLUSTRATION

sub86120-53100

main86120-53040iGXE10..EUR199901-200005

FUJITSU TEN,ID=13902,TYPE A:REFER TO ILLUSTRATION & W(8 SPEAKER)

main86120-53041iGXE10..EUR200005-200107

FUJITSU TEN,ID=13903,TYPE C:REFER TO ILLUSTRATION & W(8 SPEAKER)

sub86120-53090

main86120-53050iGXE10..ARL199901-200005

FUJITSU TEN,ID=17804,TYPE B:REFER TO ILLUSTRATION & TAIWAN SPEC & W(8 SPEAKER)

main86120-53050iGXE10..ARL199901-200005

FUJITSU TEN,ID=17804,TYPE B:REFER TO ILLUSTRATION

main86120-53051iGXE10..ARL200005-200107

FUJITSU TEN,ID=17806,TYPE D:REFER TO ILLUSTRATION

sub86120-53110

main86120-53051iGXE10..ARL200005-200107

FUJITSU TEN,ID=17806,TYPE D:REFER TO ILLUSTRATION & TAIWAN SPEC & W(8 SPEAKER)

sub86120-53110

main86120-53090iGXE10,JCE10..RHD..SED..EUR200107-200308

FUJITSU TEN,ID=13906,TYPE E:REFER TO ILLUSTRATION & W(8 SPEAKER)

main86120-53090iGXE10,JCE10..RHD..SED..EUR200107-200308

FUJITSU TEN,ID=13906,TYPE E:REFER TO ILLUSTRATION & W(9 SPEAKER)

main86120-53100iGXE10,JCE10..RHD..EUR200107-200308

FUJITSU TEN,ID=13905,TYPE E:REFER TO ILLUSTRATION

main86120-53110iGXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM200107-200308

FUJITSU TEN,ID=17807,TYPE F:REFER TO ILLUSTRATION

main86120-53140iGXE10,JCE10..LHD..SED200107-200308

FUJITSU TEN,ID=13907,TYPE G:REFER TO ILLUSTRATION & W(9 SPEAKER)

main86120-53140iGXE10,JCE10..LHD..SED200107-200308

FUJITSU TEN,ID=13907,TYPE G:REFER TO ILLUSTRATION & W(8 SPEAKER)

main86120-53150iGXE10,JCE10..LHD200107-200308

FUJITSU TEN,ID=13908,TYPE G:REFER TO ILLUSTRATION

main86120-53160iGXE10,JCE10..ARL200208-200308

FUJITSU TEN,ID=17901,TYPE H:REFER TO ILLUSTRATION

main86120-53180iGXE10,JCE10..RHD..SED..EUR200308-200507

FUJITSU TEN,ID=13909,TYPE E:REFER TO ILLUSTRATION & W(8 SPEAKER)

main86120-53180iGXE10,JCE10..RHD..SED..EUR200308-200507

FUJITSU TEN,ID=13909,TYPE E:REFER TO ILLUSTRATION & W(9 SPEAKER)

main86120-53190iGXE10,JCE10..RHD..EUR200308-200507

FUJITSU TEN,ID=13910,TYPE E:REFER TO ILLUSTRATION

main86120-53200iGXE10,JCE10..LHD..SED200308-200507

FUJITSU TEN,ID=13911,TYPE G:REFER TO ILLUSTRATION & W(8 SPEAKER)

main86120-53200iGXE10,JCE10..LHD..SED200308-200507

FUJITSU TEN,ID=13911,TYPE G:REFER TO ILLUSTRATION & W(9 SPEAKER)

main86120-53210iGXE10,JCE10..LHD200308-200507

FUJITSU TEN,ID=13912,TYPE G:REFER TO ILLUSTRATION

main86120-53220iGXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM200308-200507

FUJITSU TEN,ID=17823,TYPE F:REFER TO ILLUSTRATION

main86120-53240iGXE10,JCE10..ARL200308-200507

FUJITSU TEN,ID=17902,TYPE H:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-53011iGXE10199901-200507

86212BRACKET, RADIO, NO.2

main86212-53011iGXE10199901-200507

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-53020iGXE10..LHD199901-200005

main86280-53021iGXE10..LHD200005-200107

main86280-53030iGXE10..RHD199901-200005

main86280-53031iGXE10..RHD200005-200107

main86280-53040iGXE10,JCE10..RHD..SED200107

main86280-53050iGXE10,JCE10..LHD..SED200107

main86280-53060iGXE10,JCE10..RHD..WG200107

main86280-53070iGXE10,JCE10..LHD..WG200107

86285BRACKET, AMPLIFIER, NO.1

main86285-53020iGXE10,JCE10..LHD200107

main86285-53030iGXE10,JCE10..RHD200107

86286BRACKET, AMPLIFIER, NO.2

main86286-53010iGXE10,JCE10..RHD200107

main86286-53020iGXE10,JCE10..LHD200107

9001023002

main90010-23002

9001023003

main90010-23003

9011906077

main90119-06077

9015350010

main90153-50010

9017806001

main90178-06001

9165160618

main91651-60618

12 parts on this diagram · 3 diagrams in section
