WIRING & CLAMP

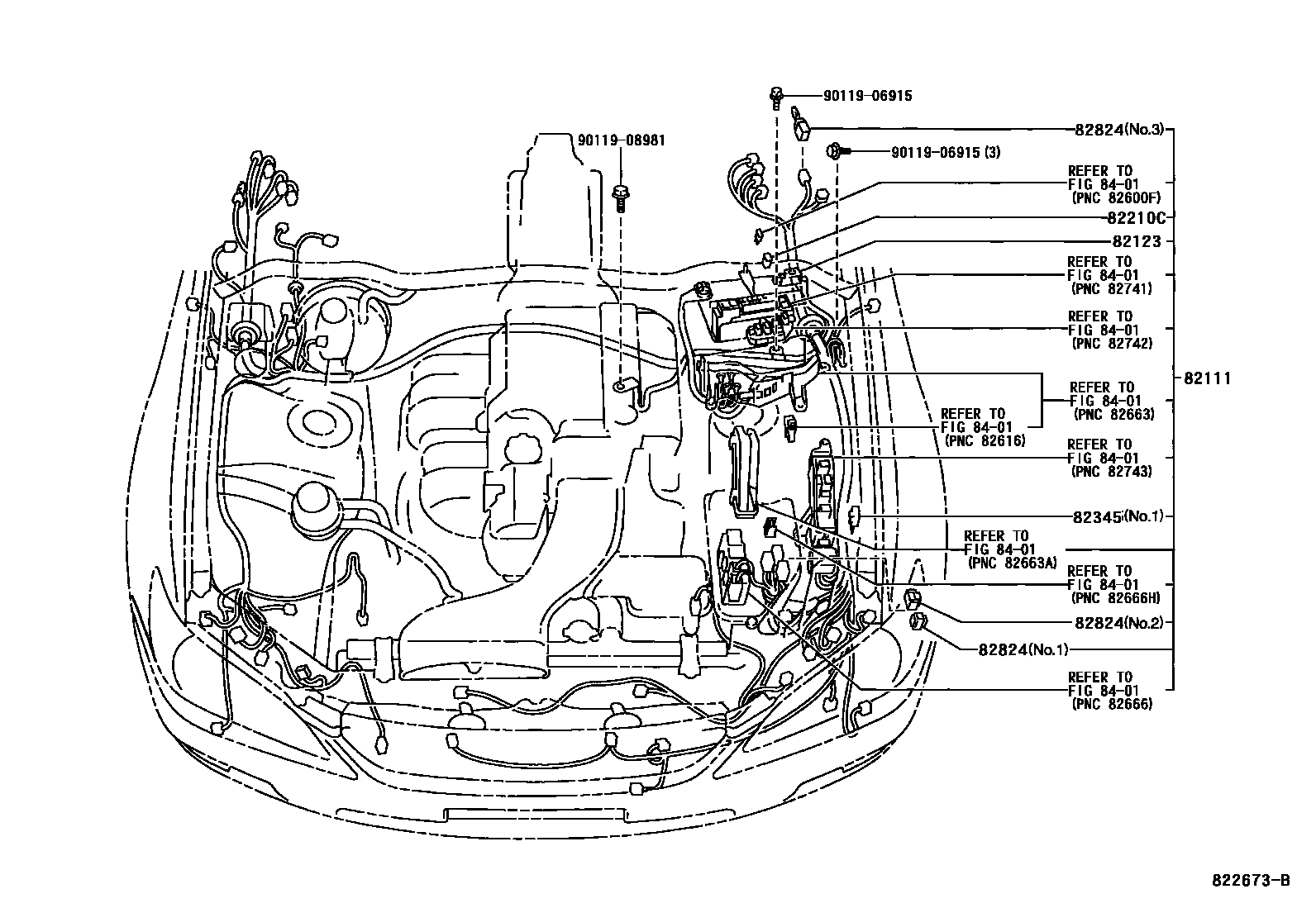

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-53110i199901-200005
main82111-53111i200005-200107
main82111-53120i199901-200005
W(HEADLAMP CLEANER)
main82111-53121i200005-200107
W(HEADLAMP CLEANER)
main82111-53130i199901-200005
main82111-53131i200005-200107
main82111-53140i199901-200005
W(HEADLAMP CLEANER)
main82111-53141i200005-200107
W(HEADLAMP CLEANER)
main82111-53150i199901-200005
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-53151i200005-200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-53160i199901-200005
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82111-53161i200005-200107
W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)
main82111-53170i199901-200005
main82111-53171i200005-200107
main82111-53260i200011-200107
KOREA SPEC & W(HEADLAMP CLEANER)
main82111-53500i200107-200208
sub82111-53501
main82111-53501i200208
main82111-53510i200107-200208
W(HEADLAMP LEVELING & HEADLAMP CLEANER)
sub82111-53511
main82111-53511i200208
W(HEADLAMP CLEANER & HEADLAMP LEVELING SWITCH)
main82111-53540i200107-200208
sub82111-53541
main82111-53541i200208
main82111-53550i200107-200208
W(HID AUTO LEVELING & HEADLAMP CLEANER)
sub82111-53551
main82111-53551i200208
W(HEADLAMP CLEANER & HEADLAMP LEVELING SWITCH)
main82111-53560i200107-200208
KOREA SPEC
main82111-53561i200208
KOREA SPEC
main82111-53570i200107-200208
KOREA SPEC & W(HEADLAMP CLEANER) & W(HEDLAMP LEVELING)
main82111-53571i200208
KOREA SPEC & W(HEADLAMP CLEANER) & W(HEDLAMP LEVELING)
main82111-53600i200107-200208
main82111-53601i200208
main82111-53620i200107-200208
main82111-53621i200208
main82111-53630i200107-200208
BLUNEI OR HONGKONG OR SINGAPORE OR THAILAND SPEC
main82111-53631i200208
BLUNEI OR HONGKONG OR SINGAPORE OR THAILAND SPEC
82123WIRE, ENGINE, NO.3
main82123-53010i199901-200107
sub82123-53050
main82123-53020i199901-200005
main82123-53021i200005-200107
main82123-53041i200107
main82123-53050i200107
82210CFUSIBLE LINK
main90982-08202i199901-200107
60A,TERM.:MALE,YEL
main90982-08274i199901-200107
120A,TERM.:MALE,WHT
main90982-08283i199901-200107
30A,TERM.:FEMALE,PNK
main90982-08284i199901-200107
40A,TERM.:FEMALE,GRN
82345DIODE
main82345-12050i200107
NO.1
main82345-22051i200107
NO.2
main82345-22051i199901-200107
82824CONNECTOR, WIRING HARNESS
main82824-12210i200107
NO.1
main82824-20110i200107
NO.2
main82824-20130i200107
NO.3
8401
9011906915
main90119-06915
9011908981
main90119-08981

8 parts on this diagram · 20 diagrams in section
