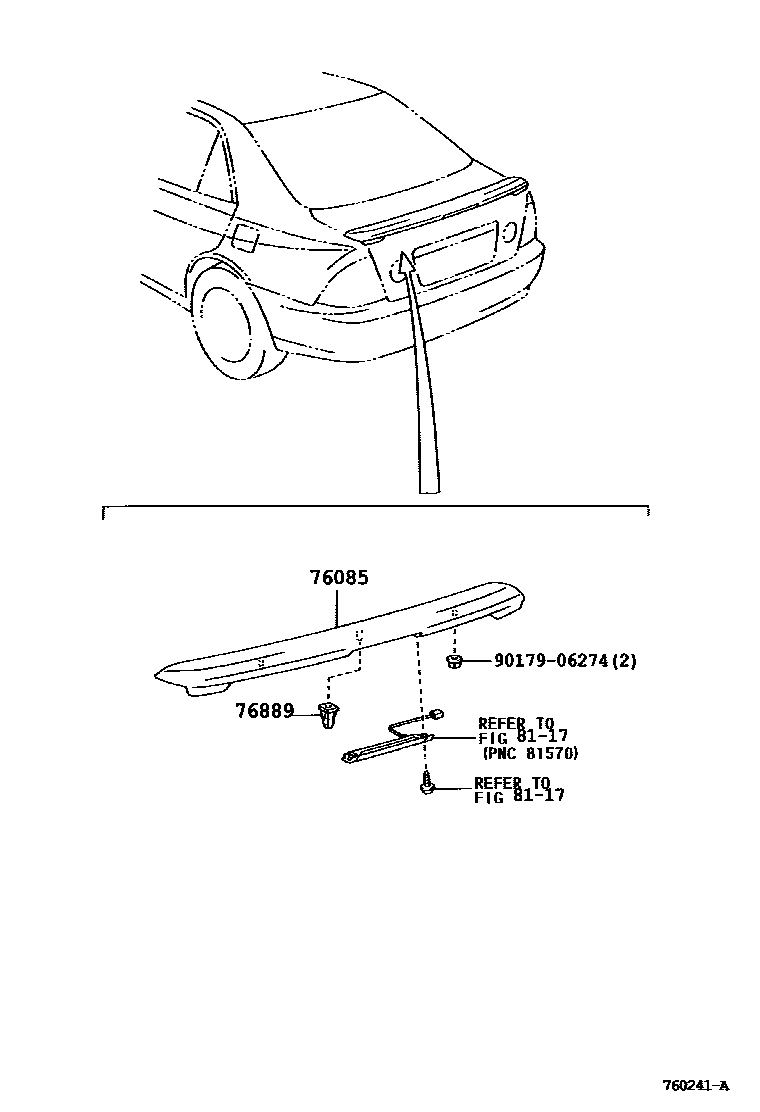

MUDGUARD & SPOILER

0001 1 0002 1

76085SPOILER SUB-ASSY, REAR

main76871-53010-A0iGXE10,JCE10..SED200107

SUPER WHITE 2,040

sub76871-53900

main76871-53010-A1iGXE10,JCE10..SED200107

WHITE PEARL CS.,062

sub76871-53900

main76871-53010-B0iGXE10,JCE10..SED200107

SILVER ME.,1C0

sub76871-53900

main76871-53010-B1iGXE10,JCE10..SED200107

DK.GRAY M.M.,1C6

sub76871-53900

main76871-53010-B2iJCE10..SED;GXE10..RHD..SED;GXE10..LHD..ATM200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

sub76871-53900

main76871-53010-C0iGXE10,JCE10..SED200107

BLACK,202

sub76871-53900

main76871-53010-D0iGXE10,JCE10..SED200107

SUPER RED 5,3P0

sub76871-53900

main76871-53010-E0iGXE10,JCE10..SED200308

BEIGE ME.,4R4

sub76871-53900

main76871-53010-F0iGXE10,JCE10..SED200107-200308

SUPER BRIGHT YELLOW,576

sub76871-53900

main76871-53010-F1iGXE10,JCE10..SED200107-200308

GOLD ME.,585

sub76871-53900

main76871-53010-G0iGXE10,JCE10..SED200107

DARK GREEN MC.,6R4

sub76871-53900

main76871-53010-J0iGXE10,JCE10..SED200107-200308

DK.BLUE MC.,8N8

sub76871-53900

main76871-53010-J2iGXE10,JCE10..SED200308

GRAYISH BLUE ME.,8N6

sub76871-53900

main76871-53010-J3iGXE10,JCE10..SED200308

DK.BLUE M.M.,8P4

sub76871-53900

main76871-53020-A0iGXE10,JCE10..WG200107-200303

SUPER WHITE 2,040

sub76871-53021

sub76871-53901

main76871-53020-A1iGXE10,JCE10..WG200107-200303

WHITE PEARL CS.,062

sub76871-53021

sub76871-53901

main76871-53020-B0iGXE10,JCE10..WG200107-200303

SILVER ME.,1C0

sub76871-53021

sub76871-53901

main76871-53020-B1iGXE10,JCE10..WG200107-200303

DK.GRAY M.M.,1C6

sub76871-53021

sub76871-53901

main76871-53020-C0iGXE10,JCE10..WG200107-200303

BLACK,202

sub76871-53021

sub76871-53901

main76871-53020-D0iGXE10,JCE10..WG200107-200303

SUPER RED 5,3P0

sub76871-53021

sub76871-53901

main76871-53020-F0iGXE10,JCE10..WG200107-200303

SUPER BRIGHT YELLOW,576

sub76871-53021

sub76871-53901

main76871-53020-F1iGXE10,JCE10..WG200107-200303

GOLD ME.,585

sub76871-53021

sub76871-53901

main76871-53020-G0iGXE10,JCE10..WG200107-200303

DARK GREEN MC.,6R4

sub76871-53021

sub76871-53901

main76871-53020-J0iGXE10,JCE10..WG200107-200303

DK.BLUE MC.,8N8

sub76871-53021

sub76871-53901

main76871-53021-A0iGXE10,JCE10..WG200303-200312

SUPER WHITE 2,040

sub76871-53901

main76871-53021-A1iGXE10,JCE10..WG200303-200312

WHITE PEARL CS.,062

sub76871-53901

main76871-53021-B0iGXE10,JCE10..WG200303-200312

SILVER ME.,1C0

sub76871-53901

main76871-53021-B1iGXE10,JCE10..WG200303-200312

DK.GRAY M.M.,1C6

sub76871-53901

main76871-53021-C0iGXE10,JCE10..WG200303-200312

BLACK,202

sub76871-53901

main76871-53021-D0iGXE10,JCE10..WG200303-200312

SUPER RED 5,3P0

sub76871-53901

main76871-53021-E0iGXE10,JCE10..WG200308-200312

BEIGE ME.,4R4

sub76871-53901

main76871-53021-F0iGXE10,JCE10..WG200303-200312

SUPER BRIGHT YELLOW,576

sub76871-53901

main76871-53021-F1iGXE10,JCE10..WG200303-200312

GOLD ME.,585

sub76871-53901

main76871-53021-G0iGXE10,JCE10..WG200303-200312

DARK GREEN MC.,6R4

sub76871-53901

main76871-53021-J0iGXE10,JCE10..WG200303-200312

DK.BLUE MC.,8N8

sub76871-53901

main76871-53021-J2iGXE10,JCE10..WG200308-200312

GRAYISH BLUE ME.,8N6

sub76871-53901

main76871-53021-J3iGXE10,JCE10..WG200308-200312

DK.BLUE M.M.,8P4

sub76871-53901

76889CLIP, REAR SPOILER, NO.2

main76889-44020iGXE10,JCE10..SED200107

8117

9017906274

main90179-06274

4 parts on this diagram · 2 diagrams in section
