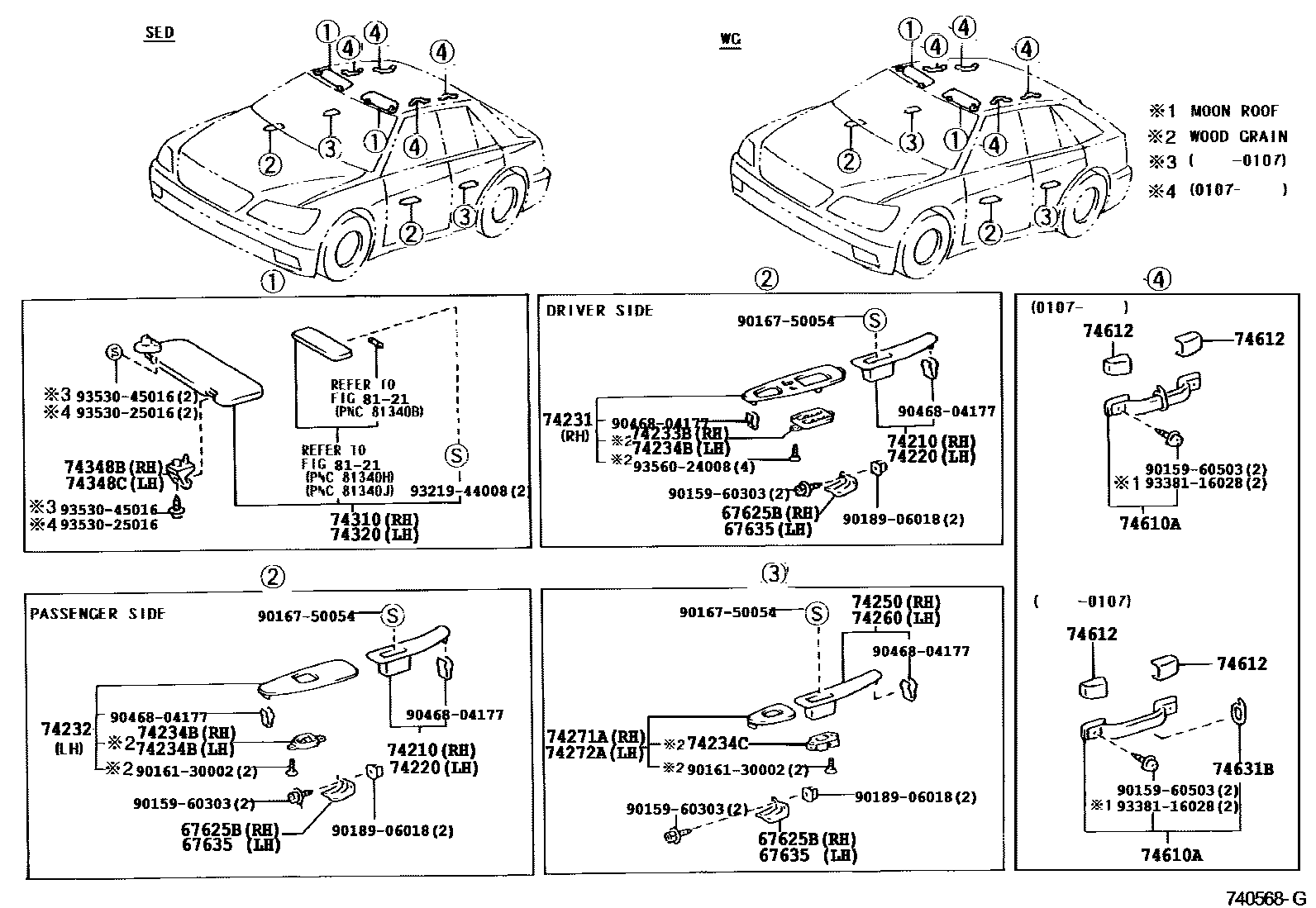

ARMREST & VISOR

67625BBRACKET, DOOR TRIM, NO.1 RH

main67625-53010iGXE10¥720199901-200107

67635BRACKET, DOOR TRIM, NO.1 LH

main67625-53010iGXE10¥720199901-200107

74210ARMREST ASSY, FRONT, RH

main74210-53010-A0iGXE10,JCE10199901-200107

IVORY,TRIM0#

main74210-53010-C0iGXE10199901-200107

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-53010-A0iGXE10199901-200107

IVORY,TRIM0#

main74220-53010-C0iGXE10199901-200107

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-53010iGXE10,JCE10..RHD¥21,100200005-200107

WOOD GRAIN

main74231-53010iGXE10¥1,900199901-199905

main74231-53020iGXE10,JCE10..RHD¥1,970199905-200308

main74231-53070iGXE10,JCE10..RHD¥2,920200308

main74232-53020iGXE10..LHD¥2,090199905-200308

main74232-53090iGXE10,JCE10..LHD¥3,210200308

main74240-53010iGXE10..LHD200005-200107

WOOD GRAIN

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74230-53010iGXE10,JCE10..LHD¥21,100200005-200107

WOOD GRAIN

main74231-53020iGXE10,JCE10..LHD¥1,970199905-200308

main74231-53070iGXE10,JCE10..LHD¥2,920200308

main74232-53010iGXE10¥2,100199901-199905

main74232-53020iGXE10,JCE10..RHD¥2,090199905-200308

main74232-53090iGXE10,JCE10..RHD¥3,210200308

main74240-53010iGXE10..RHD200005-200107

WOOD GRAIN

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-53010iGXE10,JCE10..RHD¥1,090200005-200107

main74234-53010iGXE10,JCE10..LHD¥850200005-200107

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74233-53010iGXE10,JCE10..LHD¥1,090200005-200107

main74234-53010iGXE10..RHD¥850200005-200107

74234CPANEL, REAR DOOR ARMREST BASE, LOWER

main74234-53010iGXE10¥850200005-200107

74250ARMREST ASSY, REAR RH

main74250-53010-A0iGXE10,JCE10199901-200107

IVORY,TRIM0#

main74250-53010-C0iGXE10199901-200107

BLACK,TRIM2#

74260ARMREST ASSY, REAR LH

main74260-53010-A0iGXE10199901-200107

IVORY,TRIM0#

main74260-53010-C0iGXE10199901-200107

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74270-53010iGXE10,JCE10¥14,100200005-200107

WOOD GRAIN

main74271-53010iGXE10,JCE10¥1,310199901-200308

main74271-53040iGXE10,JCE10¥1,980200308

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74270-53010iGXE10,JCE10¥14,100200005-200107

WOOD GRAIN

main74271-53010iGXE10,JCE10¥1,310199901-200308

main74271-53040iGXE10,JCE10¥1,980200308

74310VISOR ASSY, RH

main74310-53010-A0iGXE10..RHD199901-200005

IVORY,TRIM0#

main74310-53010-B0iGXE10..RHD199901-200005

MEDIUM CHARCOAL,TRIM2#

main74310-53011-A0iGXE10..LHD200005-200107

IVORY,TRIM0#

main74310-53011-B0iGXE10..LHD200005-200107

MEDIUM CHARCOAL,TRIM2#

main74310-53020-A0iGXE10..LHD199901-200107

IVORY,TRIM0#

main74310-53020-A0iGXE10..RHD..EUR200005-200107

CHINA SPEC,IVORY,TRIM0#

main74310-53020-B0iGXE10..LHD..ATM199901-200107

MEDIUM CHARCOAL,TRIM2#

main74310-53020-B0iGXE10..RHD..EUR200005-200107

CHINA SPEC,MEDIUM CHARCOAL,TRIM2#

main74310-53050-A0iGXE10..ARL199901-200005

HONG KONG SPEC,IVORY,TRIM0#

main74310-53050-B0iGXE10..ARL199901-200005

HONG KONG SPEC,MEDIUM CHARCOAL,TRIM2#

main74310-53051-A0iGXE10..ARL200005-200107

IVORY,TRIM0#

main74310-53051-B0iGXE10..ARL200005-200107

MEDIUM CHARCOAL,TRIM2#

main74310-53060-A0iGXE10..LHD..ATM199901-200005

TAIWAN SPEC,IVORY,TRIM0#

main74310-53060-B0iGXE10..LHD..ATM199901-200005

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

main74310-53061-A0iGXE10..LHD..ATM200005-200107

TAIWAN SPEC,IVORY,TRIM0#

main74310-53061-B0iGXE10..LHD..ATM200005-200107

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

main74310-53080-A0iGXE10,JCE10..LHD200107-200203

IVORY,TRIM0#

sub74310-53081¥14,700

main74310-53080-B0iGXE10,JCE10..LHD200107-200203

MEDIUM CHARCOAL,TRIM2#

sub74310-53081¥14,700

main74310-53081-A0iGXE10,JCE10..LHD200203-200507

IVORY,TRIM0#

main74310-53081-B0iGXE10,JCE10..LHD200203-200507

MEDIUM CHARCOAL,TRIM2#

main74310-53090-A0iGXE10..LHD..ATM200107-200203

CHINA SPEC,IVORY,TRIM0#

sub74310-53091¥14,600

main74310-53090-B0iGXE10..LHD..ATM200107-200203

CHINA SPEC,MEDIUM CHARCOAL,TRIM2#

sub74310-53091¥14,600

main74310-53091-A0iGXE10..LHD..ATM200203-200507

CHINA SPEC,IVORY,TRIM0#

main74310-53091-B0iGXE10..LHD..ATM200203-200507

CHINA SPEC,MEDIUM CHARCOAL,TRIM2#

main74310-53100-A0iGXE10,JCE10..ARL200107-200203

IVORY,TRIM0#

sub74310-53101¥14,900

main74310-53100-B0iGXE10,JCE10..ARL200107-200203

MEDIUM CHARCOAL,TRIM2#

sub74310-53101¥14,900

main74310-53101-A0iGXE10,JCE10..ARL200203-200507

IVORY,TRIM0#

main74310-53101-B0iGXE10,JCE10..ARL200203-200507

MEDIUM CHARCOAL,TRIM2#

main74310-53110-A0iGXE10,JCE10..LHD..SED..ATM200107-200203

TAIWAN SPEC,IVORY,TRIM0#

sub74310-53111¥14,700

main74310-53110-B0iGXE10,JCE10..LHD..SED..ATM200107-200203

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

sub74310-53111¥14,700

main74310-53111-A0iGXE10,JCE10..LHD..SED..ATM200203-200507

TAIWAN SPEC,IVORY,TRIM0#

main74310-53111-B0iGXE10,JCE10..LHD..SED..ATM200203-200507

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

main74310-53130-A0iGXE10,JCE10..RHD..EUR200107-200203

IVORY,TRIM0#

sub74310-53131¥14,700

main74310-53130-B0iGXE10,JCE10..RHD..EUR200107-200203

MEDIUM CHARCOAL,TRIM2#

sub74310-53131¥14,700

main74310-53131-A0iGXE10,JCE10..RHD..EUR200203-200507

IVORY,TRIM0#

main74310-53131-B0iGXE10,JCE10..RHD..EUR200203-200507

MEDIUM CHARCOAL,TRIM2#

74320VISOR ASSY, LH

main74320-53010-A0iGXE10..ARL;GXE10..LHD199901-200107

IVORY,TRIM0#

main74320-53010-B0iGXE10..ARL;GXE10..LHD199901-200107

MEDIUM CHARCOAL,TRIM2#

main74320-53020-A0iGXE10..LHD199901-200005

IVORY,TRIM0#

main74320-53020-B0iGXE10..LHD199901-200005

MEDIUM CHARCOAL,TRIM2#

main74320-53021-A0iGXE10..RHD..EUR200005-200107

IVORY,TRIM0#

main74320-53021-B0iGXE10..RHD..EUR200005-200107

MD.CHRCOL,TRIM2#

main74320-53050-A0iGXE10..LHD..ATM199901-200005

TAIWAN SPEC,IVORY,TRIM0#

main74320-53050-B0iGXE10..LHD..ATM199901-200005

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

main74320-53051-A0iGXE10..LHD..ATM200005-200107

TAIWAN SPEC,IVORY,TRIM0#

main74320-53051-B0iGXE10..LHD..ATM200005-200107

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

main74320-53070-A0iGXE10..LHD..ATM200005-200107

CHINA SPEC,IVORY,TRIM0#

main74320-53070-B0iGXE10..LHD..ATM200005-200107

CHINA SPEC,MD.CHRCOL,TRIM2#

main74320-53090-A0iGXE10,JCE10..ARL200107-200203

IVORY,TRIM0#

sub74320-53091¥14,600

main74320-53090-B0iGXE10,JCE10..ARL200107-200203

MEDIUM CHARCOAL,TRIM2#

sub74320-53091¥14,600

main74320-53091-A0iGXE10,JCE10..ARL200203-200507

IVORY,TRIM0#

main74320-53091-B0iGXE10,JCE10..ARL200203-200507

MEDIUM CHARCOAL,TRIM2#

main74320-53100-A0iGXE10,JCE10..RHD..EUR200107-200203

IVORY,TRIM0#

sub74320-53101¥14,700

main74320-53100-B0iGXE10,JCE10..RHD..EUR200107-200203

MEDIUM CHARCOAL,TRIM2#

sub74320-53101¥14,700

main74320-53101-A0iGXE10,JCE10..RHD..EUR200203-200507

IVORY,TRIM0#

main74320-53101-B0iGXE10,JCE10..RHD..EUR200203-200507

MEDIUM CHARCOAL,TRIM2#

main74320-53110-A0iGXE10,JCE10..LHD..SED..ATM200107-200203

TAIWAN SPEC,IVORY,TRIM0#

sub74320-53111¥14,700

main74320-53110-B0iGXE10,JCE10..LHD..SED..ATM200107-200203

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

sub74320-53111¥14,700

main74320-53111-A0iGXE10,JCE10..LHD..SED..ATM200203-200507

TAIWAN SPEC,IVORY,TRIM0#

main74320-53111-B0iGXE10,JCE10..LHD..SED..ATM200203-200507

TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2#

main74320-53130-A0iGXE10..LHD..ATM200107-200203

CHINA SPEC,IVORY,TRIM0#

sub74320-53131¥14,900

main74320-53130-B0iGXE10..LHD..ATM200107-200203

CHINA SPEC,MEDIUM CHARCOAL,TRIM2#

sub74320-53131¥14,900

main74320-53131-A0iGXE10..LHD..ATM200203-200507

CHINA SPEC,IVORY,TRIM0#

main74320-53131-B0iGXE10..LHD..ATM200203-200507

CHINA SPEC,MEDIUM CHARCOAL,TRIM2#

main74320-53150-A0iGXE10..LHD..ATM200009-200107

KOREA SPEC,IVORY,TRIM0#

main74320-53150-B0iGXE10..LHD..ATM200011-200107

KOREA SPEC,MEDIUM CHARCOAL,TRIM2#

main74320-53150-C0iGXE10..LHD..ATM200009-200011

KOREA SPEC,MEDIUM CHARCOAL,TRIM2#

main74320-53160-A0iGXE10,JCE10..LHD200107-200203

IVORY,TRIM0#

sub74320-53161¥14,700

main74320-53160-B0iGXE10,JCE10..LHD200107-200203

MEDIUM CHARCOAL,TRIM2#

sub74320-53161¥14,700

main74320-53161-A0iGXE10,JCE10..LHD200203-200507

IVORY,TRIM0#

main74320-53161-B0iGXE10,JCE10..LHD200203-200507

MEDIUM CHARCOAL,TRIM2#

74348BHOLDER, VISOR, RH

main74348-22020-A2iGXE10199901-200507

IVORY,TRIM0#

sub74348-22020¥680

main74348-22020-B9iGXE10199901-200507

MD.CHARCOAL,TRIM2#

sub74348-22020¥680

74348CHOLDER, VISOR, LH

main74348-22020-A2iGXE10199901-200507

IVORY,TRIM0#

sub74348-22020¥680

main74348-22020-B9iGXE10199901-200507

MD.CHARCOAL,TRIM2#

sub74348-22020¥680

74610AGRIP SUB-ASSY, ASSIST

main74610-30210-A0iGXE10,JCE10199901-200107

W(MOON ROOF),IVORY,TRIM0#

sub74610-30210¥2,290

sub74610-51010¥2,290

main74610-30210-B0iGXE10199901-200107

W(MOON ROOF),MD.CHARCOAL,TRIM2#

sub74610-30210¥2,290

sub74610-51010¥2,290

main74610-51010-A0iGXE10199901-200107

W(MOON ROOF),IVORY,TRIM0#,REAR

sub74610-51010¥2,290

main74610-51010-B1iGXE10199901-200107

W(MOON ROOF),MD.CHARCOAL,TRIM2#,REAR

sub74610-51010¥2,290

main74610-53010-A0iGXE10,JCE10199901-200107

IVORY,TRIM0#

sub74610-53010¥2,290

main74610-53010-B0iGXE10199901-200107

MD.CHARCOAL,TRIM2#

sub74610-53010¥2,290

main74610-53020-A0iGXE10,JCE10199901-200107

IVORY,TRIM0#,REAR

sub74610-53010¥2,290

sub74631-33020¥750

main74610-53020-B0iGXE10199901-200107

MD.CHARCOAL,TRIM2#,REAR

sub74610-53010¥2,290

sub74631-33020¥750

74612COVER, ASSIST GRIP

main74612-22050-A3iGXE10,JCE10199901-200107

IVORY,TRIM0#

sub74612-22050¥160

sub74612-20050¥270

main74612-22050-B7iGXE10199901-200107

MD.CHARCOAL,TRIM2#

sub74612-22050¥160

sub74612-20050¥270

main74612-30170-A0iGXE10199901-200007

W(MOON ROOF),IVORY,TRIM0#

sub74612-30171¥260

main74612-30170-B0iGXE10199901-200007

W(MOON ROOF),MD.CHARCOAL,TRIM2#

sub74612-30171¥260

main74612-30171-A0iGXE10,JCE10200007-200107

W(MOON ROOF),IVORY,TRIM0#

sub74612-30171¥260

main74612-30171-B0iGXE10200007-200107

W(MOON ROOF),MD.CHARCOAL,TRIM2#

sub74612-30171¥260

74631BHOOK, COAT

main74631-33020-A1iGXE10199901-200107

IVORY,TRIM0#

sub74631-33020¥750

main74631-33020-B2iGXE10199901-200107

MD. CHACOAL,TRIM2#

sub74631-33020¥750

8121

9015960303

main90159-60303¥70

9015960503

main90159-60503¥120

9016130002

main90161-30002¥120

9016750054

main90167-50054¥110

9018906018

main90189-06018¥80

9046804177

main90468-04177¥40

9321944008

main93219-44008¥110

9338116028

main93381-16028¥80

9353025016

main93530-25016¥170

9353045016

main93530-45016¥120

9356024008

main93560-24008¥90

32 parts on this diagram · 1 diagram in section
