SEAT BELT & CHILD RESTRAINT SEAT

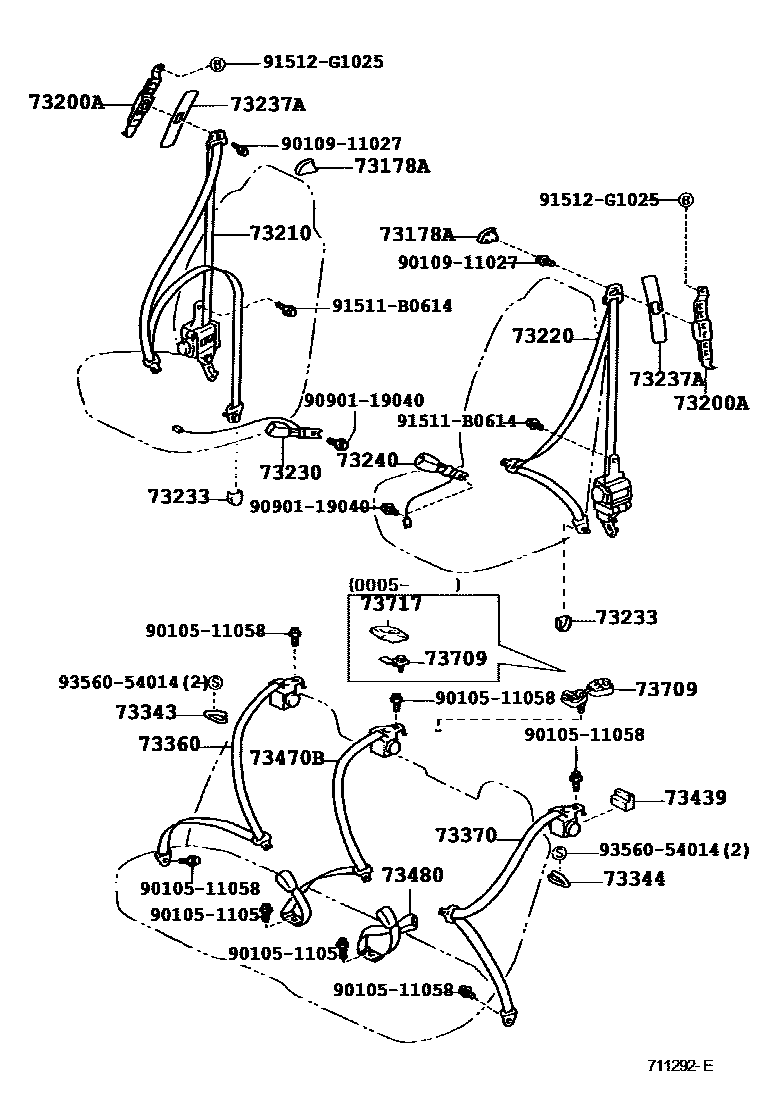

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-21010-A0×2i199901-200005
IVORY,TRIM0#
main73178-21010-B0×2i199901-200005
MD.CHARCOAL,TRIM2#
main73178-33020-A1×2i200107
IVORY,TRIM0#
main73178-33020-B1×2i200005-200107
MD.CHARCOAL,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-33020-A1×2i199901-200107
IVORY,TRIM0#
main73200-33020-B2×2i199901-200107
MD.CHARCOAL,TRIM2#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73203-53020-A0i200003-200005
IVORY,TRIM0#
main73203-53020-C0i200003-200005
BLACK,TRIM2#
main73203-53030-A0i200005-200107
IVORY,TRIM0#
main73203-53030-C0i200005-200107
BLACK,TRIM2#
main73203-53060-A0i200107-200208
IVORY,TRIM0#
main73203-53060-C0i200107-200208
BLACK,TRIM2#
main73203-53061-A0i200208
IVORY,TRIM0#
main73203-53061-C0i200208
BLACK,TRIM2#
main73203-53070-A0i200303
CHINA SPEC,IVORY,TRIM0#
main73203-53070-C0i200303
CHINA SPEC,BLACK,TRIM2#
main73210-53020-A0i199901-200003
IVORY,TRIM0#
main73210-53020-C1i199901-200003
BLACK,TRIM2#
main74310-53011-A0i200009-200107
KOREA SPEC,IVORY,TRIM0#
main74310-53011-B0i200009-200107
KOREA SPEC,MEDIUM CHARCOAL,TRIM2#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73204-53020-A0i200003-200005
IVORY,TRIM0#
main73204-53020-C0i200003-200005
BLACK,TRIM2#
main73204-53030-A0i200005-200107
IVORY,TRIM0#
main73204-53030-C0i200005-200107
BLACK,TRIM2#
main73204-53050-A0i200107-200208
IVORY,TRIM0#
main73204-53050-C0i200107-200208
BLACK,TRIM2#
main73204-53051-A0i200208
IVORY,TRIM0#
main73204-53051-C0i200208
BLACK,TRIM2#
main73204-53060-A0i200303
CHINA SPEC,IVORY,TRIM0#
main73204-53060-C0i200303
CHINA SPEC,BLACK,TRIM2#
main73220-53020-A0i199901-200003
IVORY,TRIM0#
main73220-53020-C1i199901-200003
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53010-C0i200005-200107
TAIWAN SPEC,BLACK,TRIM2#
main73230-53011-A0i200107-200208
IVORY,TRIM0#
main73230-53011-C0i200107-200208
BLACK,TRIM2#
main73230-53020-A0i200005-200107
W(POWER SEAT),IVORY,TRIM0#
main73230-53020-C0i200005-200107
W(POWER SEAT),BLACK,TRIM2#
main73230-53021-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53021-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main73230-53030-A0i199901-200005
IVORY,TRIM0#
main73230-53030-C0i199901-200005
BLACK,TRIM2#
main73230-53050-A0i200107-200208
IVORY,TRIM0#
main73230-53050-C0i200107-200208
BLACK,TRIM2#
main73230-53060-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53060-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main73230-53071-A0i200208
IVORY,TRIM0#
main73230-53071-C0i200208
BLACK,TRIM2#
main73230-53081-A0i200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53081-C0i200208
W(POWER SEAT),BLACK,TRIM2#
main73230-53111-A0i200208
IVORY,TRIM0#
main73230-53111-C0i200208
BLACK,TRIM2#
main73230-53121-A0i200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53121-C0i200208
W(POWER SEAT),BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-A1×2i199901-200107
IVORY,TRIM0#
main73233-33010-C0×2i200107
BLACK,TRIM2#
73237ACOVER, SHOULDER BELT ANCHOR
main73237-33010-A1×2i200107
IVORY,TRIM0#
main73237-33010-B2×2i199901-200107
MD.CHARCOAL,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-53010-C0i199901-200005
BLACK,TRIM2#
main73230-53011-A0i200107-200208
IVORY,TRIM0#
main73230-53011-C0i200107-200208
BLACK,TRIM2#
main73230-53020-A0i199901-200005
W(POWER SEAT),IVORY,TRIM0#
main73230-53020-C0i199901-200005
W(POWER SEAT),BLACK,TRIM2#
main73230-53021-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53021-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main73230-53030-A0i199901-200005
IVORY,TRIM0#
main73230-53030-C0i200005-200107
TAIWAN SPEC,BLACK,TRIM2#
main73230-53031-A0i200107-200208
IVORY,TRIM0#
main73230-53031-C0i200107-200208
BLACK,TRIM2#
main73230-53040-A0i200005-200107
W(POWER SEAT),IVORY,TRIM0#
main73230-53040-C0i200005-200107
W(POWER SEAT),BLACK,TRIM2#
main73230-53041-A0i200107-200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53041-C0i200107-200208
W(POWER SEAT),BLACK,TRIM2#
main73230-53071-A0i200208
IVORY,TRIM0#
main73230-53071-C0i200208
BLACK,TRIM2#
main73230-53081-A0i200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53081-C0i200208
W(POWER SEAT),BLACK,TRIM2#
main73230-53091-A0i200208
IVORY,TRIM0#
main73230-53091-C0i200208
BLACK,TRIM2#
main73230-53101-A0i200208
W(POWER SEAT),IVORY,TRIM0#
main73230-53101-C0i200208
W(POWER SEAT),BLACK,TRIM2#
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-50020-A1i199901-200107
IVORY,TRIM0#
main73343-50020-C0i199901-200107
BLACK,TRIM2#
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73344-50010-A1i200107-200507
IVORY,TRIM0#
main73344-50010-C0i200107-200507
BLACK,TRIM2#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-53010-C0i200107-200507
BLACK,TRIM2#
main73360-53020-A0i199901-200107
IVORY,TRIM0#
main73360-53030-C0i200107-200507
BLACK,TRIM2#
main73360-53040-A0i200107-200507
IVORY,TRIM0#
main73360-53090-C0i200303-200408
CHINA SPEC,BLACK,TRIM2#
main73360-53091-C0i200409-200507
CHINA SPEC,BLACK,TRIM2#
main73360-53100-A0i200303-200408
CHINA SPEC,IVORY,TRIM0#
main73360-53101-A0i200409-200507
CHINA SPEC,IVORY,TRIM0#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73360-53010-C0i199901-200107
BLACK,TRIM2#
main73360-53020-A0i200107-200507
IVORY,TRIM0#
main73360-53030-C0i200107-200507
BLACK,TRIM2#
main73360-53040-A0i200107-200507
IVORY,TRIM0#
main73360-53090-C0i200303-200408
CHINA SPEC,BLACK,TRIM2#
main73360-53091-C0i200409-200507
CHINA SPEC,BLACK,TRIM2#
main73360-53100-A0i200303-200408
CHINA SPEC,IVORY,TRIM0#
main73360-53101-A0i200409-200507
CHINA SPEC,IVORY,TRIM0#
73439CUSHION, REAR SEAT BELT RETRACTOR
main73439-53010×3i199901-200107
73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH
main73470-53010-A0i199901-200107
IVORY,TRIM0#
main73470-53010-C0i199901-200107
BLACK,TRIM2#
main73470-53040-A0i200107-200507
IVORY,TRIM0#
main73470-53040-C0i200107-200507
BLACK,TRIM2#
main73470-53070-A0i200303-200408
CHINA SPEC,IVORY,TRIM0#
main73470-53070-C0i200303-200408
CHINA SPEC,BLACK,TRIM2#
main73470-53071-A0i200409-200507
CHINA SPEC,IVORY,TRIM0#
main73470-53071-C0i200409-200507
CHINA SPEC,BLACK,TRIM2#
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
main73480-53010-A0i199901-200107
IVORY,TRIM0#
main73480-53010-C0i199901-200107
BLACK,TRIM2#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-12060×3i200311
main73708-20030-A0i199901-200005
IVORY,TRIM0#
main73708-20030-C0i199901-200005
BLACK,TRIM2#
main73708-53010×3i200107-200311
73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73717-47010-A0×3i200107-200311
IVORY,TRIM0#
main73717-47010-C0×3i200107-200311
BLACK,TRIM2#
main73717-50011-A0×3i200005-200107
IVORY,TRIM0#
main73717-50011-C0×3i200005-200107
BLACK,TRIM2#
9010511058
main90105-11058
9010911027
main90109-11027
9090119040
main90901-19040
91511B0614
main91511-B0614
91512G1025
main91512-G1025
9356054014
main93560-54014

23 parts on this diagram · 2 diagrams in section
