REAR SEAT & SEAT TRACK

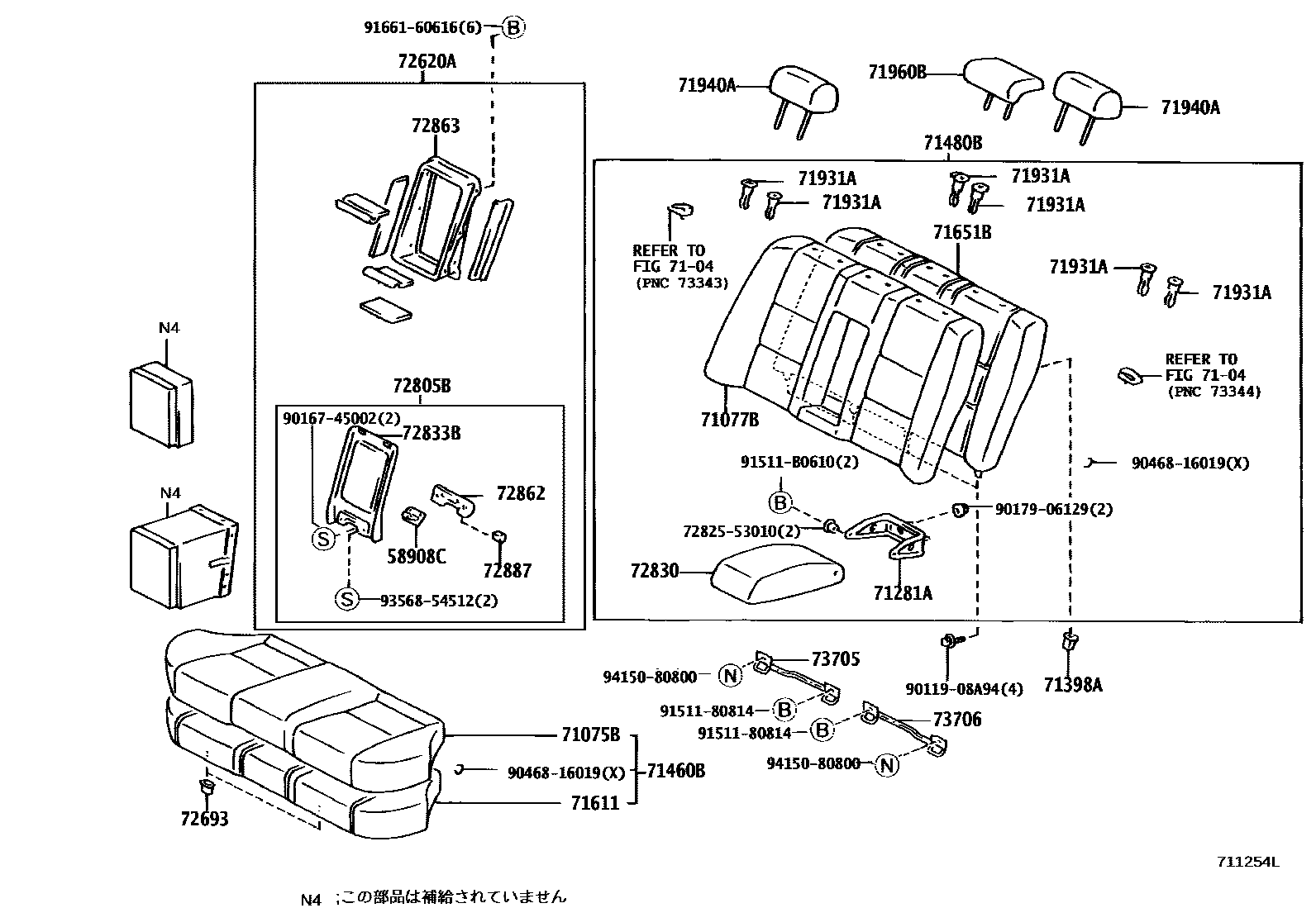

Parts diagram
58908CLOCK SUB-ASSY, REAR SEAT ARMREST
main58908-53010-C0i199901-200107
BLACK,TRIM0#,2#
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-53020-C0i199901-200005
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71075-53020¥56,300
main71075-53020-C2i200005-200107
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71075-53020¥56,300
main71075-53030-A0i199901-200005
SEAT = TYPE B-*104,IVORY,TRIM0#
sub71075-53030¥128,000
main71075-53030-A1i200005-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
sub71075-53030¥128,000
main71075-53030-C0i199901-200005
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71075-53030¥128,000
main71075-53030-C1i200005-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71075-53030¥128,000
main71075-53040-A2i200005-200507
SEAT = TYPE C-*104,IVORY,TRIM0#
main71075-53040-C1i200107-200507
SEAT = TYPE C-*104,BLACK,TRIM2#
main71075-53060-A0i200107-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71075-53061¥56,400
main71075-53060-C0i200107-200507
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71075-53061¥56,400
main71075-53070-A0i200107-200507
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-53070-B0i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#
main71075-53070-C0i200107-200507
SEAT = TYPE B-*104,BLACK,TRIM2#
main71075-53080-A2i200107-200408
SEAT = TYPE A-*104,IVORY,TRIM0#
main71075-53080-C2i200107-200408
SEAT = TYPE A-*104,BLACK,TRIM2#
main71075-53082-A2i200408-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71075-53083¥56,400
main71075-53082-C2i200408-200507
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71075-53083¥56,400
main71075-53090-A1i200107-200204
SEAT = TYPE C-*104,IVORY,TRIM0#
sub71075-53091¥128,000
main71075-53090-C1i200107-200204
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71075-53091¥128,000
main71075-53091-A2i200204-200408
SEAT = TYPE C-*104,IVORY,TRIM0#
main71075-53091-C2i200204-200408
SEAT = TYPE C-*104,BLACK,TRIM2#
main71075-53093-A2i200408-200507
SEAT = TYPE C-*104,IVORY,TRIM0#
main71075-53093-C2i200408-200507
SEAT = TYPE C-*104,BLACK,TRIM2#
main71075-53100-A1i200107-200204
SEAT = TYPE B-*104,IVORY,TRIM0#
sub71075-53101¥151,000
main71075-53100-C1i200107-200204
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71075-53101¥151,000
main71075-53101-A2i200204-200408
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-53101-C2i200204-200408
SEAT = TYPE B-*104,BLACK,TRIM2#
main71075-53103-A2i200408-200507
SEAT = TYPE B-*104,IVORY,TRIM0#
main71075-53103-C2i200408-200507
SEAT = TYPE B-*104,BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-53060-C1i199901-200005
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71077-53060
main71077-53060-C2i200005-200107
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71077-53060
main71077-53070-A0i199901-200005
SEAT = TYPE B-*104,IVORY,TRIM0#
sub71077-53070¥135,000
main71077-53070-A1i200005-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
sub71077-53070¥135,000
main71077-53070-C0i199901-200005
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71077-53070¥135,000
main71077-53070-C1i200005-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71077-53070¥135,000
main71077-53080-A2i200005-200107
SEAT = TYPE C-*104,IVORY,TRIM0#
main71077-53110-A1i200107-200408
SEAT = TYPE A-*104,IVORY,TRIM0#
main71077-53110-C1i200107-200408
SEAT = TYPE A-*104,BLACK,TRIM2#
main71077-53112-A1i200408
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71077-53113
main71077-53112-C1i200408
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71077-53113
main71077-53120-A1i200107-200408
SEAT = TYPE B-*104,IVORY,TRIM0#
main71077-53120-B0i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#
main71077-53120-C1i200107-200408
SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-53122-A1i200408
SEAT = TYPE B-*104,IVORY,TRIM0#
main71077-53122-C1i200408
SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-53180-A1i200107-200408
SEAT = TYPE C-*104,IVORY,TRIM0#
main71077-53180-C1i200107-200408
SEAT = TYPE C-*104,BLACK,TRIM2#
main71077-53182-A1i200408
SEAT = TYPE C-*104,IVORY,TRIM0#
main71077-53182-C1i200408
SEAT = TYPE C-*104,BLACK,TRIM2#
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-53010i¥2,110199901-200107
71398AHOLDER, REAR SEATBACK
main71398-22010i¥340199901-200007
sub71398-30010¥210
main71398-30010i¥210200007-200107
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-53020-C0i199901-200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71460-53030-A0i199901-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
main71460-53030-C0i199901-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
main71460-53040-A1i200005-200107
SEAT = TYPE C-*104,IVORY,TRIM0#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-53060-C1i199901-200107
SEAT = TYPE A-*104,BLACK,TRIM2#
main71480-53070-A0i199901-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
main71480-53070-C0i199901-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
main71480-53080-A1i200005-200107
SEAT = TYPE C-*104,IVORY,TRIM0#
71611PAD, REAR SEAT CUSHION
main71503-53010i¥30,900199901-200507
main71503-53020i¥35,600200107-200507
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-53020i¥37,500199901-200107
main71507-53050i¥37,400200107-200408
main71507-53051i¥37,400200408
71931ASUPPORT, REAR SEAT HEADREST
main71930-44010-A1i199901-200507
W(LOCK),IVORY,TRIM0#
sub71930-44010¥1,240
main71930-44010-C0i199901-200507
W(LOCK),BLACK,TRIM2#
sub71930-44010¥1,240
main71931-32020-A1i199901-200507
W/O(LOCK),IVORY,TRIM0#
sub71931-32020¥920
main71931-32020-C0i199901-200507
W/O(LOCK),BLACK,TRIM2#
sub71931-32020¥920
71940AHEADREST ASSY, REAR SEAT
main71940-53010-A1i200107-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71940-53011¥27,600
main71940-53010-C0i199901-200507
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71940-53011¥27,600
main71940-53020-A0i199901-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
main71940-53020-C0i199901-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
main71940-53030-A1i200107-200507
SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0#
main71940-53030-A1i200005-200507
SEAT = TYPE C-*104,IVORY,TRIM0#
main71940-53030-B0i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#
main71940-53030-C1i200107-200507
SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-53010-A1i200107-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71960-53011
main71960-53010-C0i199901-200507
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71960-53011
main71960-53020-A0i200105-200107
SEAT = TYPE B-*104,IVORY,TRIM0#
main71960-53020-C0i199901-200107
SEAT = TYPE B-*104,BLACK,TRIM2#
main71960-53030-A1i200005-200507
SEAT = TYPE C-*104,IVORY,TRIM0#
main71960-53030-A1i200107-200507
SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0#
main71960-53030-B0i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#
main71960-53030-C1i200107-200507
SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2#
main71960-53040-A0i200107-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
sub71960-53041
main71960-53040-C0i200107-200507
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71960-53041
main71960-53050-A0i200107-200507
SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0#
main71960-53050-C0i200107-200507
SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2#
72620APROTECTOR ASSY, REAR SEATBACK
main72620-53020-C0i199901-200411
BLACK,TRIM0#,2#
sub72620-53021¥40,100
main72620-53021-C0i200411
BLACK,TRIM0#,2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-20060i¥180199901-200107
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
main72805-53020-C0i199901-200411
BLACK,TRIM0#,2#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-53010-A2i200107-200507
IVORY,TRIM0#
sub72830-53011¥27,100
sub72830-53010¥27,100
main72830-53010-C0i199901-200005
BLACK,TRIM2#
sub72830-53011¥27,100
sub72830-53010¥27,100
main72830-53010-C2i200005-200507
BLACK,TRIM2#
sub72830-53011¥27,100
sub72830-53010¥27,100
main72830-53020-A0i199901-200005
LEATHER,IVORY,TRIM0#
sub72830-53020¥58,300
main72830-53020-A2i200005-200507
LEATHER,IVORY,TRIM0#
sub72830-53020¥58,300
main72830-53020-B0i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#
sub72830-53020¥58,300
main72830-53020-C0i199901-200005
LEATHER,BLACK,TRIM2#
sub72830-53020¥58,300
main72830-53020-C1i200005-200507
LEATHER,BLACK,TRIM2#
sub72830-53020¥58,300
main72830-53040-A0i200107-200507
SEAT = TYPE A-*104,IVORY,TRIM0#
sub72830-53041¥27,100
main72830-53040-C0i200107-200507
SEAT = TYPE A-*104,BLACK,TRIM2#
sub72830-53041¥27,100
main72830-53050-A0i200208-200507
IVORY,TRIM0#
main72830-53050-A0i200107-200507
LEATHER,IVORY,TRIM0#
main72830-53050-C0i200208-200507
BLACK,TRIM2#
main72830-53050-C0i200107-200507
LEATHER,BLACK,TRIM2#
72833BDOOR, REAR SEAT CENTER ARMREST
main72833-53010-C0i199901-200107
BLACK,TRIM0#,2#
72862PATCH, CENTER ARMREST
main72862-53010-C0i199901-200107
BLACK,TRIM0#,2#
72863BOX, REAR SEAT CENTER ARMREST
main72863-53010-C0i199901-200411
BLACK,TRIM0#,2#
72887STOPPER, REAR SEAT CENTER ARMREST DOOR
main72887-53010-C0i199901-200107
BLACK,TRIM0#,2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-53010i¥1,450200107-200408
main73705-53011i¥1,450200408
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-53010i¥1,450200107-200408
main73706-53011i¥1,450200408
7282553010CLUTCH, PROTECTOR MAIN, RH
main72825-53010¥240
9011908A94
main90119-08A94¥130
9016745002
main90167-45002¥130
9017906129
main90179-06129¥90
9046816019
main90468-16019¥90
9151180814
main91511-80814¥130
91511B0610
main91511-B0610¥110
9166160616
main91661-60616¥70
9356854512
main93568-54512¥70
9415080800
main94150-80800¥90

33 parts on this diagram · 2 diagrams in section
