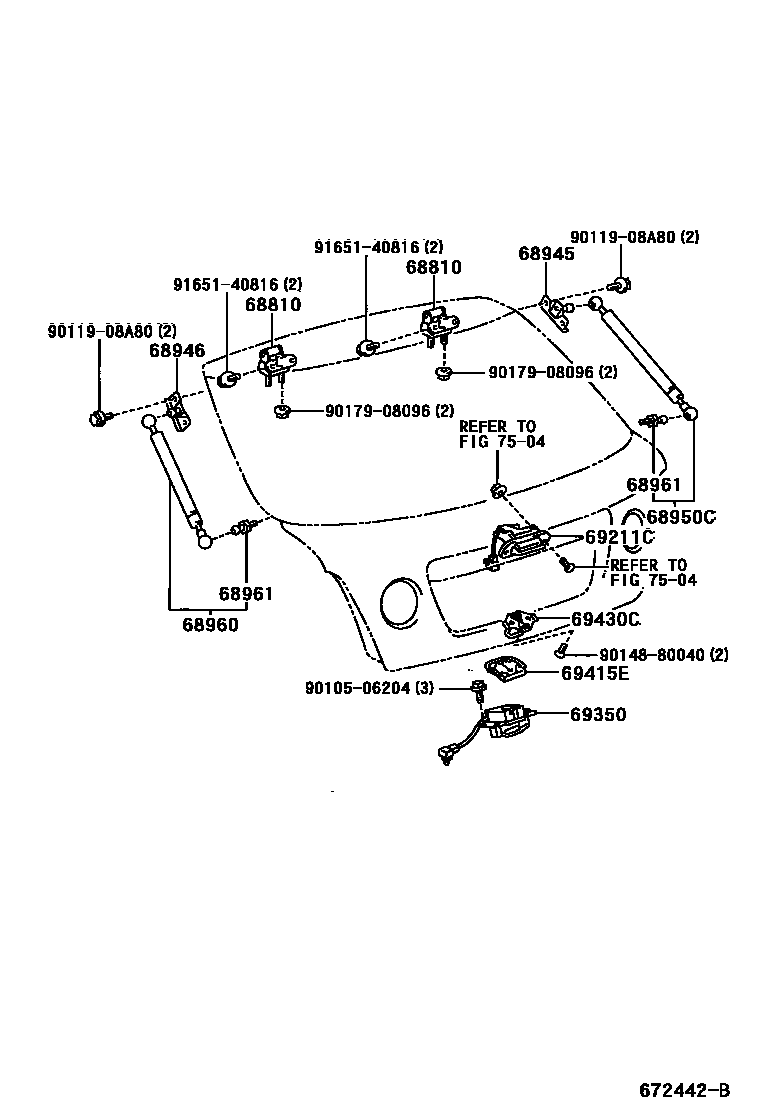

BACK DOOR LOCK & HANDLE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-53010iGXE10,JCE10..WG200107

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-53020iGXE10,JCE10..WG200107

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-53020iGXE10,JCE10..WG200107

68950CSTAY ASSY, BACK DOOR, RH

main68950-80110iGXE10,JCE10..WG200107-200502

sub68950-80113

main68950-80113iGXE10,JCE10..WG200503

68960STAY ASSY, BACK DOOR, LH

main68960-80065iGXE10,JCE10..WG200107-200502

sub68960-80068

main68960-80068iGXE10,JCE10..WG200503

68961BOLT, BACK DOOR STAY

main68961-40010iGXE10,JCE10..WG200107

69211CHANDLE, BACK DOOR OUTSIDE

main69023-53010iGXE10,JCE10..WG200107

69350LOCK ASSY, BACK DOOR

main69350-53010iGXE10,JCE10..WG200107

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-53010-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

main69415-53010-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-53010iGXE10,JCE10..WG200107

7504

9010506204

main90105-06204

9011908A80

main90119-08A80

9014880040

main90148-80040

9017908096

main90179-08096

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
