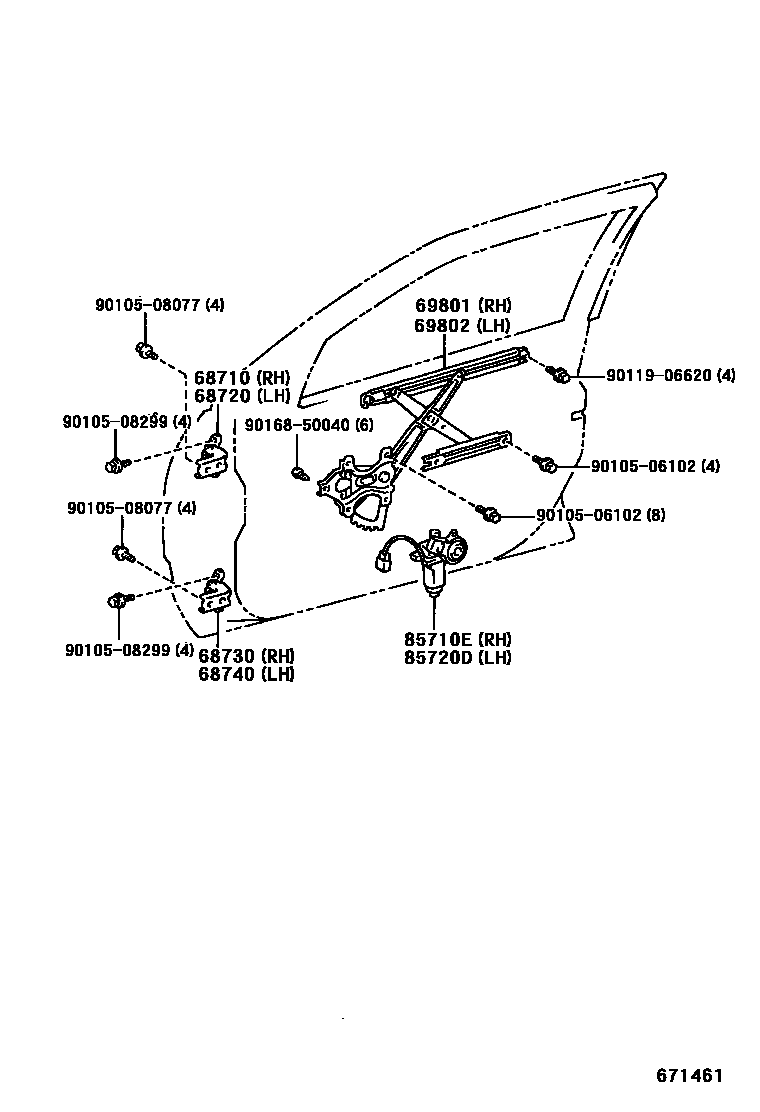

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iGXE10199901-200107

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iGXE10199901-200107

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150iGXE10199901-200107

sub68720-12151

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150iGXE10199901-200107

sub68710-12151

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-53010iGXE10199901-200107

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-53010iGXE10199901-200107

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-53010iGXE10..RHD199901-200107

main85720-53020iGXE10..LHD199901-200107

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-53010iGXE10..RHD199901-200107

main85710-53020iGXE10,JCE10..LHD199901-200107

9010506102

main90105-06102

9010508077

main90105-08077

9010508299

main90105-08299

9011906620

main90119-06620

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
