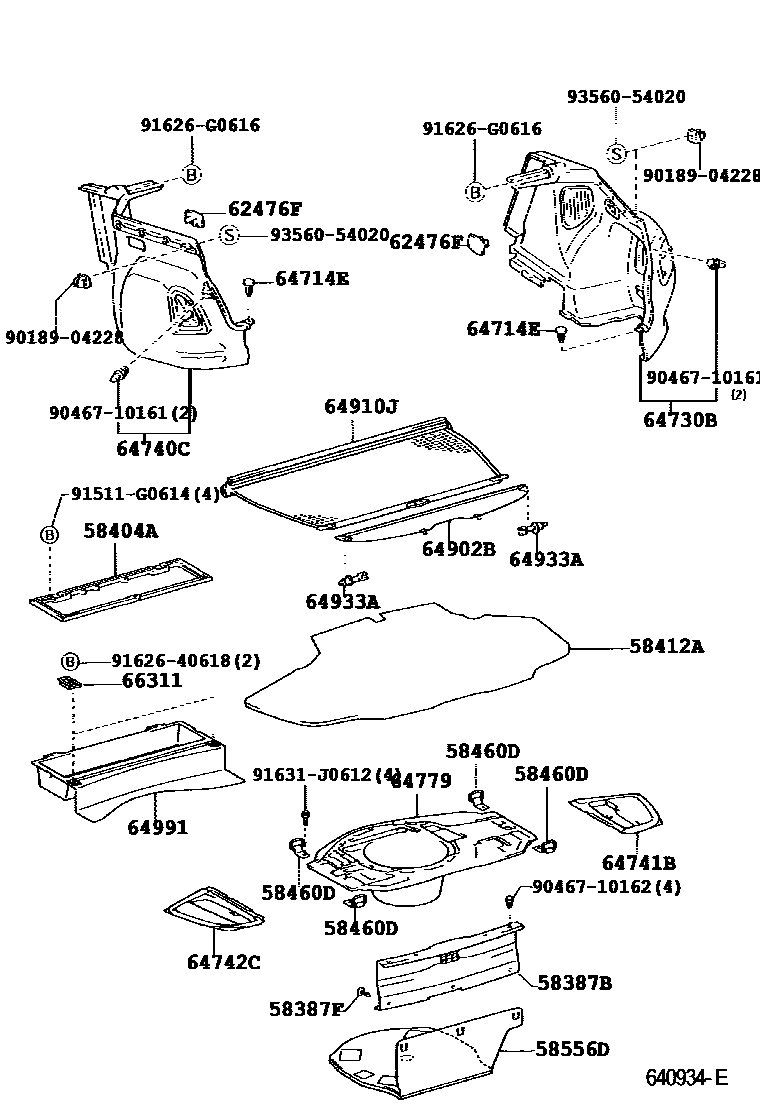

DECK BOARD & DECK TRIM COVER

0001 1 0002 1W(FLAT BOARD)

58387BPLATE, REAR FLOOR FINISH

main58387-53010-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

sub58387-53010

main58387-53010-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

sub58387-53010

main58387-53020-A0iGXE10,JCE10..WG200107

W(FLAT BOARD),IVORY,TRIM0#

sub58387-53020

main58387-53020-C0iGXE10,JCE10..WG200107

W(FLAT BOARD),BLACK,TRIM2#

sub58387-53020

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-07090-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

sub90467-07090

sub90467-07207

main90467-07090-C4iGXE10,JCE10..WG200107

BLACK,TRIM2#

sub90467-07090

sub90467-07207

58404ABOARD SUB-ASSY, REAR FLOOR, NO.4

main58404-53010-A1iJCE10..WG200107-200201

IVORY,TRIM0#

sub58404-53010

sub58404-53012

main58404-53010-A2iGXE10,JCE10..WG200201-200301

IVORY,TRIM0#

sub58404-53010

sub58404-53012

main58404-53010-C1iJCE10..WG200107-200201

BLACK,TRIM2#

sub58404-53010

sub58404-53012

main58404-53010-C2iGXE10,JCE10..WG200201-200301

BLACK,TRIM2#

sub58404-53010

sub58404-53012

main58404-53011-A2iGXE10,JCE10..WG200301-200307

IVORY,TRIM0#

sub58404-53012

main58404-53011-C2iGXE10,JCE10..WG200301-200307

BLACK,TRIM2#

sub58404-53012

main58404-53012-A2iGXE10,JCE10..WG200307

IVORY,TRIM0#

main58404-53012-C2iGXE10,JCE10..WG200307

BLACK,TRIM2#

58412ABOARD, DECK, NO.2

main58412-53030-A1iJCE10..WG200107-200201

IVORY,TRIM0#

sub58412-53030

sub58412-53032

main58412-53030-A2iGXE10,JCE10..WG200201-200301

IVORY,TRIM0#

sub58412-53030

sub58412-53032

main58412-53030-C1iJCE10..WG200107-200201

BLACK,TRIM2#

sub58412-53030

sub58412-53032

main58412-53030-C2iGXE10,JCE10..WG200201-200301

BLACK,TRIM2#

sub58412-53030

sub58412-53032

main58412-53031-A2iGXE10,JCE10..WG200301-200307

IVORY,TRIM0#

sub58412-53032

main58412-53031-C2iGXE10,JCE10..WG200301-200307

BLACK,TRIM2#

sub58412-53032

main58412-53032-A2iGXE10,JCE10..WG200307

IVORY,TRIM0#

main58412-53032-C2iGXE10,JCE10..WG200307

BLACK,TRIM2#

main58412-53040-A1iJCE10..WG200107-200201

W(SPEAKER),IVORY,TRIM0#

sub58412-53040

sub58412-53042

main58412-53040-A2iGXE10,JCE10..WG200201-200301

W(SPEAKER),IVORY,TRIM0#

sub58412-53040

sub58412-53042

main58412-53040-C1iJCE10..WG200107-200201

W(SPEAKER),BLACK,TRIM2#

sub58412-53040

sub58412-53042

main58412-53040-C2iGXE10,JCE10..WG200201-200301

W(SPEAKER),BLACK,TRIM2#

sub58412-53040

sub58412-53042

main58412-53041-A2iGXE10,JCE10..WG200301-200307

W(SPEAKER),IVORY,TRIM0#

sub58412-53042

main58412-53041-C2iGXE10,JCE10..WG200301-200307

W(SPEAKER),BLACK,TRIM2#

sub58412-53042

main58412-53042-A2iGXE10,JCE10..WG200307

W(SPEAKER),IVORY,TRIM0#

main58412-53042-C2iGXE10,JCE10..WG200307

W(SPEAKER),BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010iGXE10,JCE10..WG200107

58556DSILENCER, REAR FLOOR

main58556-53010iGXE10,JCE10..WG200107-200307

sub58556-53011

main58556-53011iGXE10,JCE10..WG200307

62476FCAP, ROOF SIDE INNER GARNISH, NO.1

main62476-53010-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

main62476-53010-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10034-C0iGXE10,JCE10..WG200107

BLACK,TRIM0#,2#

sub90467-10034

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-53050-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

main64730-53050-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

main64730-53060-A0iGXE10,JCE10..WG200107

W(SPEAKER),IVORY,TRIM0#

main64730-53060-C0iGXE10,JCE10..WG200107

W(SPEAKER),BLACK,TRIM2#

main64730-53070-A0iGXE10,JCE10..WG200107

W(FLAT BOARD),IVORY,TRIM0#

main64730-53070-C0iGXE10,JCE10..WG200107

W(FLAT BOARD),BLACK,TRIM2#

main64730-53080-A0iGXE10,JCE10..WG200107

W(FLAT BOARD & SPEAKER),IVORY,TRIM0#

main64730-53080-C0iGXE10,JCE10..WG200107

W(FLAT BOARD & SPEAKER),BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-53030-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

main64740-53030-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

main64740-53040-A0iGXE10,JCE10..WG200107

W(FLAT BOARD),IVORY,TRIM0#

main64740-53040-C0iGXE10,JCE10..WG200107

W(FLAT BOARD),BLACK,TRIM2#

64741BBOX, DECK SIDE TRIM, RH

main64741-53010iGXE10,JCE10..WG200107-200212

sub64741-53012

main64741-53012iGXE10,JCE10..WG200212

main64741-53020iGXE10,JCE10..WG200107-200212

W(SPEAKER)

sub64741-53022

main64741-53022iGXE10,JCE10..WG200212

W(SPEAKER)

64742CBOX, DECK SIDE TRIM, LH

main64742-53010iGXE10,JCE10..WG200107-200212

sub64742-53012

main64742-53012iGXE10,JCE10..WG200212

64779TRAY, SPARE WHEEL COVER

main64779-53030iGXE10,JCE10..WG200107-200212

sub64779-53031

main64779-53031iGXE10,JCE10..WG200212

main64779-53040iGXE10,JCE10..WG200107-200212

W(FLAT BOARD)

sub64779-53041

main64779-53041iGXE10,JCE10..WG200212

W(FLAT BOARD)

64902BCOVER SUB-ASSY, TONNEAU

main64904-53010-A0iGXE10,JCE10..WG200107-200307

IVORY,TRIM0#

sub64904-53011

main64904-53010-C0iGXE10,JCE10..WG200107-200307

BLACK,TRIM2#

sub64904-53011

main64904-53011-A0iGXE10,JCE10..WG200307

IVORY,TRIM0#

main64904-53011-C0iGXE10,JCE10..WG200307

BLACK,TRIM2#

64910JCOVER ASSY, TONNEAU

main64910-53010-A1iGXE10,JCE10..WG200107-200307

IVORY,TRIM0#

sub64910-53011

main64910-53010-C1iGXE10,JCE10..WG200107-200307

BLACK,TRIM2#

sub64910-53011

main64910-53011-A1iGXE10,JCE10..WG200307

IVORY,TRIM0#

main64910-53011-C1iGXE10,JCE10..WG200307

BLACK,TRIM2#

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-53010-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

main64933-53010-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

64991BOX, DECK FLOOR, FRONT

main64991-53010-A0iGXE10,JCE10..WG200107-200301

IVORY,TRIM0#

main64991-53010-C0iGXE10,JCE10..WG200107-200301

BLACK,TRIM2#

main64991-53011-A0iGXE10,JCE10..WG200301

IVORY,TRIM0#

main64991-53011-C0iGXE10,JCE10..WG200301

BLACK,TRIM2#

66311HOOK, ROPE

main66310-31010-A0iGXE10,JCE10..WG200107

IVORY,TRIM0#

main66310-31010-C0iGXE10,JCE10..WG200107

BLACK,TRIM2#

9018904228

main90189-04228

9046710161

main90467-10161

9046710162

main90467-10162

91511G0614

main91511-G0614

9162640618

main91626-40618

91626G0616

main91626-G0616

91631J0612

main91631-J0612

9356054020

main93560-54020

26 parts on this diagram · 2 diagrams in section
