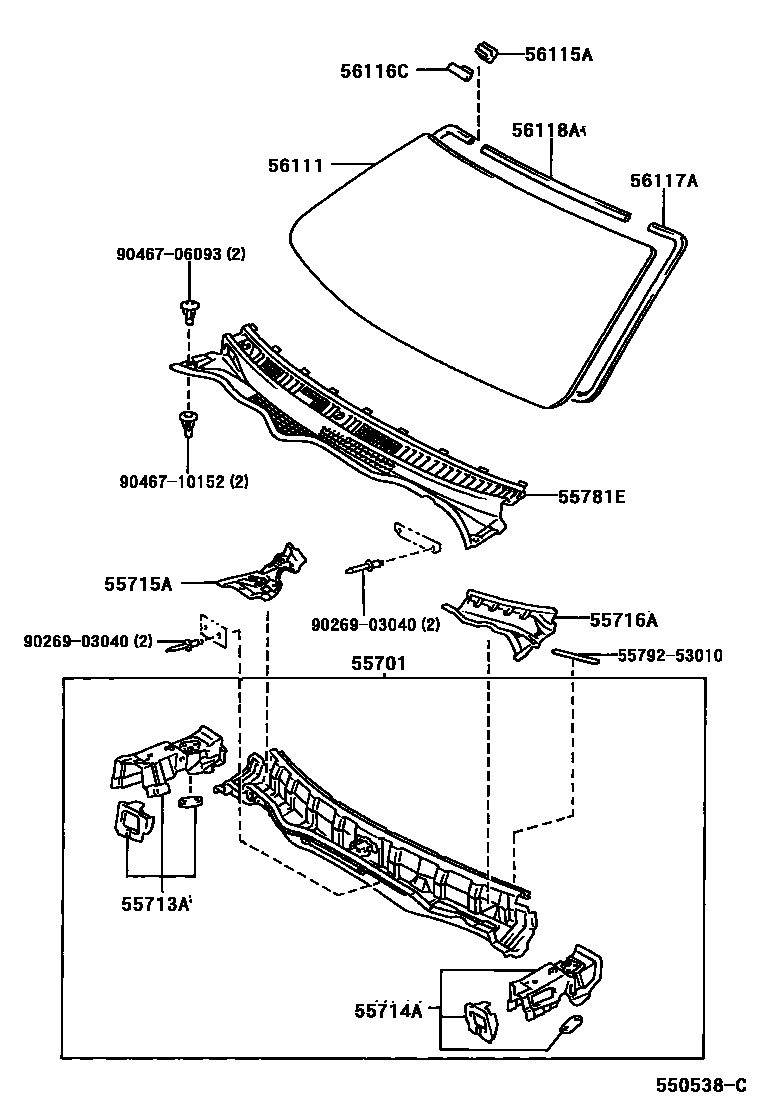

COWL PANEL & WINDSHIELD GLASS

0001 1TYPE A 0002 1TYPE B 0003 1

55701PANEL SUB-ASSY, COWL

main55700-53010iGXE10..RHD199901-200107

TYPE A:REFER TO ILLUSTRATION

main55700-53020iGXE10..LHD199901-200302

sub55700-53060

main55700-53030iGXE10..RHD..EUR199901-200107

TYPE B:REFER TO ILLUSTRATION

main55700-53040iGXE10..LHD..ATM200501

W(INDENTIFICATION NUMBER PLATE)

main55700-53060iJCE10..LHD200107

55713APANEL, COWL TOP SIDE, RH

main55713-53900iGXE10199901-200107

55714APANEL, COWL TOP SIDE, LH

main55714-53900iGXE10199901-200107

55715ABRACE, COWL TOP TO APRON, RH

main55715-53010iGXE10,JCE10..RHD199901-200107

main55715-53020iGXE10..LHD199901-200107

55716ABRACE, COWL TOP TO APRON, LH

main55716-53010iGXE10..RHD199901-200107

main55716-53020iGXE10..LHD199901-200107

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53010iGXE10..ARL199901-200307

sub55708-53011

main55708-53011iGXE10,JCE10..ARL200307

main55708-53020iGXE10,JCE10..RHD..EUR199901-200307

sub55708-53021

main55708-53021iGXE10,JCE10..RHD..EUR200307

main55708-53030iGXE10..LHD199901-200307

sub55708-53031

main55708-53031iGXE10,JCE10..LHD200307

56111GLASS, WINDSHIELD

main56111-53030iGXE10..LHD199901-200005

*EHTL,T=4.7,GREEN

sub56111-53031

main56111-53031iGXE10..LHD200005-200107

*EHTL,T=4.7,GREEN

main56111-53032iGXE10,JCE10..LHD200107-200212

*EHTL,T=4.7,GREEN

sub56111-53033

main56111-53033iGXE10,JCE10..LHD200212

*EHTL,T=4.7,GREEN

main56111-53040iGXE10..RHD..EUR199901-200005

*TL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

sub56111-53041

main56111-53041iGXE10..RHD..EUR200005-200107

*TL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

main56111-53042iGXE10,JCE10..RHD..EUR200107

*TL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

main56111-53042iGXE10..LHD..ATM200501

*TL,T=4.7,GREEN,W(INDENTIFICATION NUMBER PLATE)

main56111-53050iGXE10..RHD..EUR199901-200005

*EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

sub56111-53051

main56111-53051iGXE10..RHD..EUR200005-200107

*EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

main56111-53052iGXE10,JCE10..RHD..EUR200107-200301

*EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

sub56111-53053

main56111-53053iGXE10,JCE10..RHD..EUR200301

*EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION

main56111-53060iGXE10..LHD199901-200005

*TL,T=4.7,GREEN

sub56111-53061

main56111-53060iGXE10..RHD199901-200005

*TL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION

sub56111-53061

main56111-53061iGXE10..RHD200005-200107

*TL,T=4.7,GREEN

main56111-53061iGXE10..LHD200005-200107

*TL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION

main56111-53062iGXE10..WG;JCE10..LHD;GXE10..LHD..SED200107-200212

*TL,T=4.7,GREEN

sub56111-53063

main56111-53062iGXE10..WG;JCE10..LHD;GXE10..LHD..SED200107-200212

*TL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION

sub56111-53063

main56111-53063iGXE10,JCE10200212

*TL,T=4.7,GREEN

main56111-53071iGXE10..LHD..ATM200501

*EHTL,T=4.7,GREEN,W(INDENTIFICATION NUMBER PLATE)

main56111-53080iGXE10,JCE10..RHD..EUR200107-200301

*EHTL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION

sub56111-53081

main56111-53081iGXE10,JCE10..RHD..EUR200301

*EHTL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iGXE10199901-200107

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGXE10199901-200107

56117ADAM, WINDOW GLASS ADHESIVE

main56117-53010iGXE10199901-200107

*D,L=2972

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-53010iGXE10199901-200107

sub56117-52040

main56118-53010iGXE10,JCE10200107

L=665

sub56117-52040

5579253010COVER, WIPER MOTOR SERVICE HOLE

main55792-53010

9026903040

main90269-03040

9046706093

main90467-06093

9046710152

main90467-10152

15 parts on this diagram · 3 diagrams in section
