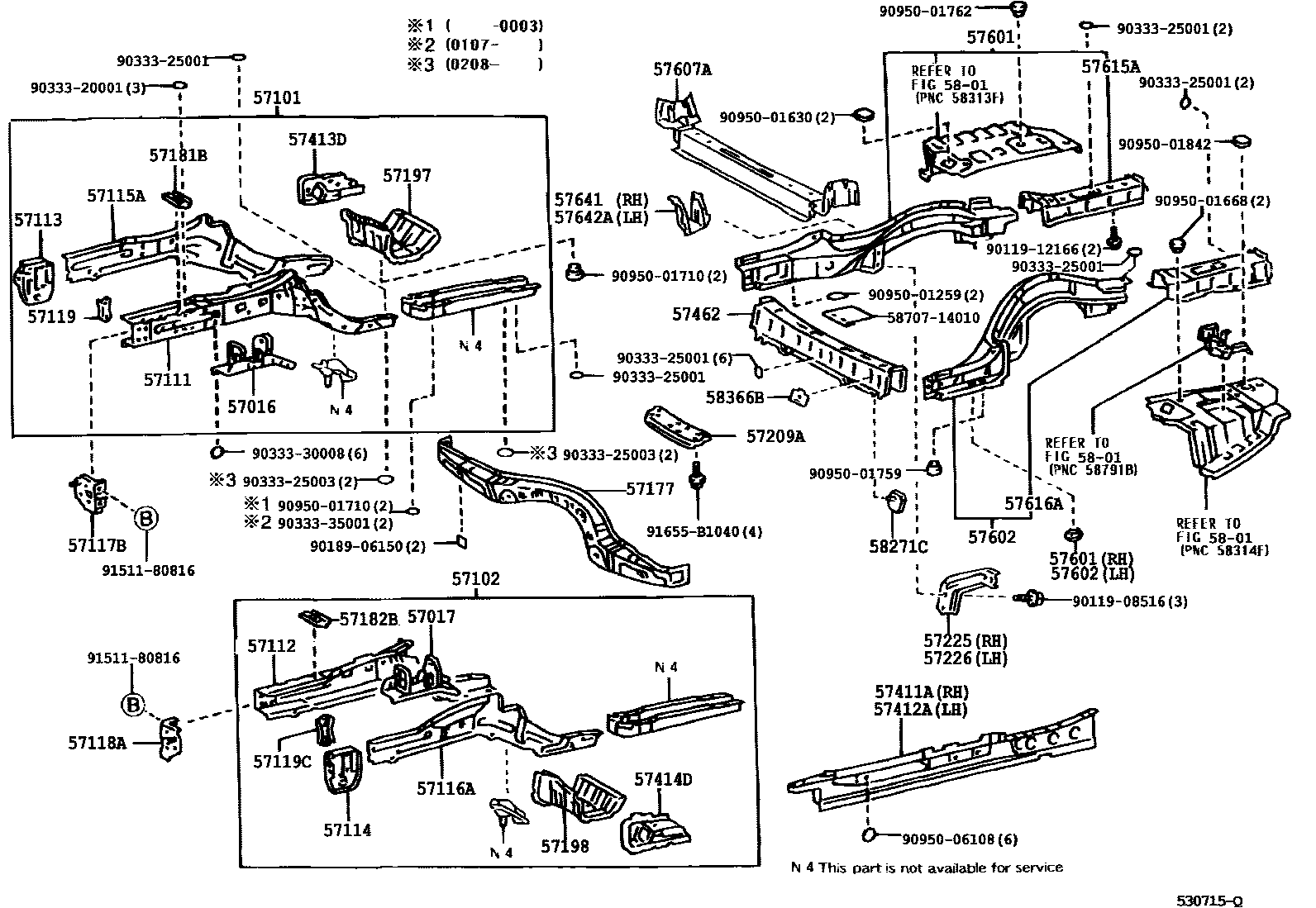

FLOOR SIDE MEMBER

0001 1 0002 1KOREA SPEC

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-51010iGXE10199901-200107

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-51010iGXE10199901-200107

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-53010iGXE10199901-200105

sub57101-53011

main57101-53011iGXE10200107

main57101-53030iGXE10..LHD..ATM200011-200102

KOREA SPEC

sub57101-53031

main57101-53031iGXE10..LHD..ATM200102-200107

KOREA SPEC

main57101-53050iJCE10200107

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-53010iGXE10199901-200105

sub57102-53012

main57102-53012iGXE10,JCE10200107

main57102-53020iGXE10..LHD..ATM200011-200102

KOREA SPEC

sub57102-53021

main57102-53021iGXE10..LHD..ATM200102-200107

KOREA SPEC

57111MEMBER, FRONT SIDE, RH

main57111-53010iGXE10199901-200012

sub57111-53011

main57111-53011iGXE10200012-200404

sub57111-53012

main57111-53012iGXE10200404

main57111-53030iGXE10..LHD..ATM200011-200404

KOREA SPEC

sub57111-53031

main57111-53031iGXE10..LHD..ATM200404

KOREA SPEC

main57111-53050iJCE10200107-200404

sub57111-53051

main57111-53051iJCE10200404

57112MEMBER, FRONT SIDE, LH

main57112-53010iGXE10199901-200404

sub57112-53011

main57112-53011iGXE10,JCE10200404

main57112-53020iGXE10..LHD..ATM200011-200404

KOREA SPEC

sub57112-53021

main57112-53021iGXE10..LHD..ATM200404

KOREA SPEC

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-53010iGXE10,JCE10199901-200107

main57113-53020iGXE10..LHD..ATM200011-200107

KOREA SPEC

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-53010iGXE10199901-200107

main57114-53020iGXE10..LHD..ATM200011-200107

KOREA SPEC

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-53010iGXE10,JCE10199901-200107

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-53010iGXE10199901-200105

sub57116-53020

main57116-53020iGXE10..LHD..ATM200011-200107

KOREA SPEC

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main52011-53010iGXE10..LHD..ATM200011-200401

KOREA SPEC

main57117-53010iGXE10199901-200107

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main52012-53010iGXE10..LHD..ATM200011-200401

KOREA SPEC

main57118-53010iGXE10199901-200107

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-22060iGXE10199901-200107

57119CPLATE, FRONT SIDE MEMBER, FRONT

main57119-22060iGXE10199901-200107

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-51010iGXE10..RHD199901-200107

main57103-53020iGXE10..LHD199901-200107

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-53010iGXE10199901-200404

sub57181-53011

main57181-53011iGXE10,JCE10200404

57182BPLATE, FRONT SIDE MEMBER, NO.3 LH

main57181-53010iGXE10199901-200404

sub57181-53011

main57181-53011iGXE10,JCE10200404

57197BOX, TORQUE, FRONT RH

main57197-51010iGXE10199901-200107

57198BOX, TORQUE, FRONT LH

main57198-51010iGXE10199901-200107

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-30110iGXE10199901-200107

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-30020iGXE10200005-200107

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-30021iGXE10200005-200107

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-53010iGXE10199901-200107

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-53010iGXE10199901-200107

57413DEXTENSION, FLOOR SIDE, INNER RH

main57413-51010iGXE10,JCE10199901-200107

57414DEXTENSION, FLOOR SIDE, INNER LH

main57414-51010iGXE10,JCE10199901-200107

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-53010iGXE10,JCE10..WG200107

main57462-53010iGXE10199901-200105

sub57462-53030

main57462-53030iGXE10,JCE10..SED200107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-53901iGXE10199901-200005

sub57601-53904

sub90119-08516

main57601-53902iGXE10..LHD..ATM200104-200107

KOREA SPEC

sub57601-53906

main57601-53904iGXE10200005-200107

main57601-53905iGXE10,JCE10..WG200107

main57601-53906iGXE10..LHD..ATM200107

KOREA SPEC

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-53901iGXE10199901-200005

sub57602-53904

sub90119-08516

main57602-53904iGXE10200005-200109

sub57602-53907

main57602-53905iGXE10..LHD..ATM200009-200107

KOREA SPEC

sub57602-53909

main57602-53907iJCE10..SED200107-200507

W(DISCHARGE HEADLAMP)

main57602-53908iGXE10,JCE10..WG200107-200507

main57602-53909iGXE10..LHD..ATM200107-200507

KOREA SPEC & W(DISCHARGE HEADLAMP)

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-53010iGXE10,JCE10..WG200107

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-53900iGXE10199901-200004

sub57615-53904

main57615-53902iGXE10..LHD..ATM200104-200107

KOREA SPEC

sub57615-53906

main57615-53904iGXE10,JCE10..SED200004-200107

main57615-53905iGXE10,JCE10..WG200107

main57615-53906iGXE10..LHD..ATM200107-200401

KOREA SPEC

sub57615-53905

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-53900iGXE10199901-200107

main57616-53901iGXE10,JCE10..SED200107

main57616-53902iGXE10..LHD..ATM200009-200107

KOREA SPEC

sub57616-53904

main57616-53903iGXE10,JCE10..WG200107

KOREA SPEC

57642AREINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH

main57642-53010iGXE10200005-200101

main57642-53011iGXE10200101-200107

5801

58271CREINFORCEMENT, BELT ANCHOR TO FROOR PAN, NO.3

main58271-53020iGXE10,JCE10200107

58366BBRACKET, FUEL TANK SUPPORT, LH

main58366-30050iGXE10200005-200107

5870714010PLUG SET, HOLE

main58707-14010

9011908516

main90119-08516

9011912166

main90119-12166

9018906150

main90189-06150

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9033335001

main90333-35001

9095001259

main90950-01259

9095001630

main90950-01630

9095001668

main90950-01668

9095001710

main90950-01710

9095001759

main90950-01759

9095001762

main90950-01762

9095001842

main90950-01842

9095006108

main90950-06108

9151180816

main91511-80816

91655B1040

main91655-B1040

55 parts on this diagram · 2 diagrams in section
