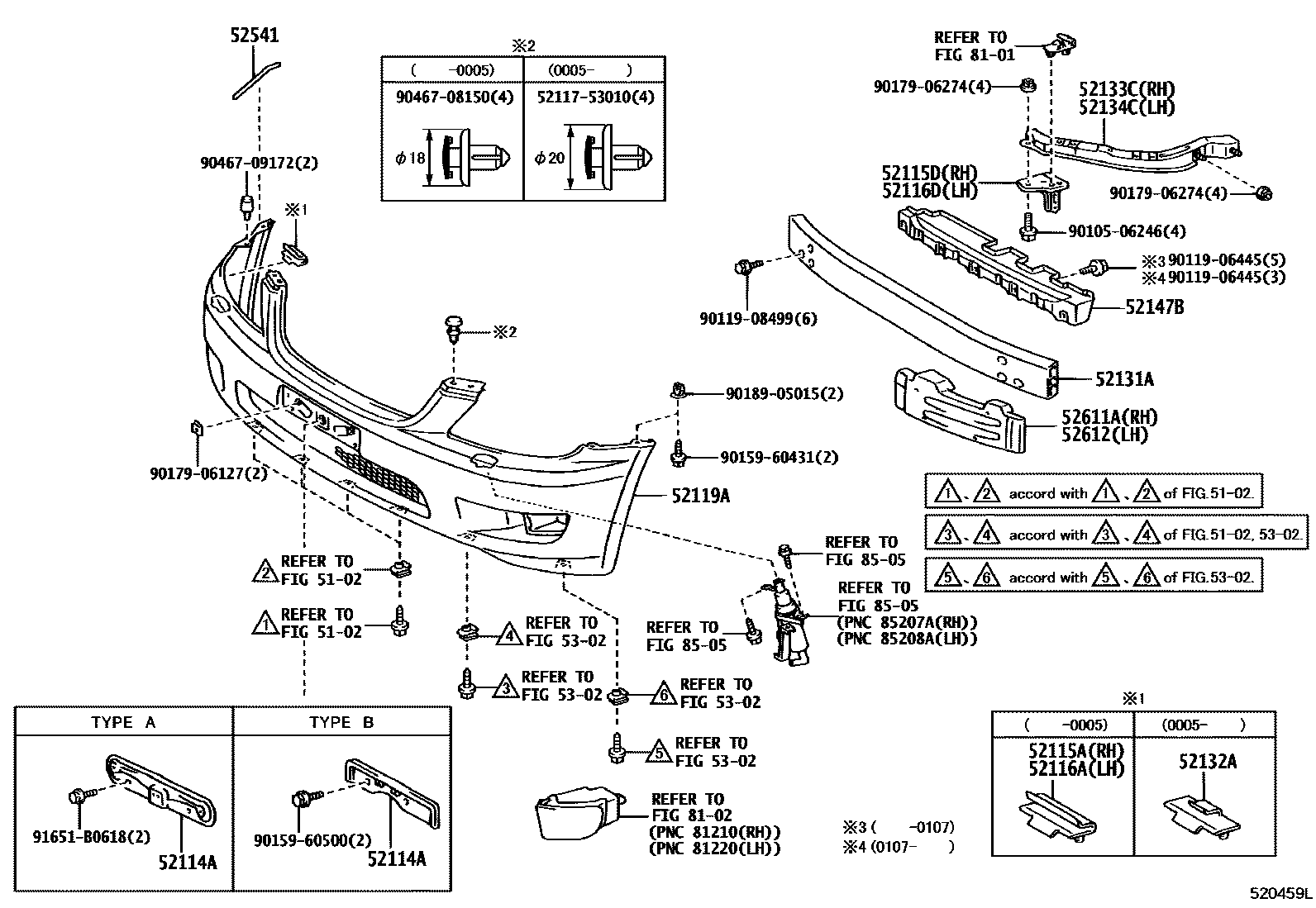

FRONT BUMPER & BUMPER STAY

0001 1 0002 1KOREA SPEC 0003 1

5102

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-50010iGXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM199901-200107

TYPE A:REFER TO ILLUSTRATION

main52114-53010iGXE10,JCE10..SED199901-200107

TYPE B:REFER TO ILLUSTRATION

main52114-53020iGXE10..LHD..ATM200011-200107

KOREA SPEC

main52114-53040iGXE10,JCE10..WG200107

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14130iGXE10199901-200107

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-53010iGXE10,JCE10199901-200107

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14130iGXE10199901-200005

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52116-53010iGXE10199901-200107

52119ACOVER, FRONT BUMPER

main52119-53900iGXE10..SED..EUR199901-200107

NEW ZEALAND OR HONG KONG OR SINGAPORE OR BRUNEI SPEC

main52119-53901iGXE10..SED..EUR200107

NEW ZEALAND OR HONG KONG OR SINGAPORE OR BRUNEI SPEC

main52119-53901iGXE10..ARL199901-200107

W(HEADLAMP CLEANER)

main52119-53901iGXE10..ARL200107

NEW ZEALAND OR HONG KONG SPEC & W(HEADLAMP CLEANER)

main52119-53902iGXE10..LHD..ATM199901-200107

TAIWAN SPEC

main52119-53903iGXE10..LHD..ATM200011-200107

KOREA SPEC

main52119-53904iGXE10..LHD..ATM200107

KOREA SPEC & W(HEADLAMP CLEANER)

main52119-53905iJCE10..ARL200107

TAIWAN SPEC & W(HEADLAMP CLEANER)

main52119-53905iGXE10..ARL200107

W(HEADLAMP CLEANER)

main52119-53905iGXE10..ARL200107

TAIWAN SPEC

main52119-53906iJCE10..WG200107

main52119-53909iGXE10..WG200208

main52119-53910iGXE10..WG200208

W(HEADLAMP CLEANER)

52131AREINFORCEMENT, FRONT BUMPER

main52131-53010iGXE10,JCE10199901-200107

main52131-53020iGXE10..LHD..ATM200011-200107

KOREA SPEC

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-53010iGXE10200005-200107

52133CREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-53010iGXE10199901-200107

52134CREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-53010iGXE10,JCE10199901-200107

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-53010iGXE10..ATM..EUR199901-200107

52541PROTECTOR, FRONT BUMPER

main52541-51010iGXE10199901-200107

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53020iGXE10..LHD..ATM200011-200107

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52611-53010iGXE10199901-200107

main52611-53030iGXE10,JCE10..WG200107

52612ABSORBER, FRONT BUMPER ENERGY, LH

main52612-53010iGXE10199901-200107

main52612-53020iGXE10,JCE10..WG200107

5302

8101

8102

8505

5211753010MOULDING, BUMPER SIDE, RH

main52117-53010

9010506246

main90105-06246

9011906445

main90119-06445

9011908499

main90119-08499

9015960431

main90159-60431

9015960500

main90159-60500

9017906127

main90179-06127

9017906274

main90179-06274

9018905015

main90189-05015

9046708150

main90467-08150

9046709172

main90467-09172

91651B0618

main91651-B0618

32 parts on this diagram · 3 diagrams in section
