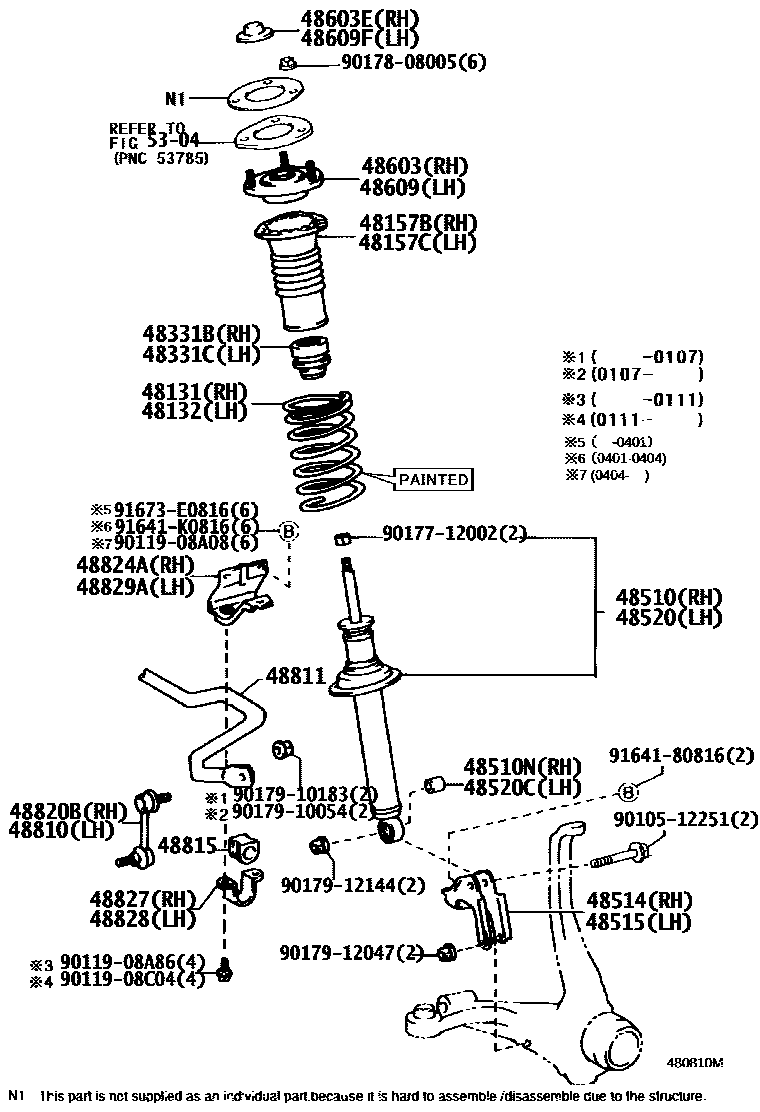

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=319.5
PAINTED=RED
L=323
PAINTED=YELLOW
PAINTED=LIGHT BLUE
PAINTED=GREEN
L=333.5
PAINTED=GREEN
PAINTED=LIGHT GREEN
PAINTED=PURPLE
48132SPRING, FRONT COIL, LH
PAINTED=RED
L=319.5
PAINTED=YELLOW
L=323
PAINTED=LIGHT BLUE
L=333.5
PAINTED=GREEN
PAINTED=GREEN
PAINTED=LIGHT GREEN
PAINTED=PURPLE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-53080
MARK 48510-53020
MARK 48510-53041
MARK 48510-53011
MARK 48510-53071
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
W(DISCHARGE HEADLAMP)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-53080
MARK 48510-53020
MARK 48510-53041
MARK 48510-53011
MARK 48510-53071
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
OD=26.5
OD=27.2
OD=26.0
48815BUSH, FRONT STABILIZER BAR, NO.1
ID=26
ID=26.5
ID=27.2
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
5304
9010512251
main90105-12251
9011908A08
main90119-08A08
9011908A86
main90119-08A86
9011908C04
main90119-08C04
9017712002
main90177-12002
9017808005
main90178-08005
9017910054
main90179-10054
9017910183
main90179-10183
9017912047
main90179-12047
9017912144
main90179-12144
9164180816
main91641-80816
91641K0816
main91641-K0816
91673E0816
main91673-E0816
38 parts on this diagram · 1 diagram in section
