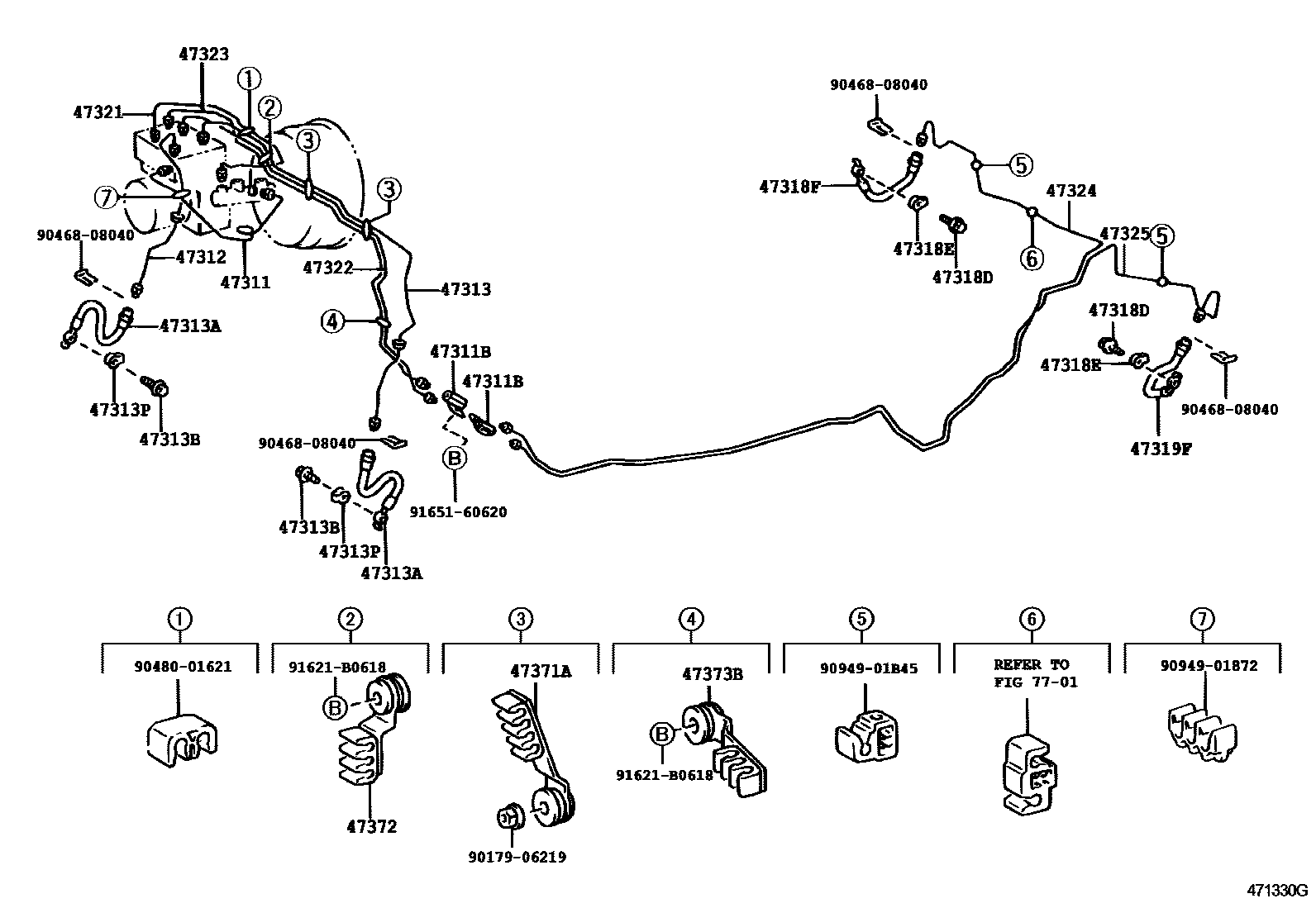

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

47311TUBE, FRONT BRAKE, NO.1

main47311-53040iGXE10..RHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47311-53041iGXE10..RHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47311-53050iGXE10..LHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47311-53051iGXE10..LHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47311-53070iGXE10..LHD200107

main47311-53090iGXE10,JCE10..RHD200107

main47311-53100iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47311-53110iJCE10..LHD200107

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10144×2iGXE10..SED200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90412-10644×2iGXE10199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47312TUBE, FRONT BRAKE, NO.2

main47312-53020iGXE10..RHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47312-53021iGXE10..RHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47312-53030iGXE10..LHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47312-53031iGXE10..LHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47312-53050iGXE10..LHD200107

main47312-53080iGXE10,JCE10..RHD200107

main47312-53090iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47312-53110iJCE10..LHD200107

47313TUBE, FRONT BRAKE, NO.3

main47313-53020iGXE10..RHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47313-53021iGXE10..RHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47313-53030iGXE10..LHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47313-53031iGXE10..LHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47313-53050iGXE10..LHD200107

main47313-53080iGXE10,JCE10..RHD200107

main47313-53090iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47313-53110iJCE10..LHD200107

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A30×2iGXE10,JCE10200406-200507

main90947-02A41×2iGXE10199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C28×2iGXE10..SED200107-200405

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGXE10199901-200107

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iGXE10199901-200107

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGXE10199901-200107

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGXE10199901-200107

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A29iGXE10,JCE10200406-200507

main90947-02A42iGXE10199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C29iGXE10200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A29iGXE10,JCE10200406-200507

main90947-02A42iGXE10199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main90947-02C29iGXE10..SED200107-200405

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

47321TUBE, REAR BRAKE, NO.1

main47321-53020iGXE10..RHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-53021iGXE10..RHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-53030iGXE10..LHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-53031iGXE10..LHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47321-53050iGXE10..LHD200107

main47321-53070iGXE10,JCE10..RHD200107

main47321-53080iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47321-53090iJCE10..LHD200107

47322TUBE, REAR BRAKE, NO.2

main47322-53040iGXE10..RHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-53041iGXE10..RHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-53050iGXE10..LHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-53051iGXE10..LHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47322-53070iGXE10..LHD200107

main47322-53090iGXE10,JCE10..RHD200107

main47322-53100iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47322-53110iJCE10..LHD200107

47323TUBE, REAR BRAKE, NO.3

main47323-53020iGXE10..RHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-53021iGXE10..RHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-53030iGXE10..LHD199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-53031iGXE10..LHD200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47323-53050iGXE10..LHD200107

main47323-53070iGXE10,JCE10..RHD200107

main47323-53080iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47323-53090iJCE10..LHD200107

47324TUBE, REAR BRAKE, NO.4

main47324-53040iGXE10199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47324-53041iGXE10200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47324-53060iGXE10,JCE10200107

47325TUBE, REAR BRAKE, NO.5

main47325-53020iGXE10199901-200005

S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47325-53021iGXE10200005-200107

D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3

main47325-53040iGXE10,JCE10200107

47371ACLAMP, BRAKE TUBE, NO.1

main47371-53020iGXE10..LHD199901-200107

main47371-53040×2iGXE10,JCE10..RHD200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,NO.1

main47371-53070iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,NO.2

47372CLAMP, BRAKE TUBE, NO.2

main47371-53030×2iGXE10..LHD200107

main47371-53050iGXE10..RHD199901-200107

main90949-01C37iJCE10..LHD200107

47373BCLAMP, BRAKE TUBE, NO.3

main47371-53010iGXE10199901-200107

main47371-53080iJCE10..LHD200107

7701

9017906219

main90179-06219

9046808040

main90468-08040

9048001621

main90480-01621

9094901872

main90949-01872

9094901B45

main90949-01B45

91621B0618

main91621-B0618

9165160620

main91651-60620

27 parts on this diagram · 12 diagrams in section
