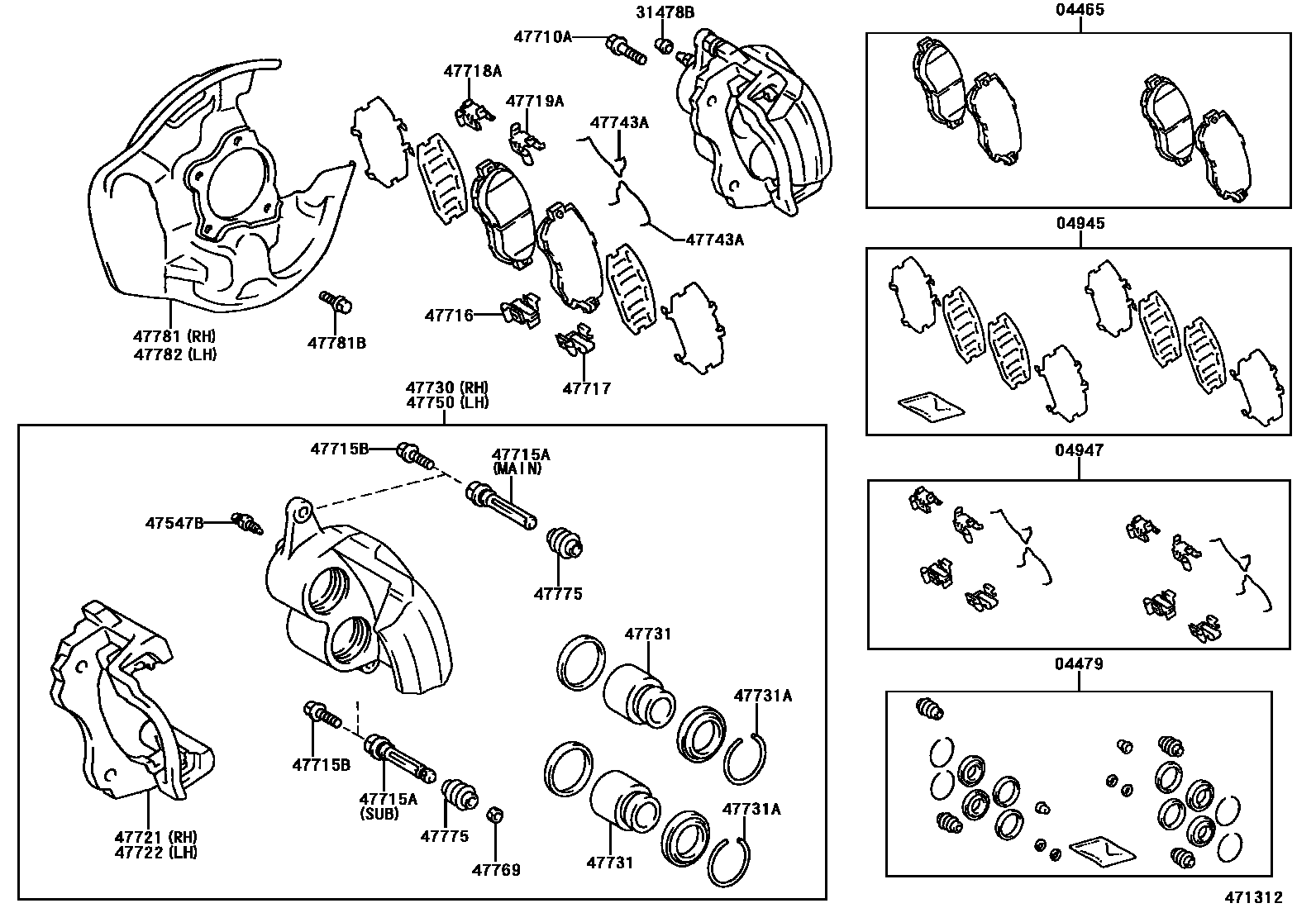

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-22311iJCE10..ARL;JCE10..LHD..SED200107-200212

MARK NBK PN529H

main04465-22312iGXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM200212-200507

MARK NBK PN529AH

main04465-30271iGXE10..EUR199901-200001

MARK NBK PN532H

main04465-30272iGXE10,JCE10200212-200507

MARK TEXTAR T4146

main04465-30320iGXE10,JCE10200107-200212

MARK NBK PN532H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30190iGXE10199901-200101

main04479-30191iGXE10200101-200107

sub04478-30240

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30110iGXE10..ARL;GXE10..LHD..ATM199901-199903

TAIWAN SPEC

main04945-30120iGXE10,JCE10200212-200508

main04945-30130iGXE10..EUR199901-200001

main04945-30140iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30090iGXE10199901-200107

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGXE10199901-200107

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iGXE10199901-200107

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228×4iGXE10199901-200107

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070×2iGXE10,JCE10200107

SUB

main47715-30060×2iGXE10199901-200107

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iGXE10,JCE10200107-200507

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010×2iGXE10,JCE10200107

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020×2iGXE10,JCE10200107

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30070×2iGXE10,JCE10200107

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30080×2iGXE10199901-200107

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22200iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47721-53010iGXE10200001-200107

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22160iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47722-53010iGXE10,JCE10200107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-53010iGXE10..RHD;GXE10..LHD..MTM199912-200001

main47730-53030iGXE10200001-200107

47731PISTON, FRONT DISC BRAKE

main47731-30170×4iGXE10,JCE10200107-200507

sub47731-30140

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006×4iGXE10..ARL200001-200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020×4iGXE10,JCE10200107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-53010iJCE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47750-53030iGXE10200001-200107

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iGXE10199901-200107

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iGXE10199901-200107

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22152iGXE10,JCE10200107-200507

TYPE B

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028×8iGXE10199901-200107

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22152iGXE10199901-200107

25 parts on this diagram · 1 diagram in section
