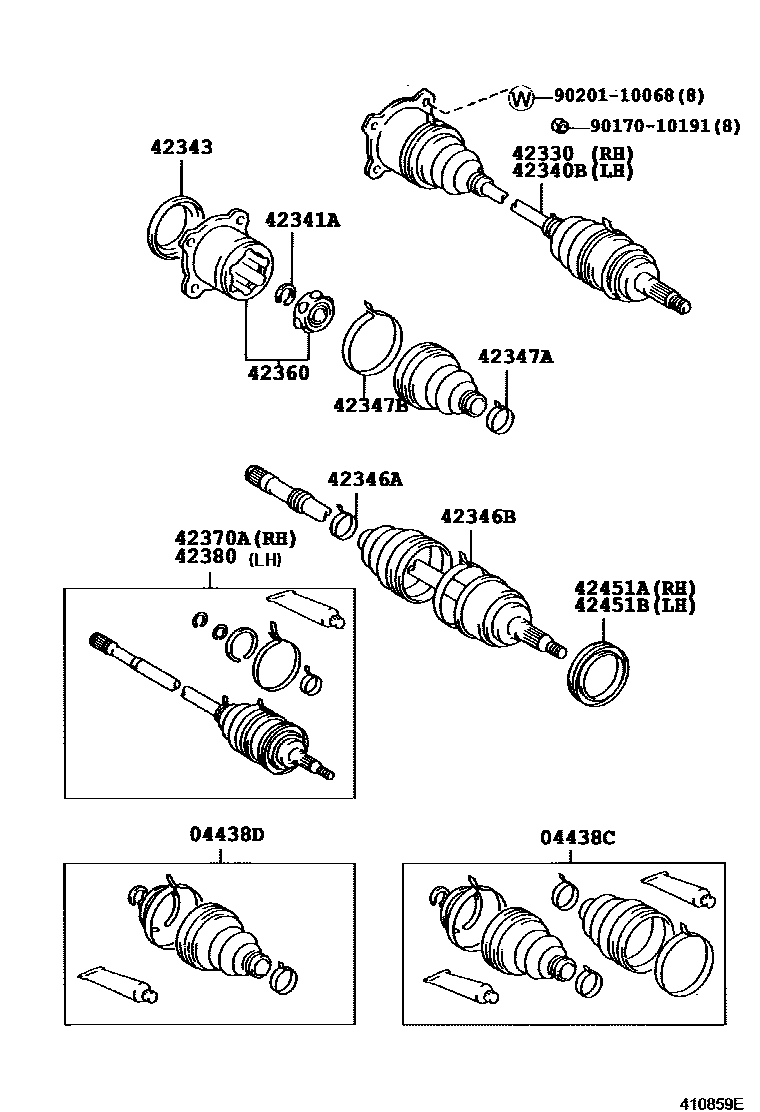

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-22120iGXE10..ATM..ARL¥12,600199901-200001

main04437-30060iJCE10¥12,400200107

sub04429-30040¥12,400

main04437-53020iGXE10..EUR;GXE10..MTM..ARL¥10,800199901-199906

sub04437-53023

main04437-53021iGXE10¥10,800199906-200107

sub04437-53022¥10,800

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-22090iGXE10..ATM..ARL¥6,700199901-200001

main04437-28021iGXE10..EUR;GXE10..MTM..ARL¥6,700199908-200107

sub04439-26020¥6,700

main04437-30050iJCE10¥8,400200107

sub04439-30030¥8,400

main04437-53010iGXE10..EUR;GXE10..MTM..ARL¥6,700199901-199906

sub04437-28020¥6,700

main04437-53011iGXE10..EUR;GXE10..MTM..ARL¥6,700199906-199908

sub04437-28021¥6,700

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22070iGXE10..ATM..ARL¥62,000199901-200001

main42330-30120iJCE10¥59,200200107

main42330-53010iGXE10..EUR;GXE10..MTM..ARL¥61,800199901-200107

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22150iGXE10..ATM..ARL¥59,200199901-200001

main42340-30120iJCE10¥59,200200107

main42340-53010iGXE10..EUR;GXE10..MTM..ARL¥59,200199901-200107

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024iGXE10..ATM..ARL¥170199901-200001

main90520-26028iGXE10¥110199901-200107

42343COVER, OUTBOARD JOINT END

main42343-14010iGXE10..ATM..ARL¥770199901-200001

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010iGXE10¥700199901-200107

ID=35.75

main42345-30080iJCE10¥370200107

ID=36.1

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-30070iJCE10¥460200107

main90949-01339iGXE10..EUR;GXE10..MTM..ARL¥350199901-200107

main90949-01473iGXE10..ATM..ARL¥260199901-200001

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010iGXE10¥700199901-200107

ID=35.75

main42345-30080iJCE10¥370200107

ID=36.1

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020iGXE10..ATM..ARL¥630199901-200001

main42345-30010iGXE10¥970199901-200107

main42345-30070iJCE10¥460200107

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-22040iGXE10..ATM..ARL¥19,900199901-200001

main42360-30012iGXE10..EUR;GXE10..MTM..ARL¥16,100199901-199906

sub42360-30040¥17,800

main42360-30040iGXE10¥17,800199906-200107

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29195iGXE10..ATM..ARL¥45,800199901-200001

sub42370-29665¥45,800

main42370-39135iJCE10¥48,900200107

sub42370-39235¥48,900

main42370-59055iGXE10..EUR;GXE10..MTM..ARL¥46,700199901-199906

sub42370-59056¥46,700

main42370-59056iGXE10¥46,700199906-200107

sub42370-59057¥46,700

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-29095iGXE10..ATM..ARL¥44,300199901-200001

sub42380-29215¥44,300

main42380-39055iJCE10¥47,200200107

sub42380-39145¥47,200

main42380-59055iGXE10..EUR;GXE10..MTM..ARL¥45,100199901-199906

sub42380-59056¥45,200

main42380-59056iGXE10¥45,200199906-200107

sub42380-59057¥45,200

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42453-50010iGXE10¥690199901-200107

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42453-50010iGXE10¥690199901-200107

9017010191

main90170-10191¥110

9020110068

main90201-10068¥90

17 parts on this diagram · 3 diagrams in section
