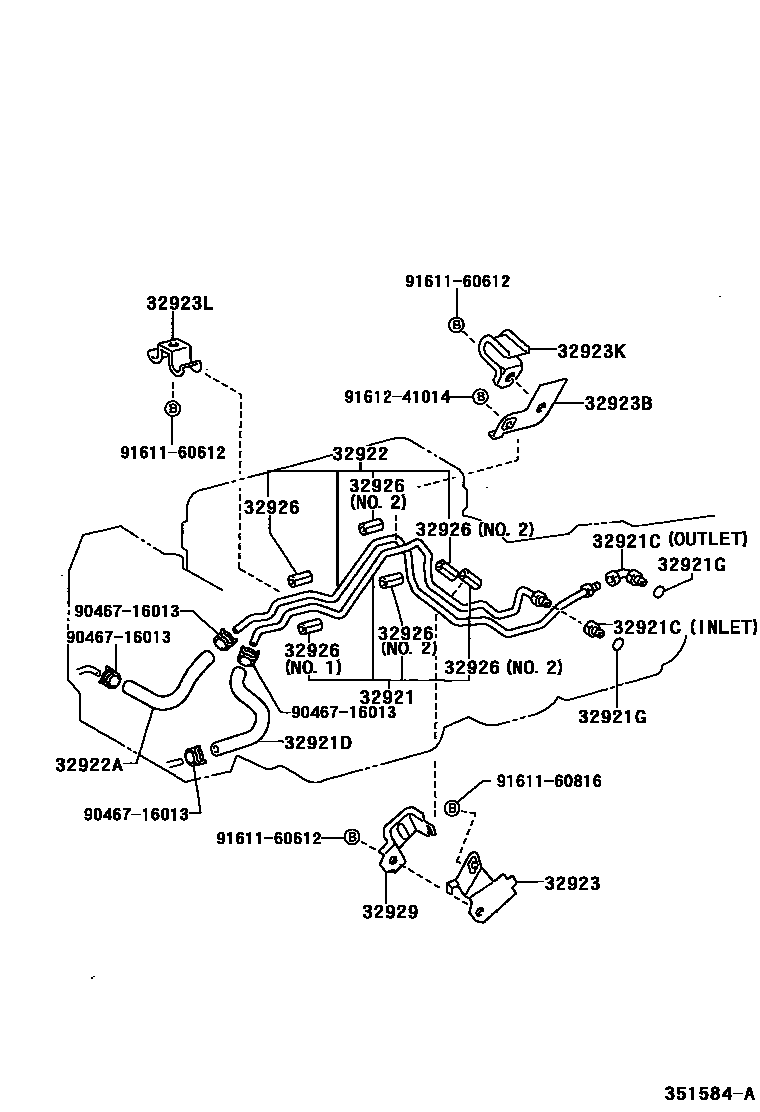

OIL COOLER & TUBE (ATM)

0001 1A47DE 0002 1W(TOWING PACKAGE) A47DE 0003 1A650E

32921TUBE, OIL COOLER INLET, NO.1

main32921-53030iGXE10..ATM199901-200107

main32921-53080iJCE10200107-200507

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iGXE10..ATM199901-200107

INLET

main90404-16029iJCE10200107

INLET

main90407-16009iJCE10200107

OUTLET

main90407-16010iGXE10..ATM200107

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-17069iJCE10200107-200507

main90445-17128iGXE10..ATM199901-200107

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGXE10..ATM199901-200107

main90301-11006×2iJCE10200107

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-53030iGXE10..ATM200107-200507

main32922-53060iJCE10200107-200507

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17069iGXE10..ATM199901-200107

main90445-17096iJCE10200107-200507

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-53010iGXE10..ATM199901-200107

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32924-53020iGXE10..ATM199901-200107

main32929-30150iJCE10200107

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32923-30220iJCE10200107

main90949-01B85iGXE10..ATM199901-200107

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main90462-12074iGXE10..ATM200107

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iGXE10..ATM199901-200107

L=35,ID=10,NO.1

main32926-30030×4iGXE10..ATM200107-200507

L=35,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-24070iGXE10..ATM199901-200107

9046716013

main90467-16013

9161160612

main91611-60612

9161160816

main91611-60816

9161241014

main91612-41014

16 parts on this diagram · 3 diagrams in section
