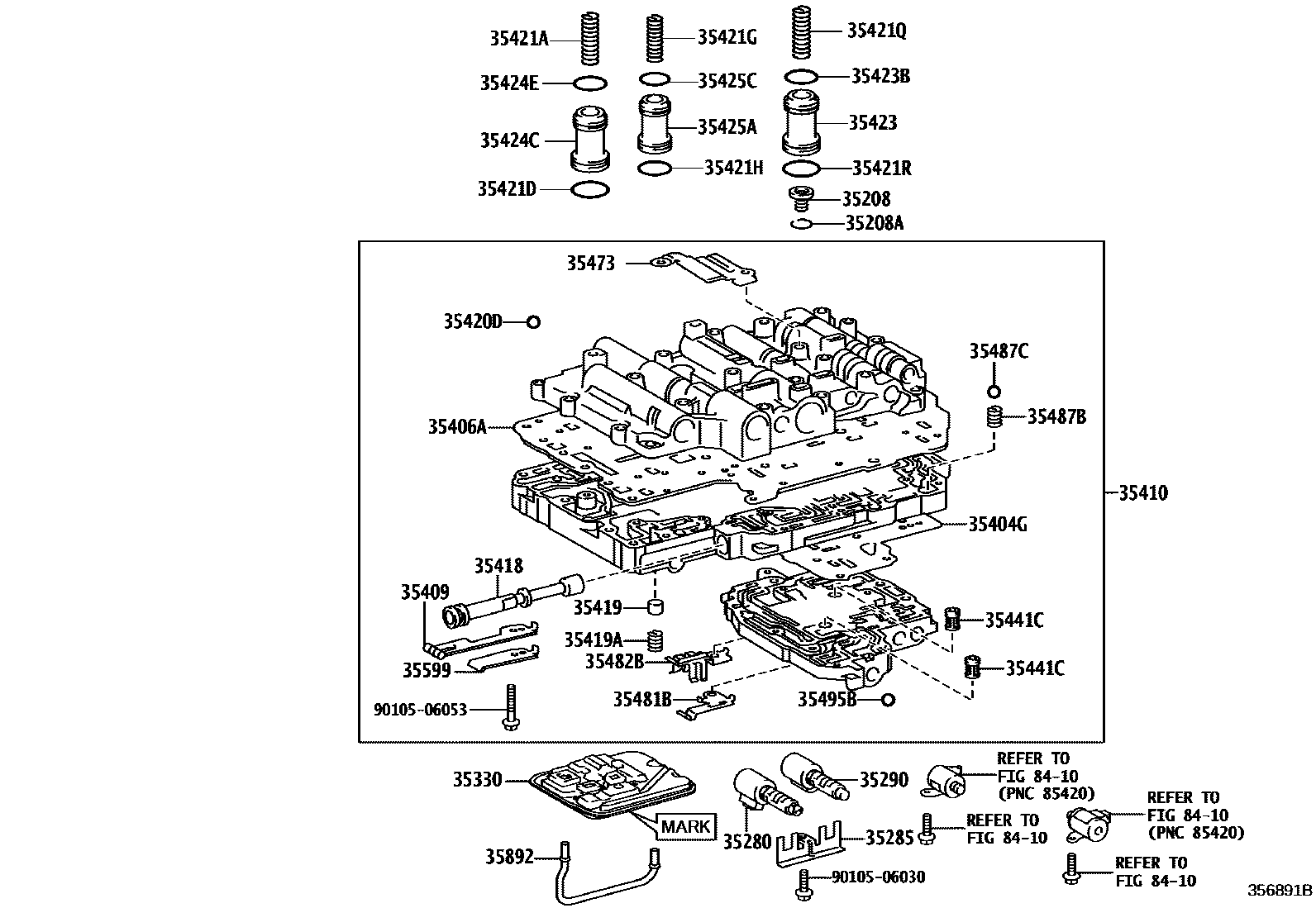

VALVE BODY & OIL STRAINER (ATM)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35280SOLENOID ASSY, LOCK UP CONTROL
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
MARK A:REFER ILLUST.
MARK B:REFER ILLUST.
35404GPLATE SUB-ASSY, VALVE BODY, NO.2
35406APLATE SUB-ASSY, VALVE BODY
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420DBALL (FOR LOWER VALVE BODY)
OD=6.35,RUBBER
35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
35421DRING (FOR ACCUMULATOR PISTON NO.1)
35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
35421HRING (FOR ACCUMULATOR PISTON NO.2)
35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)
35421RRING (FOR ACCUMULATOR PISTON NO.3)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
LOWER
35424CPISTON, C-1 ACCUMULATOR
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
35441CSTRAINER, SOLENOID OIL
35473COVER, TRANSMISSION VALVE BODY
35481BCLAMP, VALVE BODY WIRE HARNESS
35482BCLAMP, TEMPERATURE SENSOR
35487BBALL, CHECK, NO.4
35487CSPRING, COMPRESSION (FOR CHECK BALL)
35495BBALL, CHECK, NO.1
35599COVER, MANUAL DETENT SPRING
35892TUBE, OVERDRIVE BRAKE
8410
9010506030
main90105-06030
9010506053
main90105-06053
38 parts on this diagram · 6 diagrams in section
