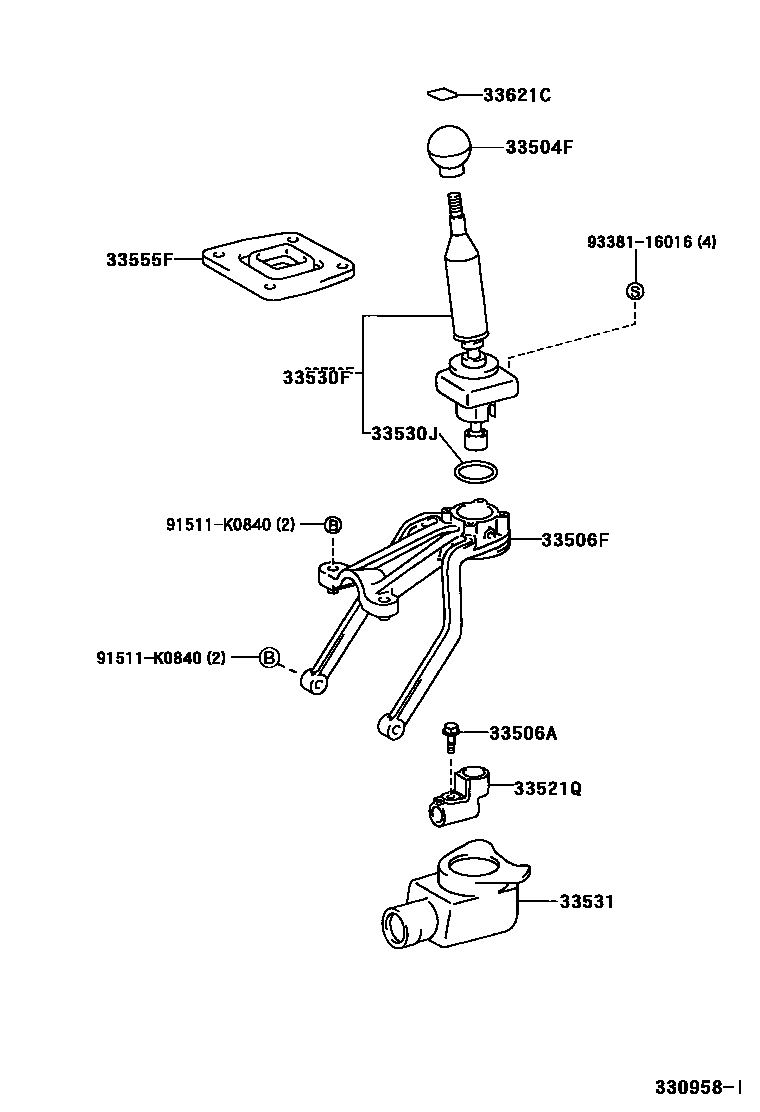

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-53011iGXE10..MTM199901-200107

METALLIC

main33504-53020iGXE10,JCE10..ATM199901-200107

main33504-53030iGXE10..MTM200107

LEATHER

main33504-53060-C0iGXE10,JCE10..ATM200107

BLACK,TRIM0#,2#

main33542-22250-C1iGXE10..ATM199901-200107

LEATHER,BLACK,TRIM0#,2#

sub33542-22250

33506ABOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90105-08079iGXE10..MTM199901-200507

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-53010iGXE10..MTM199901-200208

main33506-53011iGXE10..MTM200208-200507

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-53020iGXE10..MTM199901-200507

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-53011iGXE10..RHD..MTM199901-200507

main33530-53021iGXE10..LHD..MTM199901-200507

33530JRING, O (FOR SHIFT LEVER)

main96711-19033iGXE10..MTM199901-200507

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-53020iGXE10..MTM199901-200507

33555FBOOT, SHIFT & SELECT LEVER, NO.2

main33555-53030iGXE10..MTM199901-200107

33621CLABEL, CONTROL LEVER INFORMATION

main33621-53010iGXE10..MTM199901-200107

sub33621-53030

91511K0840

main91511-K0840

9338116016

main93381-16016

11 parts on this diagram · 4 diagrams in section
